Easy, fast, profitable and compact

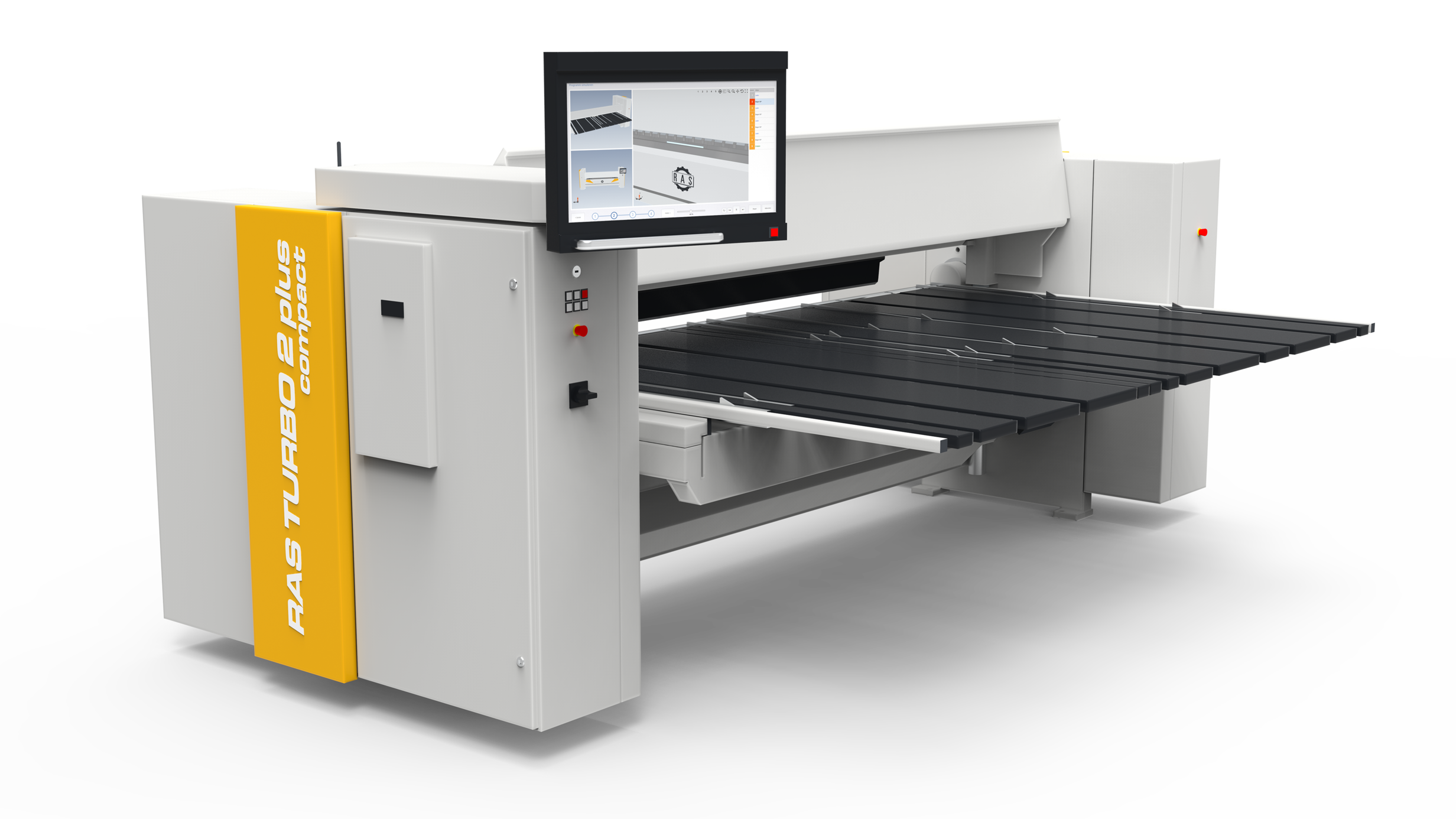

TURBO2plus Compact – proven technology in a compact design
The new TURBO2plus Compact replaces the previous TURBO2plus and combines its powerful technology with a significantly more space-saving machine design.

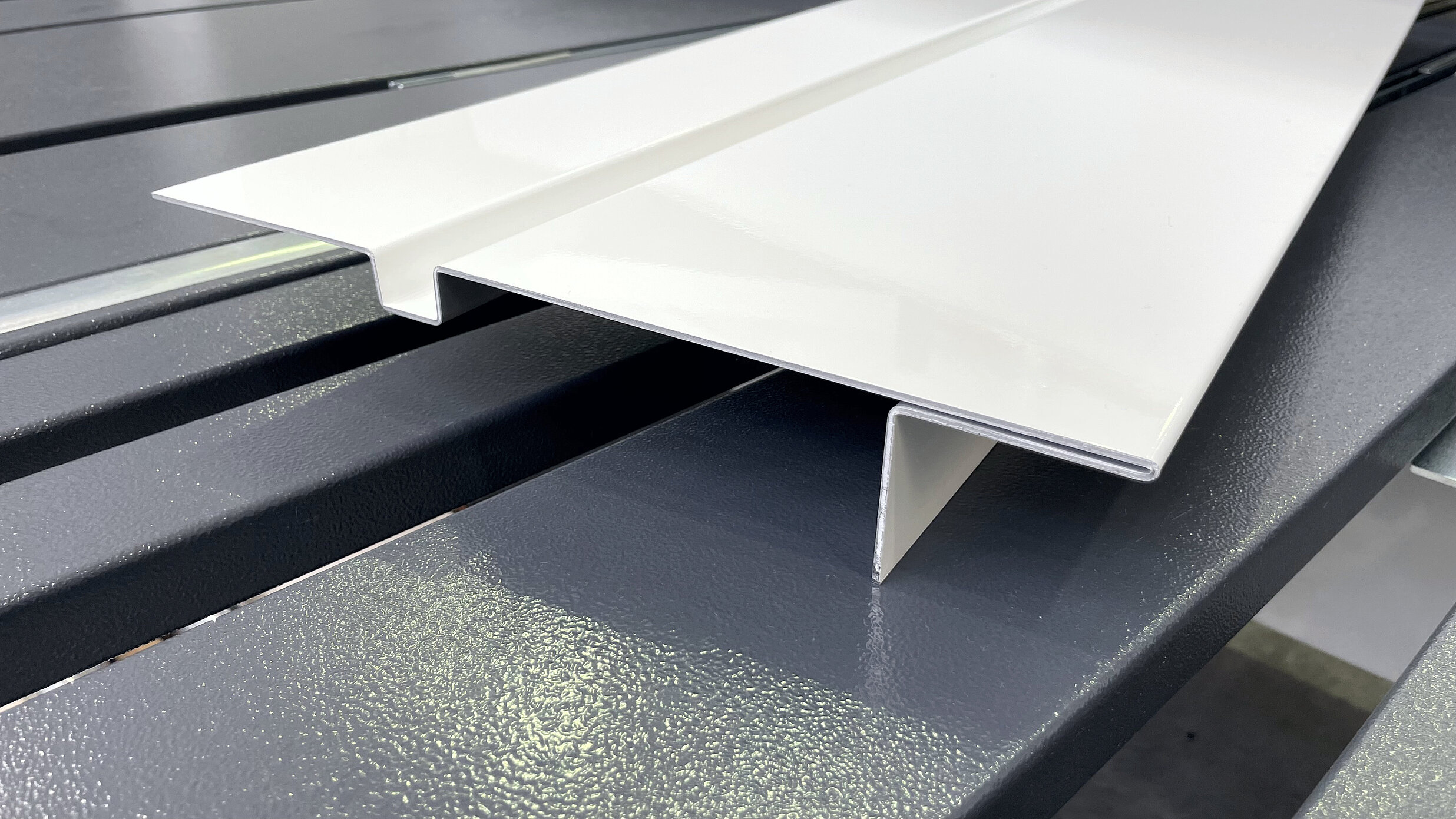

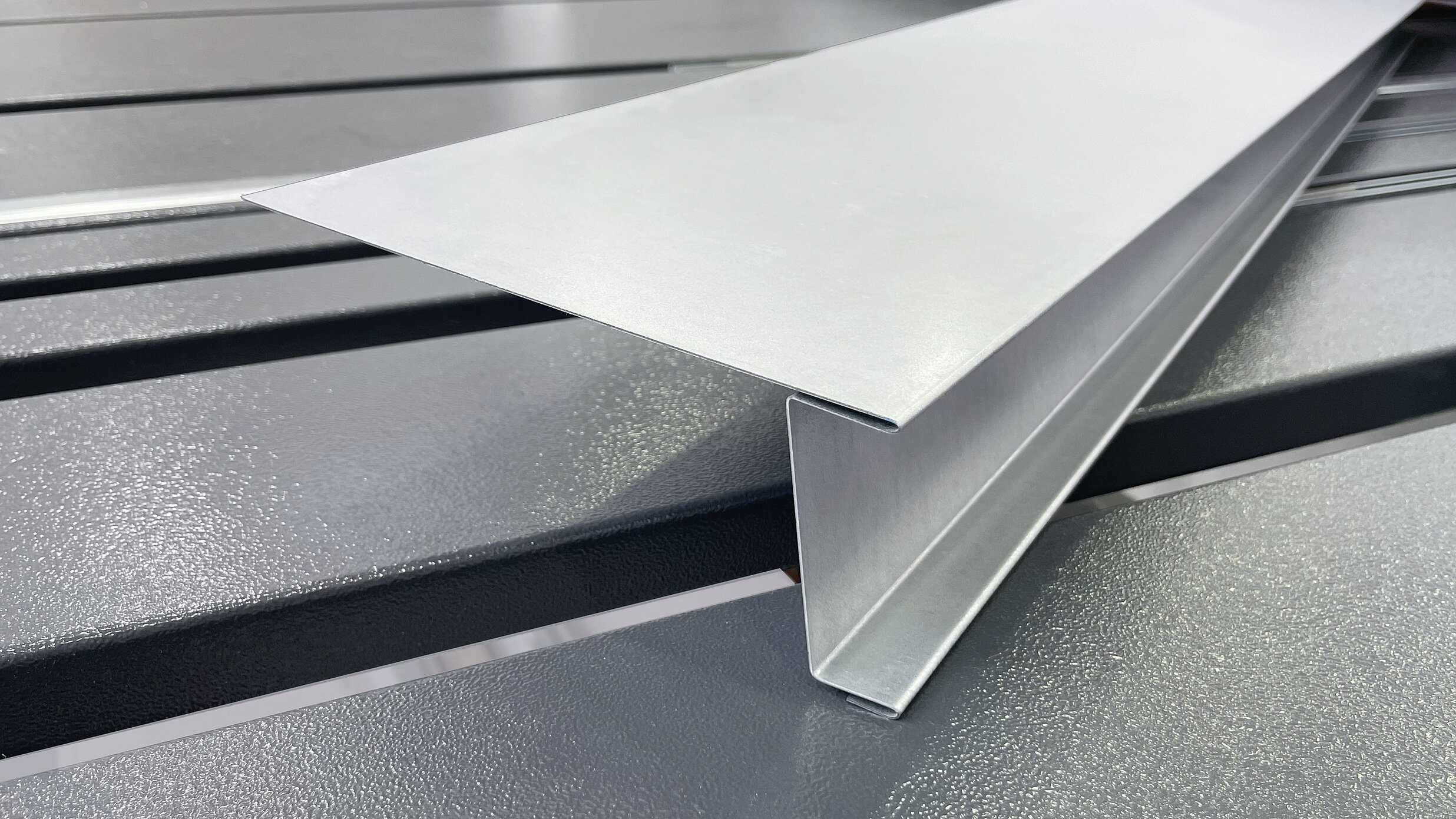

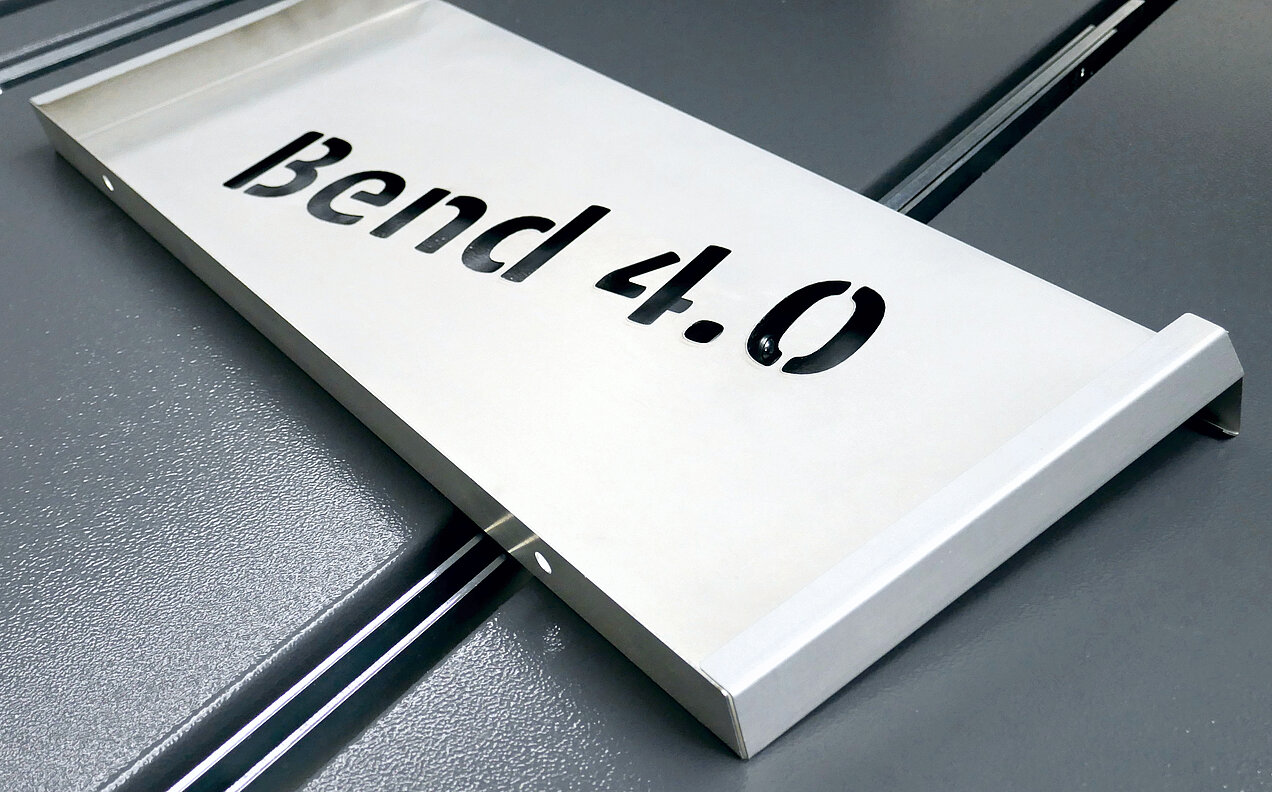

Whether for roof and façade profiles, advertising panels or enclosures – this machine takes bending to the next level. The intelligent Bendex software automatically programs parts, evaluates alternative bending strategies and visualizes the entire bending sequence in 3D. Expert knowledge built into the control system.
Thanks to its reduced overall height, the TURBO2plus Compact can be integrated flexibly into a wide range of production environments. It is especially suited for small businesses and workshops that need to operate efficiently and powerfully despite limited space.
Machine highlights
- Compact design with reduced overall height and full performance
- Automatic bending program creation with Bendex software
- Optional control via Bendex or OpenEditor
- Ergonomic operation from both sides of the machine
- Tool change recognition and expandability for complex bending parts
- For sheet thicknesses up to 2.5 mm
Upper beam

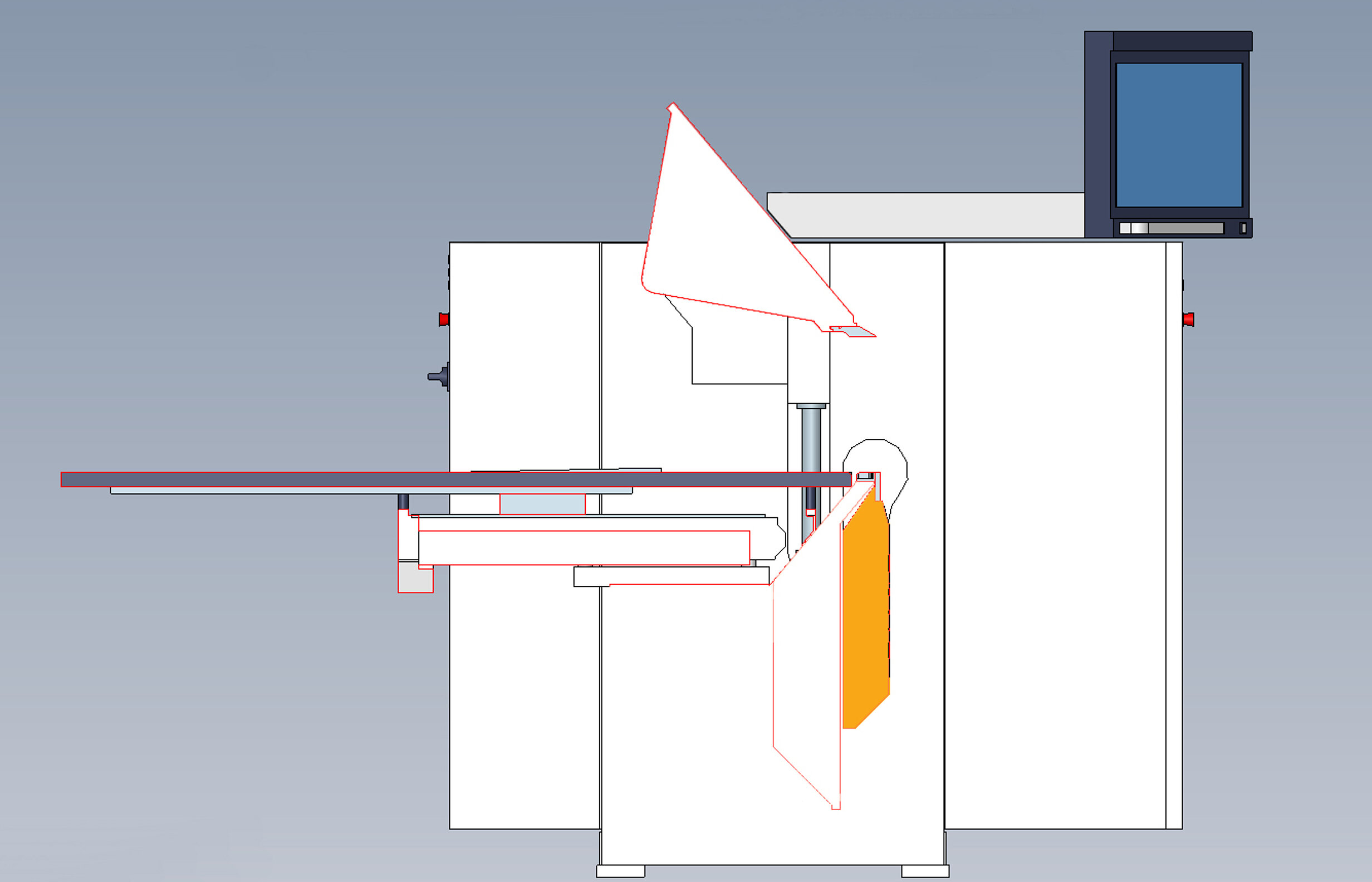

The upper beam opens and closes with inpressive speed. As the open and close position is programmable, you can create open or closed hems, thus making your parts unique and versatile. The upper beam shape offers large free space in front and behind of the beam.
- Fast movements for closing/opening
- Hemming: closed, open, tear-drop hems
- Large free space in front of the upper beam (part design flexibility)

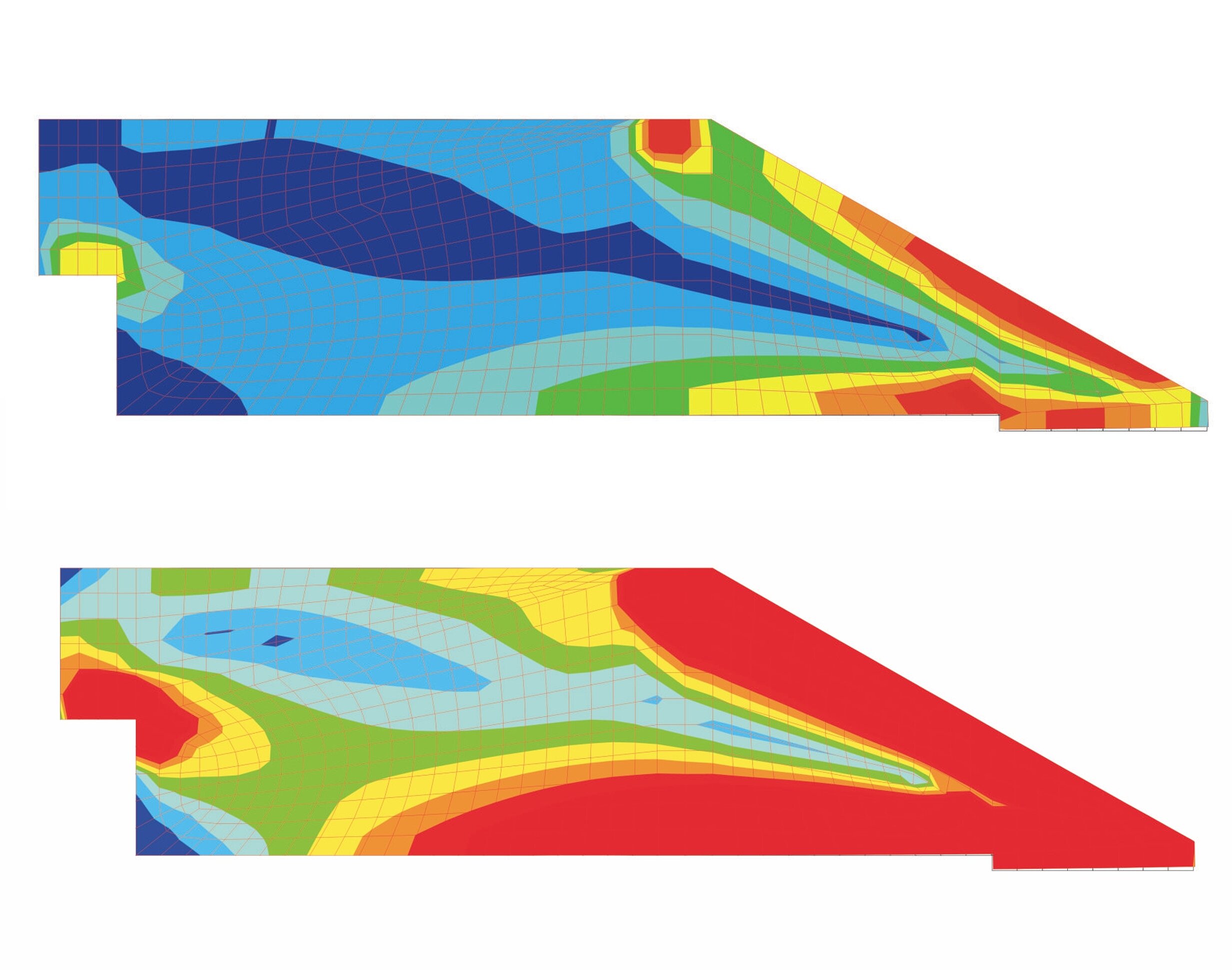

- Rigid upper beam for straight bends
- Servo drives and absolute encoders
- Accurate positioning, no calibration
Folding beam

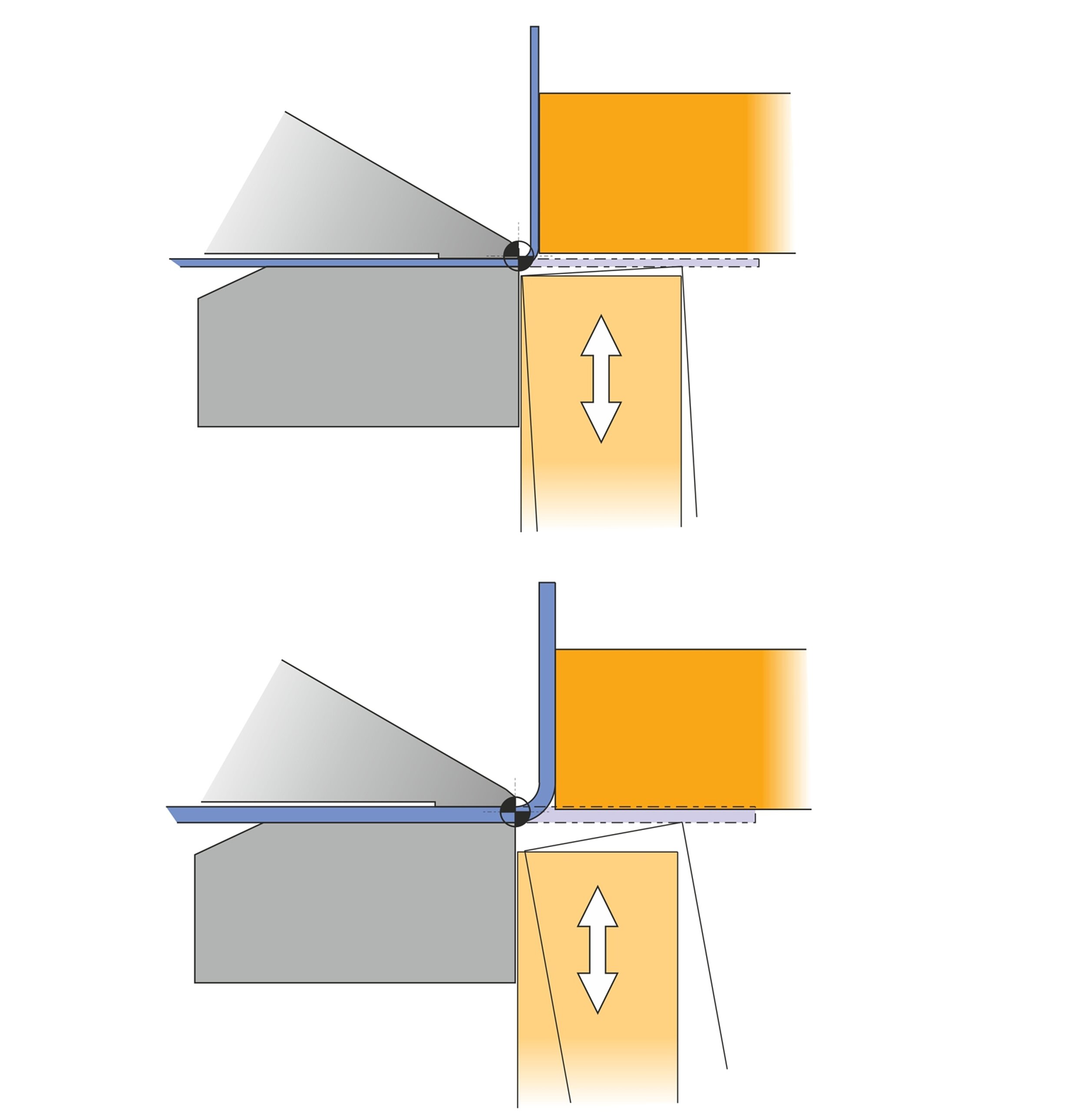

The folding beam on the TURBO2plus Compact is an example of engineering superiority. Fast folding cycles lead to high productivity. An impressive plus is its ability to adjust the folding beam automatically to the actual material thicknesses.
- Fast movement: short cycle times
- Deep folding beam: excellent bend results

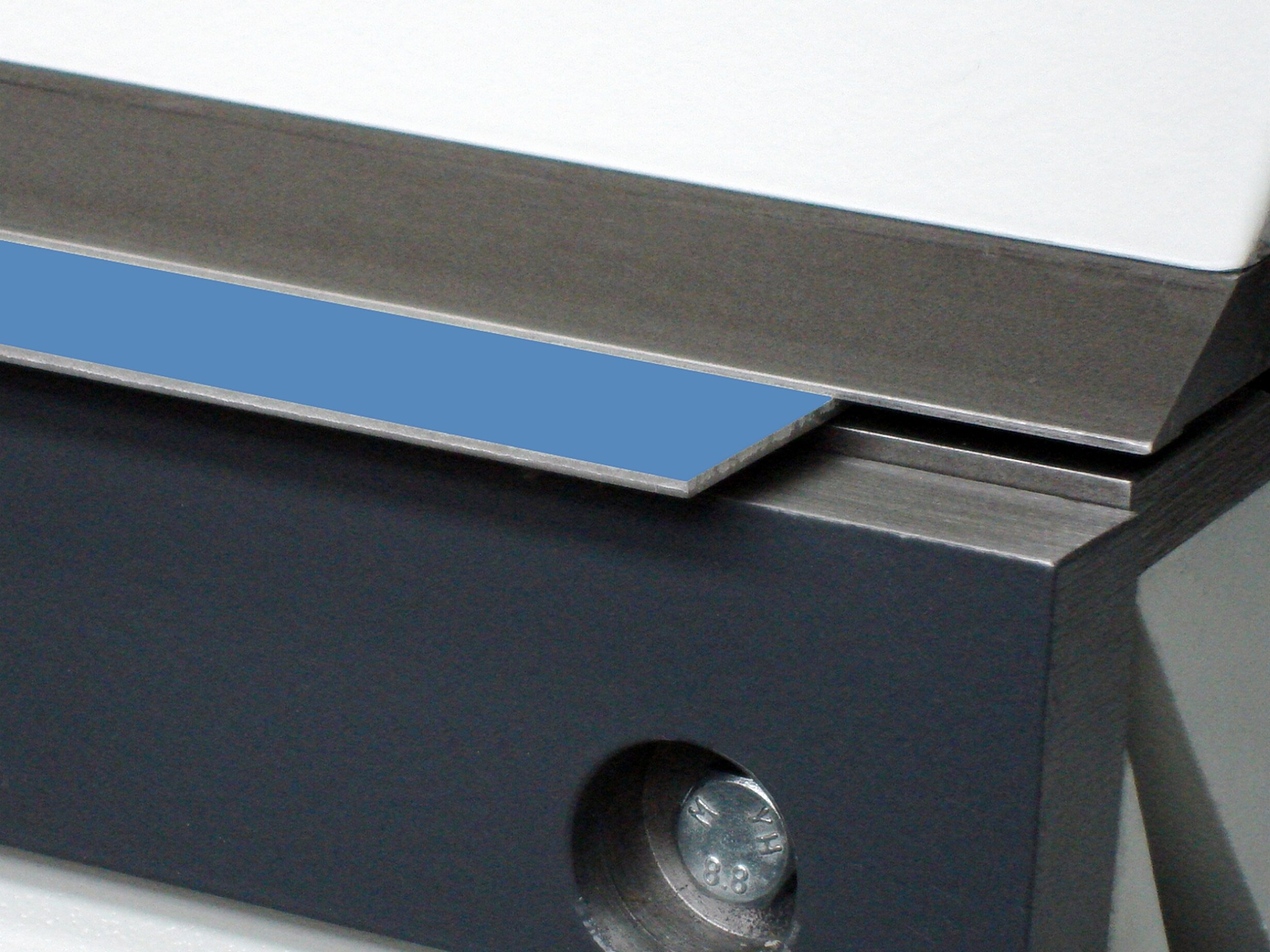

- Adaptive: Automatic adjustment for material thickness
- No downtime for machine adjustments
- Long machine lifetime
- New folding beam design for improved accuracy

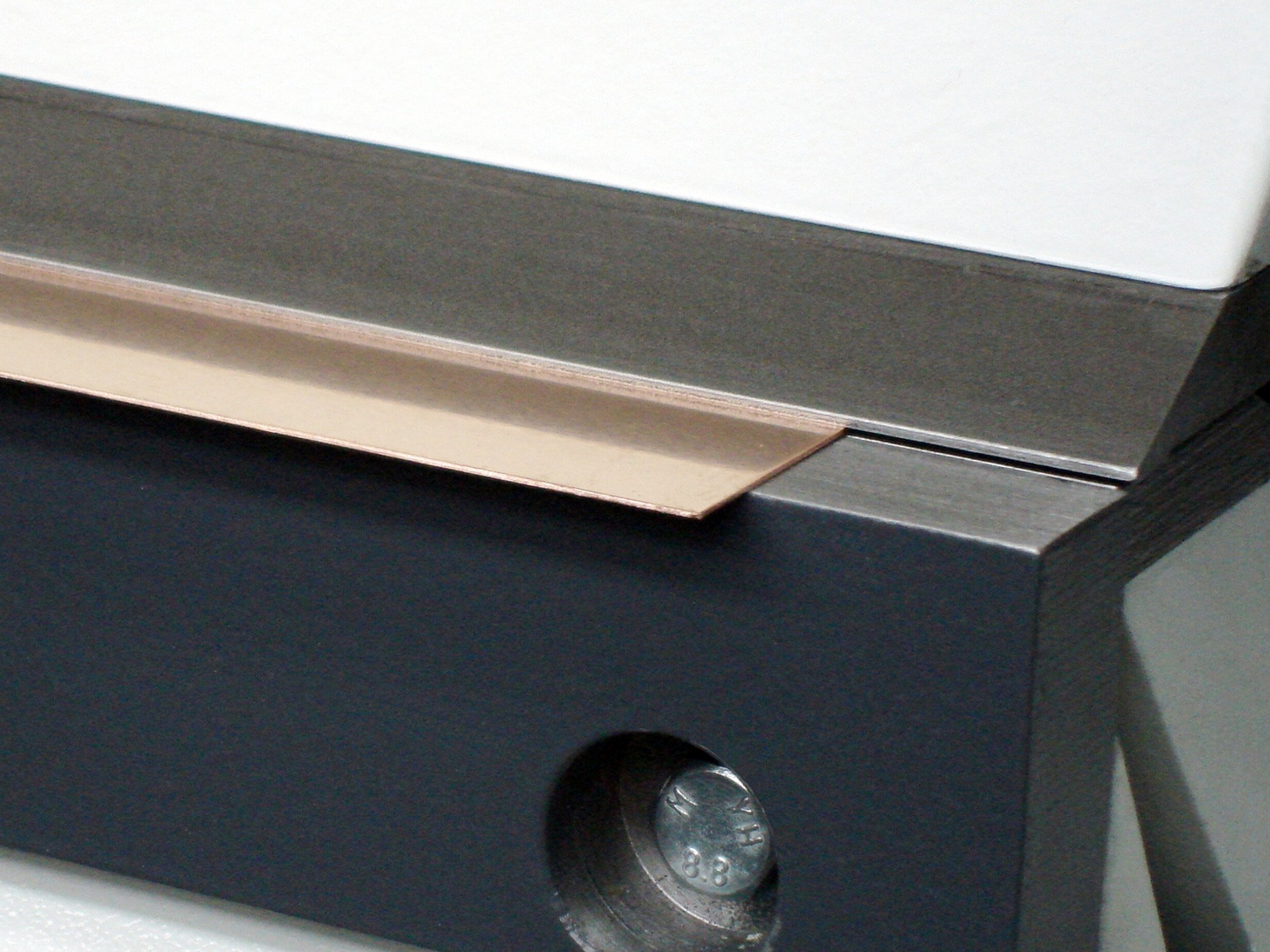

- Gentle and scratch-free bending of coated materials
- Servo motors and absolute encoder: quick operation, no calibration

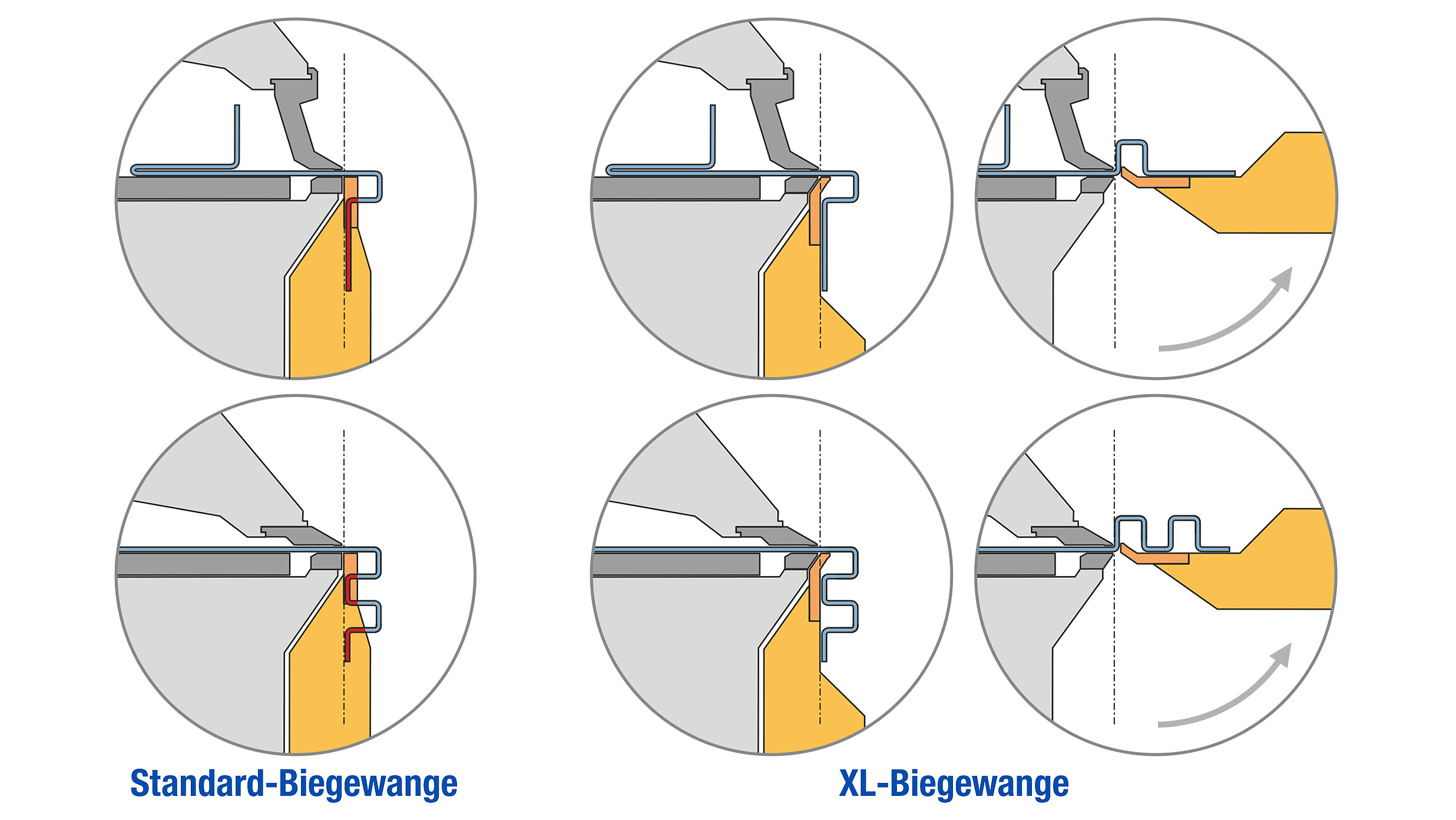

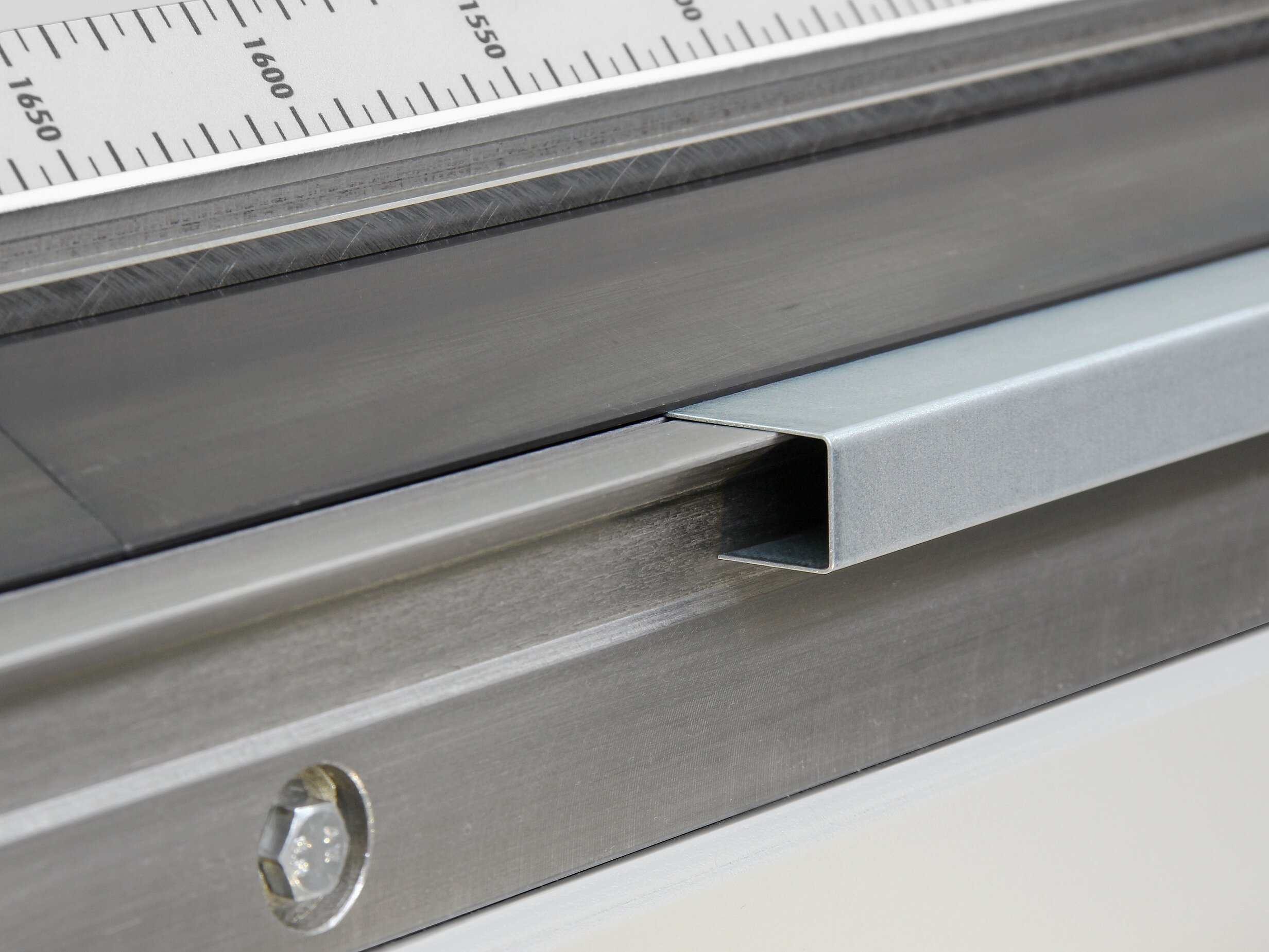

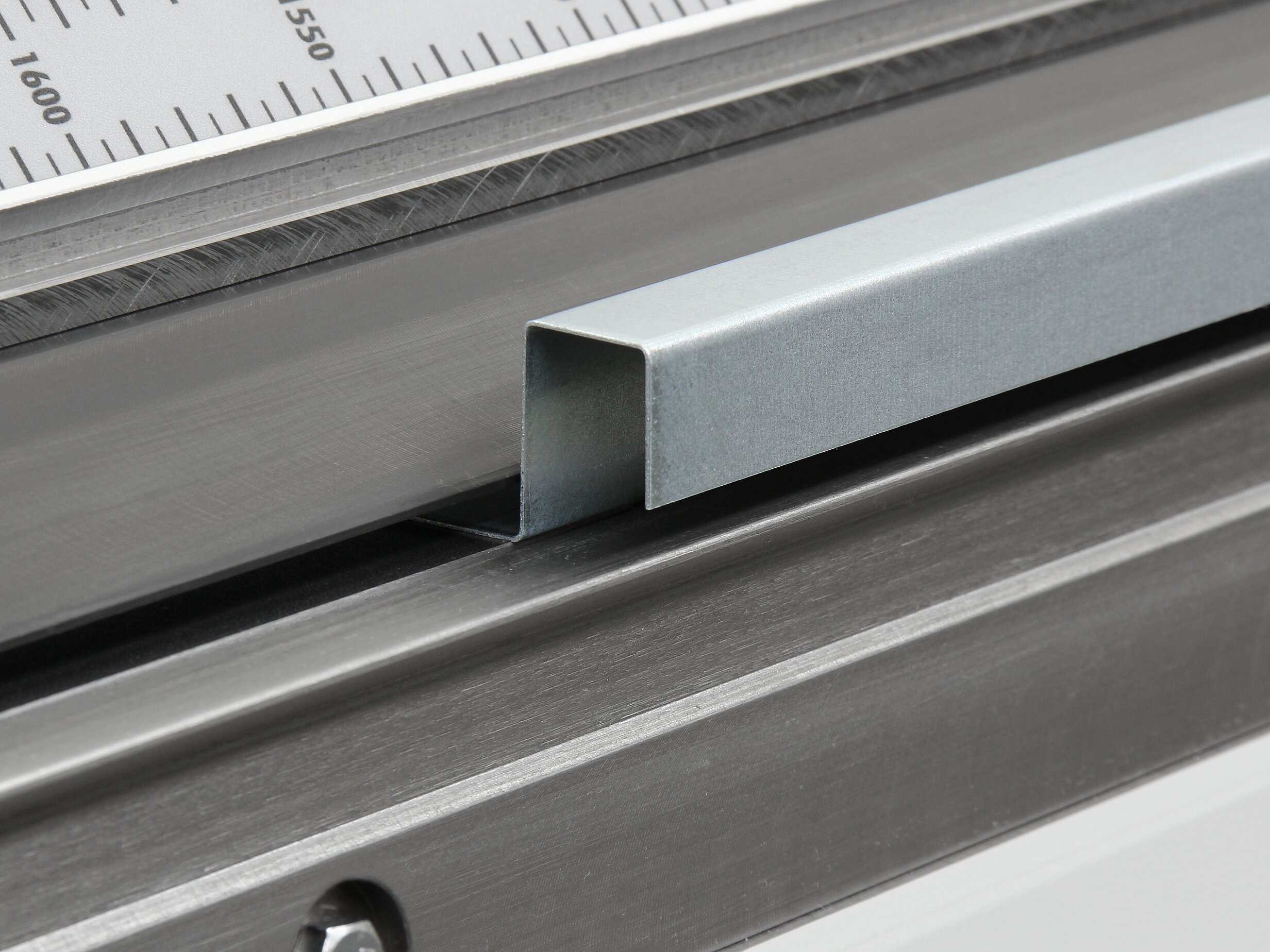

XL Folding Beam

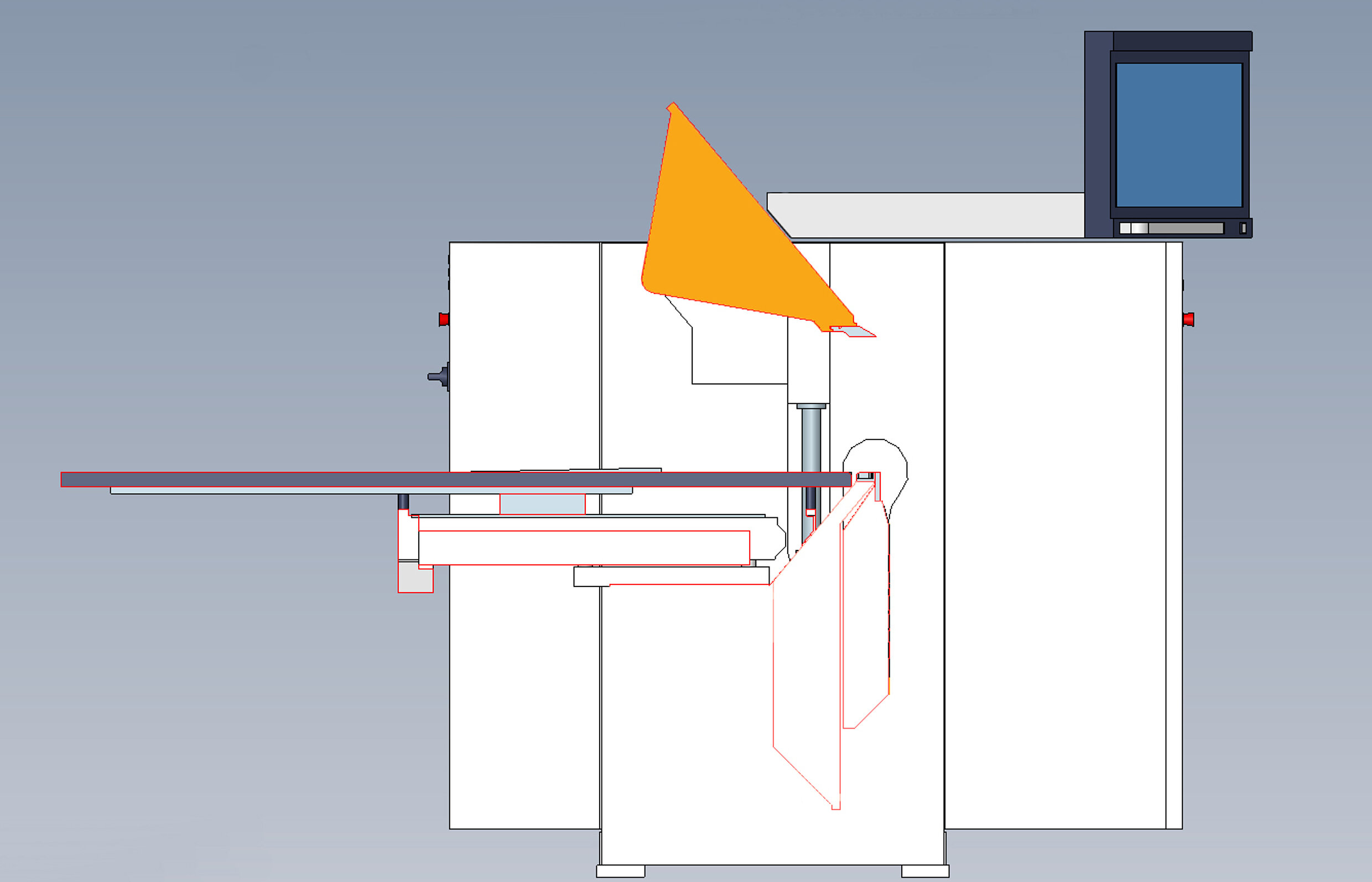

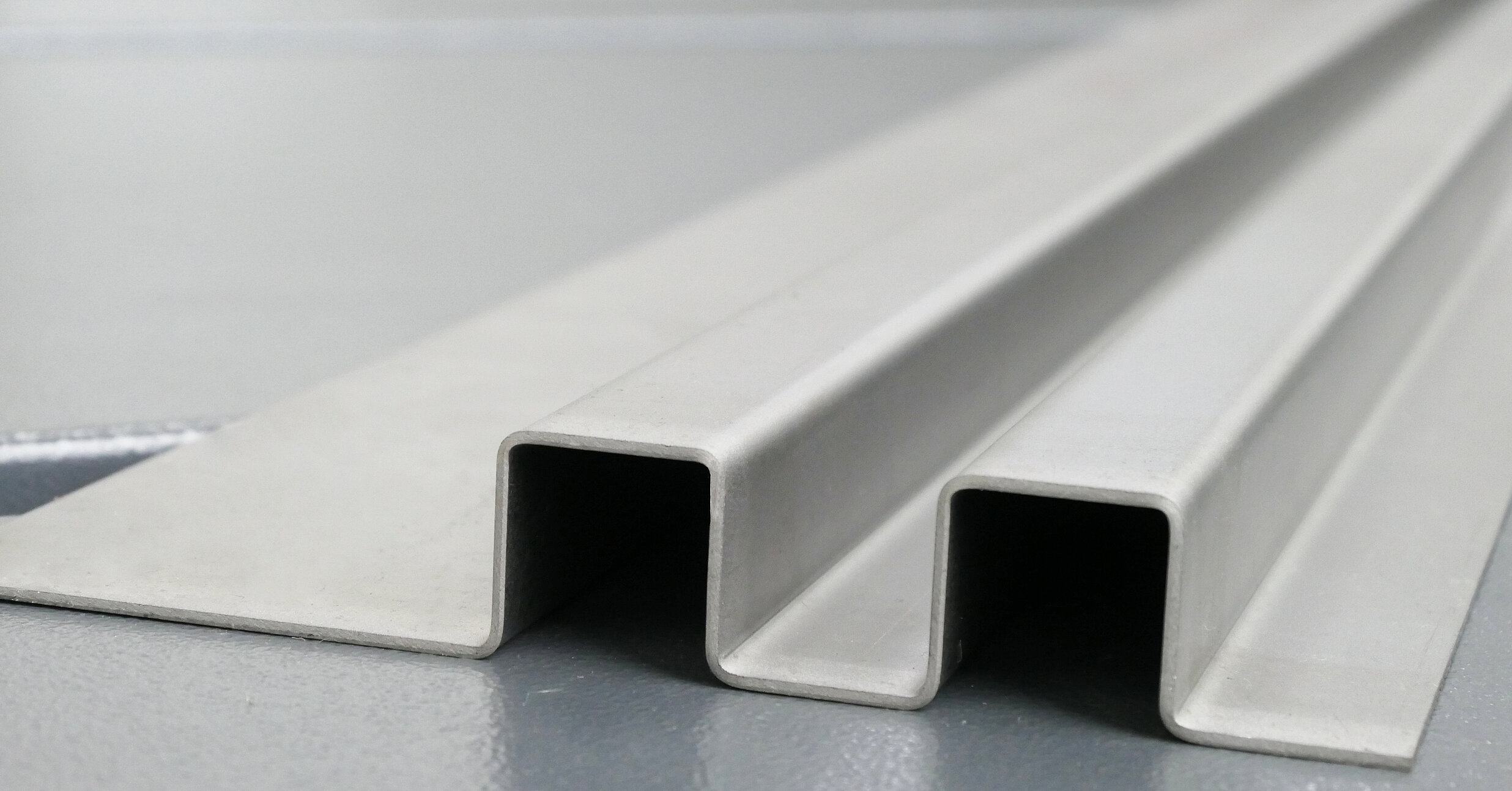

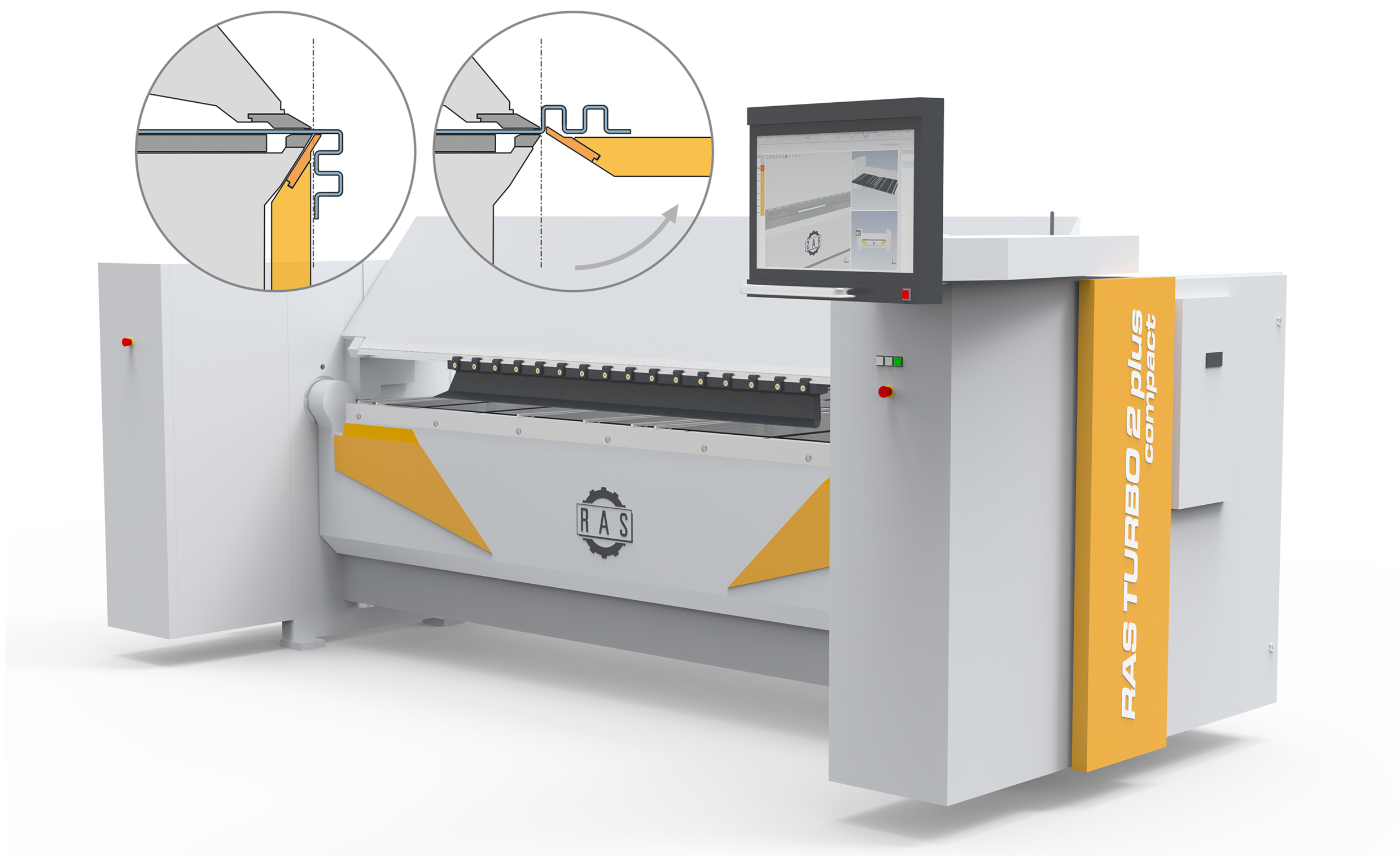

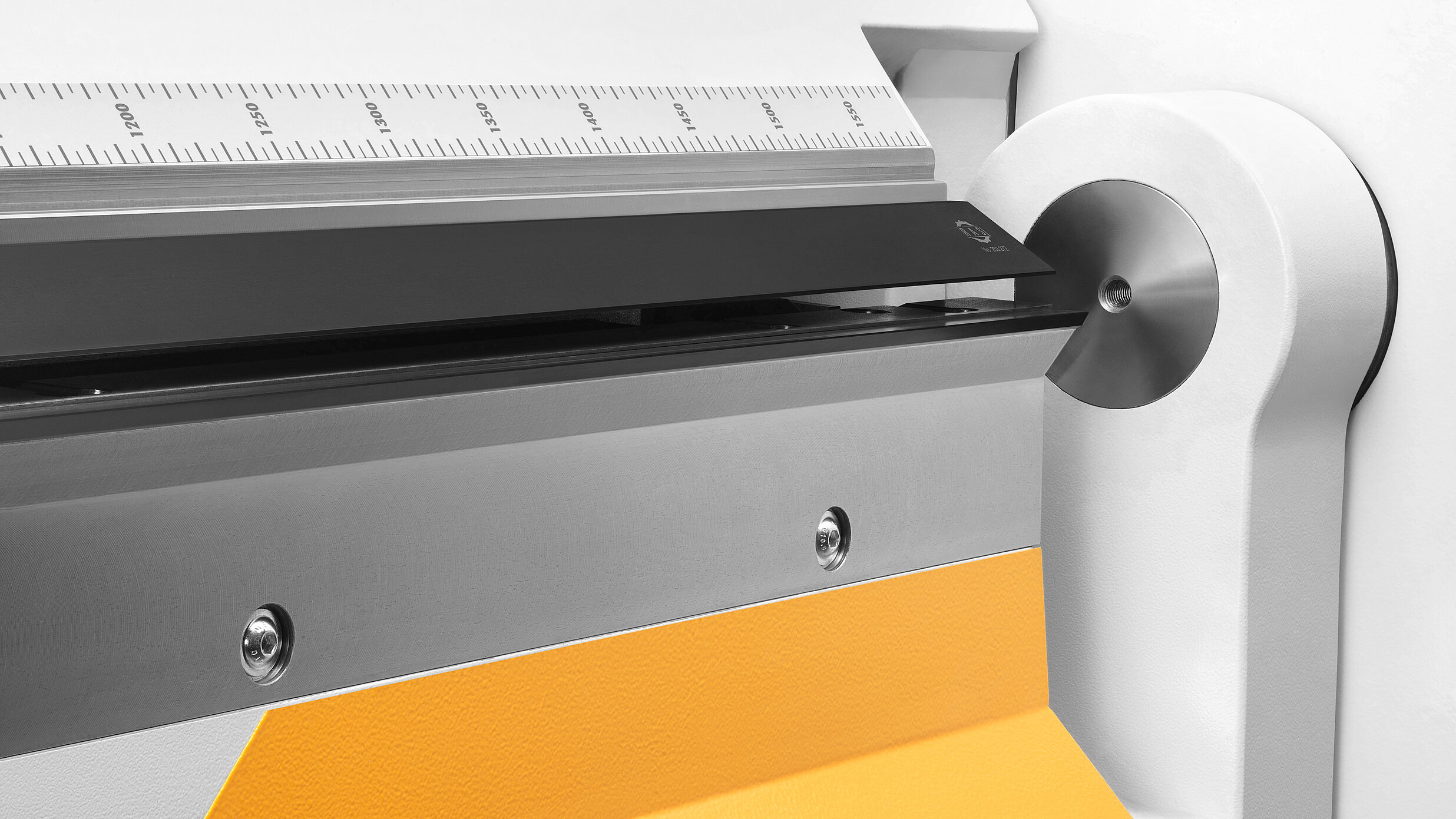

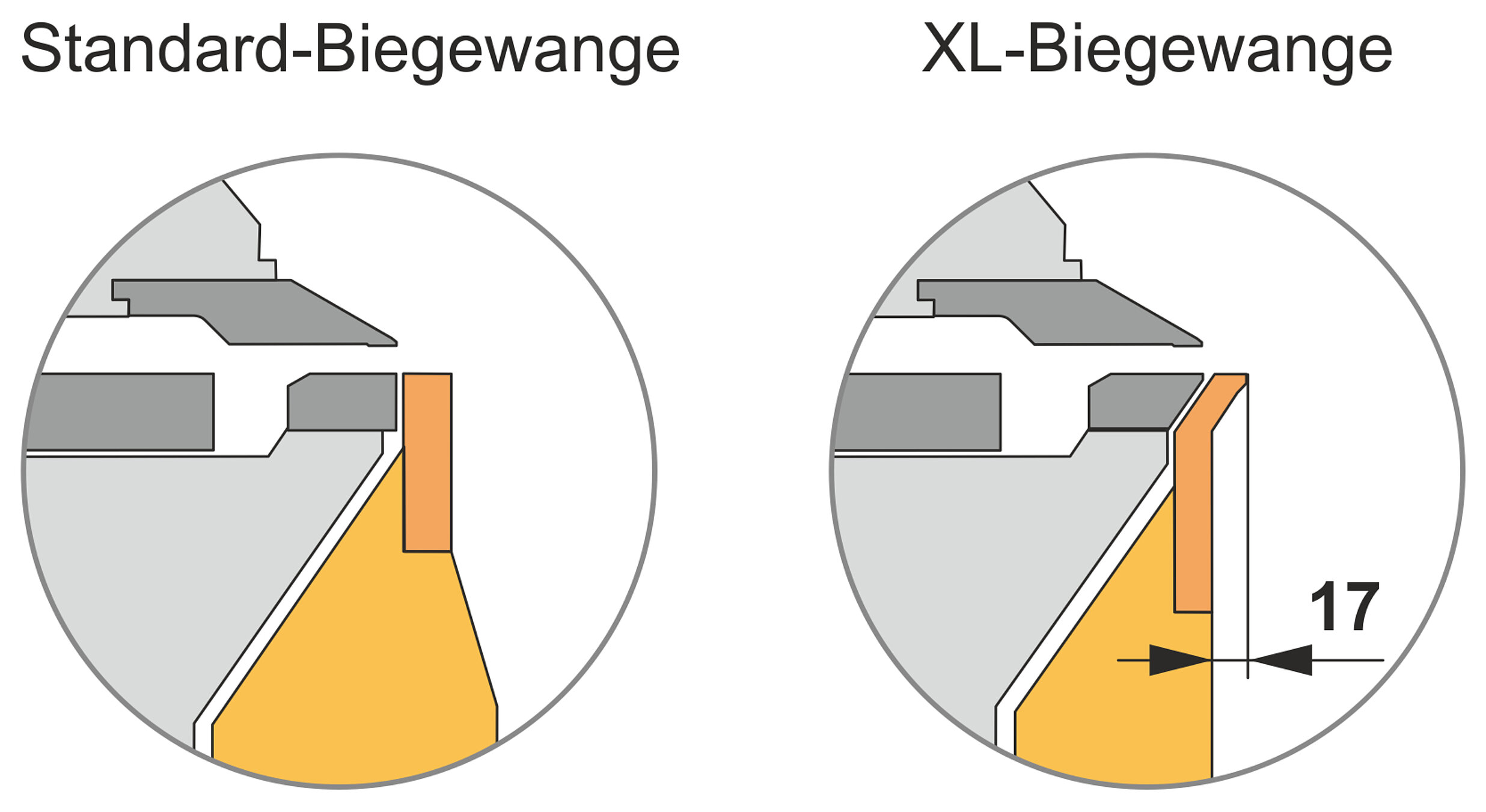

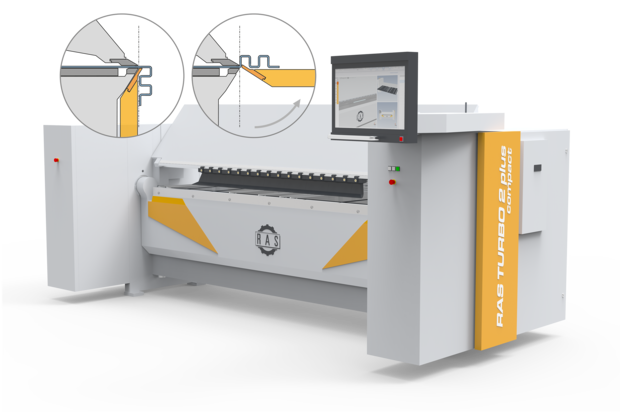

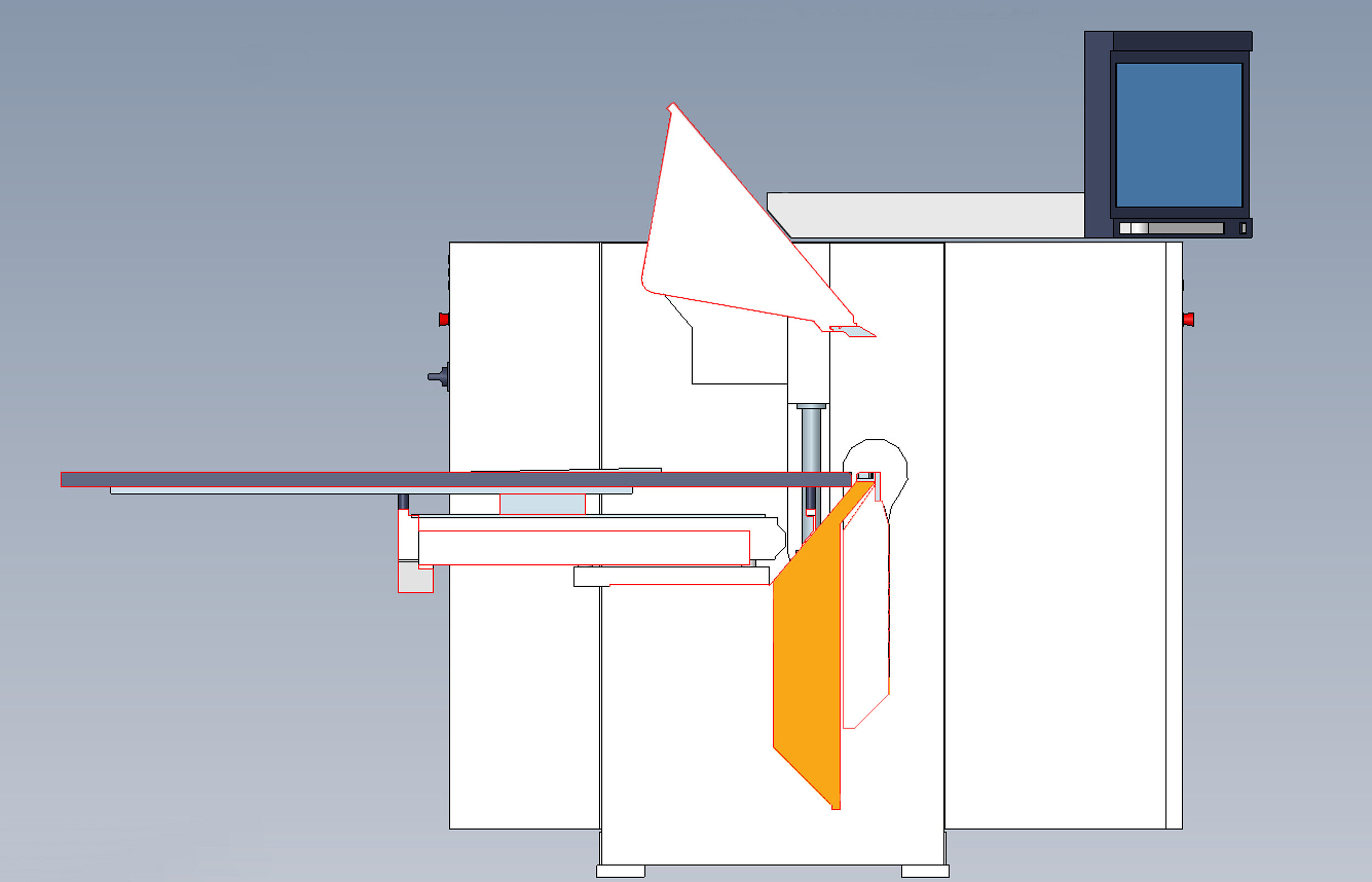

As an alternative to the machine with standard folding beam, RAS also offers the TURBO2plus Compact with a modified machine frame and an XL folding beam geometry. The additional free space expands the range of applications for bending profiles that require more space in front of the folding beam.
- Additional free space for special profiles
Lower clamping beam
The lower clamping beam is designed with a deep box configuration for maximum strength and resistance.
- Precise and straight bends

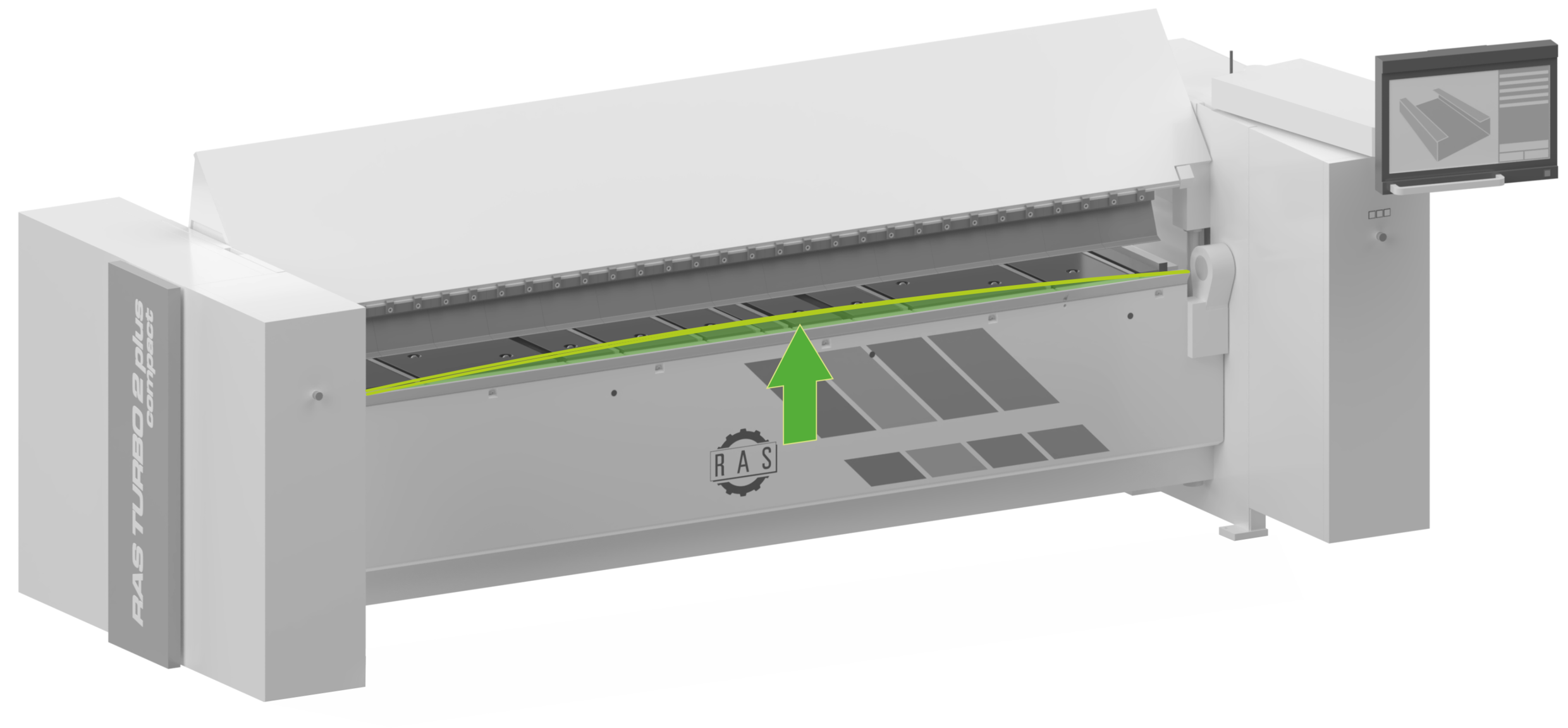

- Optimized crowning for improved accuracy
- Long lifetime of the machine
- Rigid unibody unit together with the side stands
- Maximum resistance to deflection and torsion

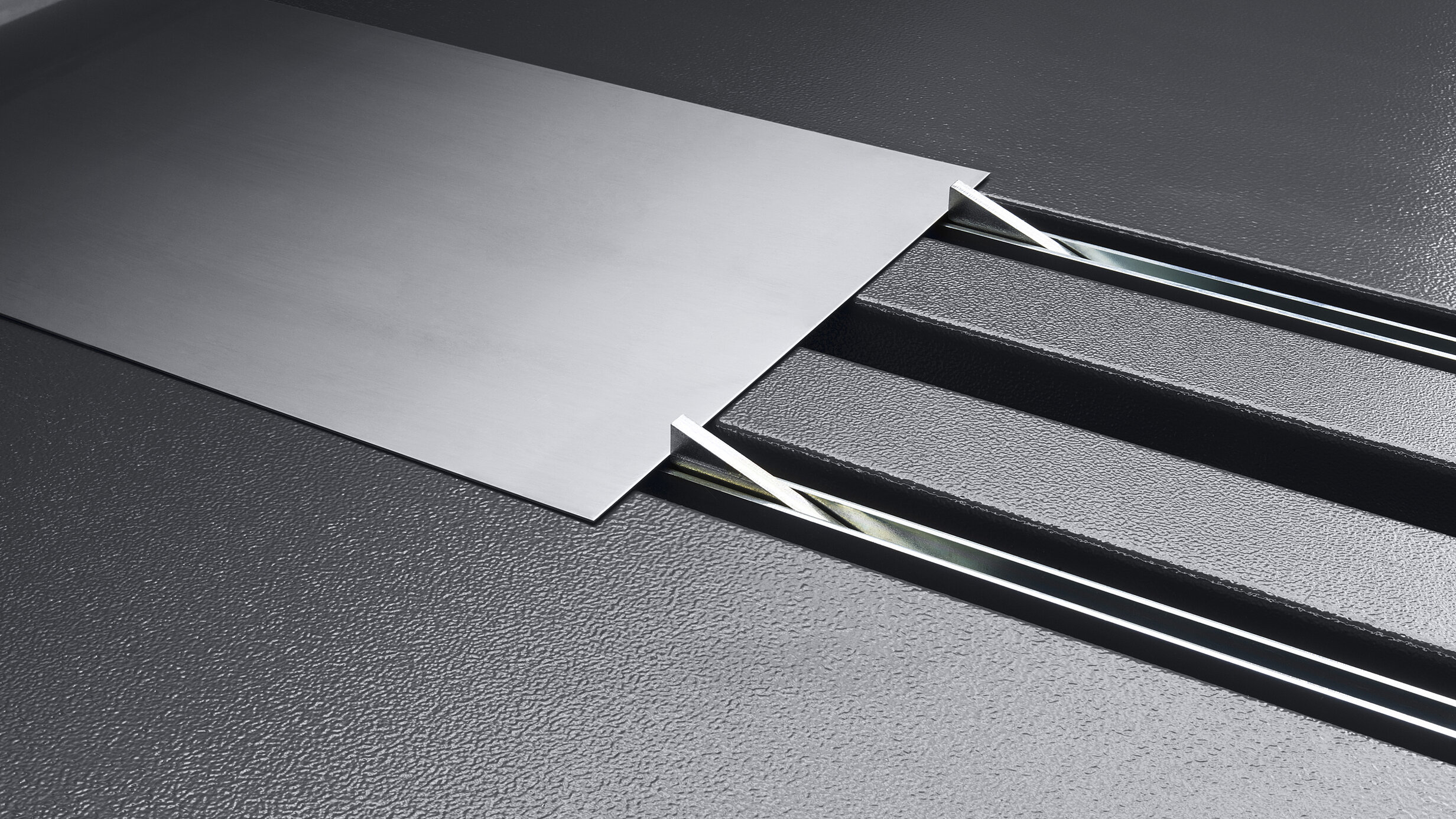

Gauging system

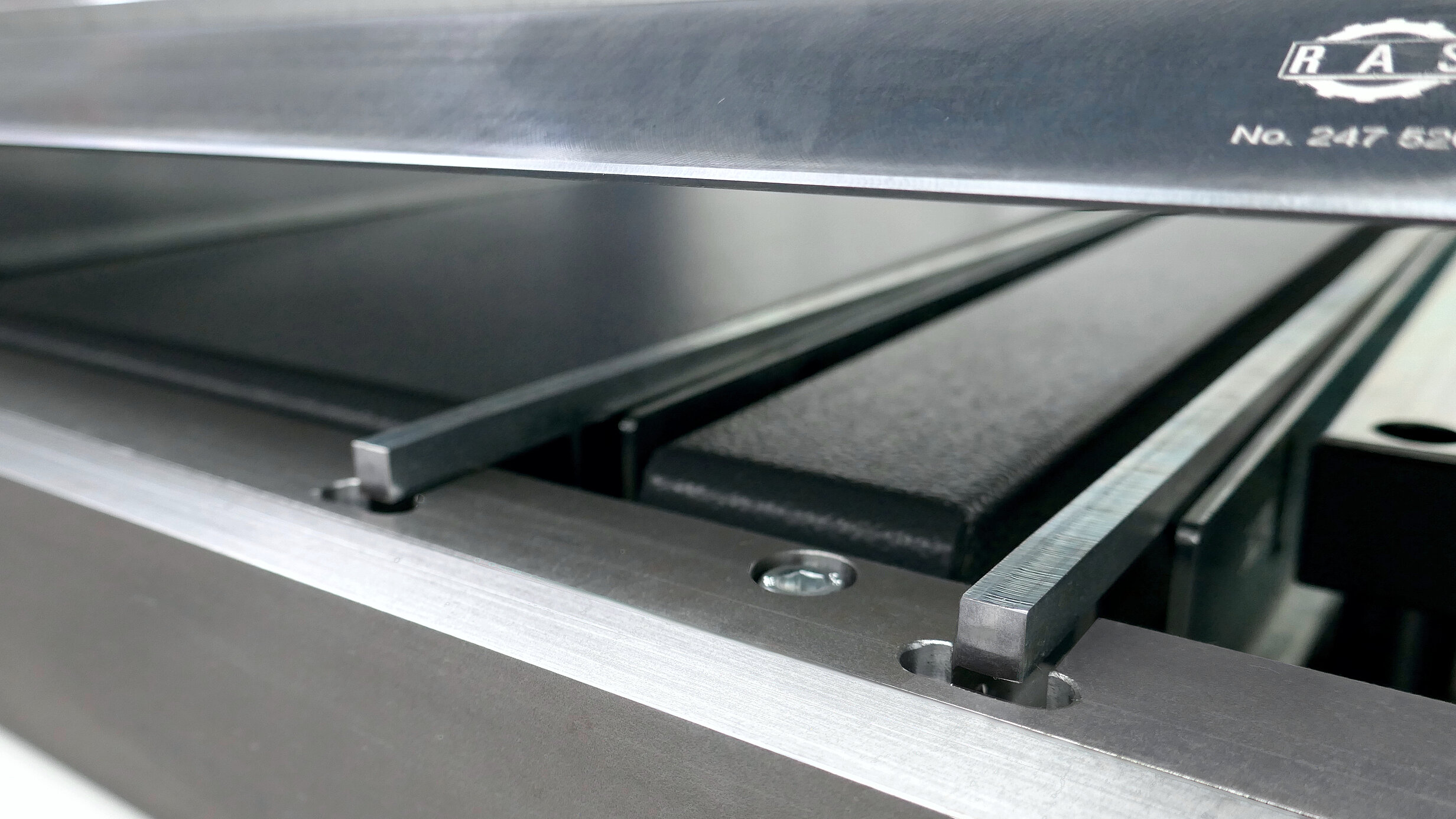

The fingers of the gauging system position the workpiece for each bend. All stop fingers disappear below the table surface when the part has to be rotated on the sheet support table.
- Fast positioning, repeatable accuracy
- No 2nd operator (50% cost saving)
- No marking (30% time saving)
- Sheet support carries the weight of the blank
- Solid front and rear stop fingers
- Servo drive and absolute encoder: no calibration
- Adaptive to working task and available floor space
- Center orientation for best bend results

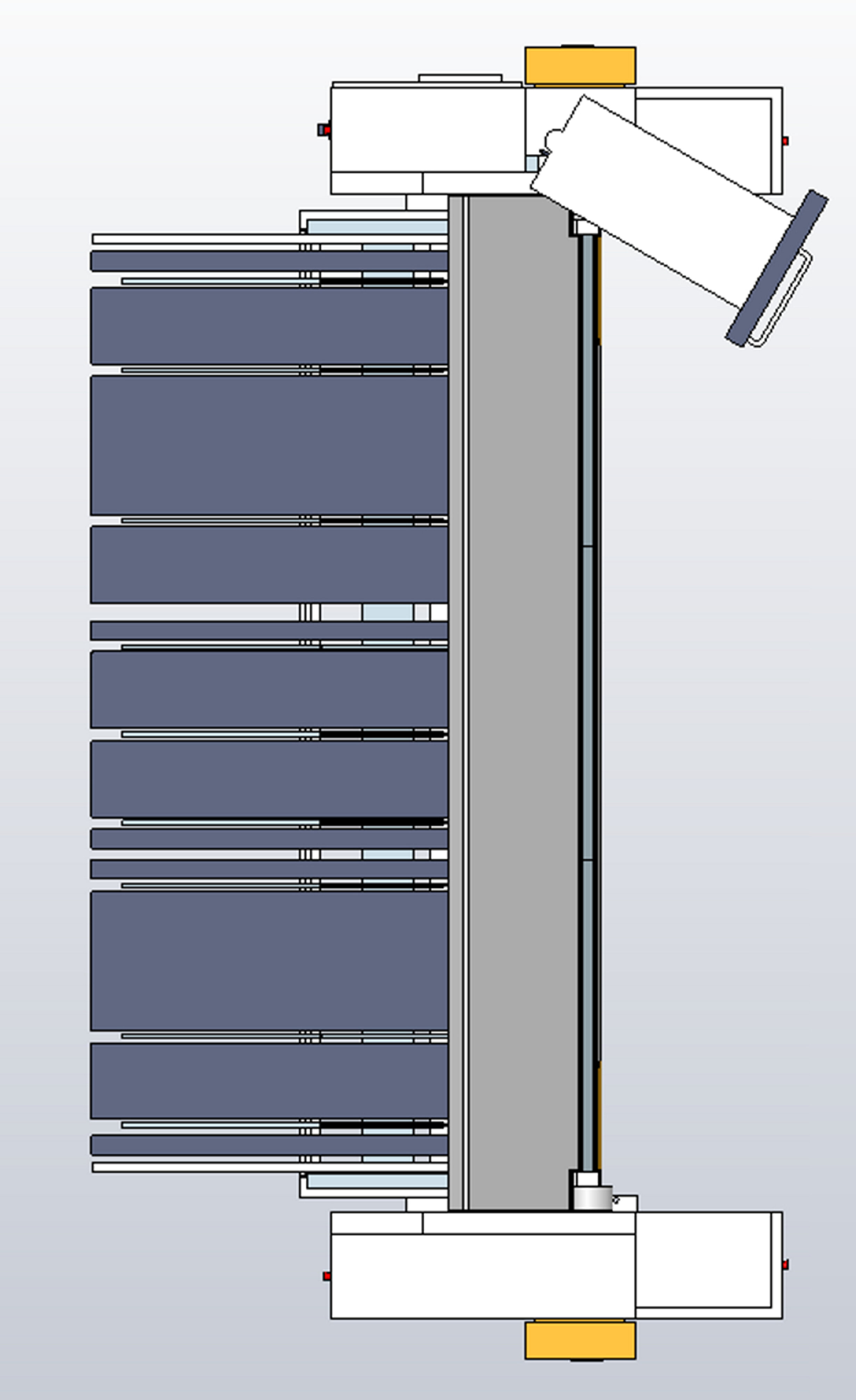

- Rectangular backgauge 6-1550 mm

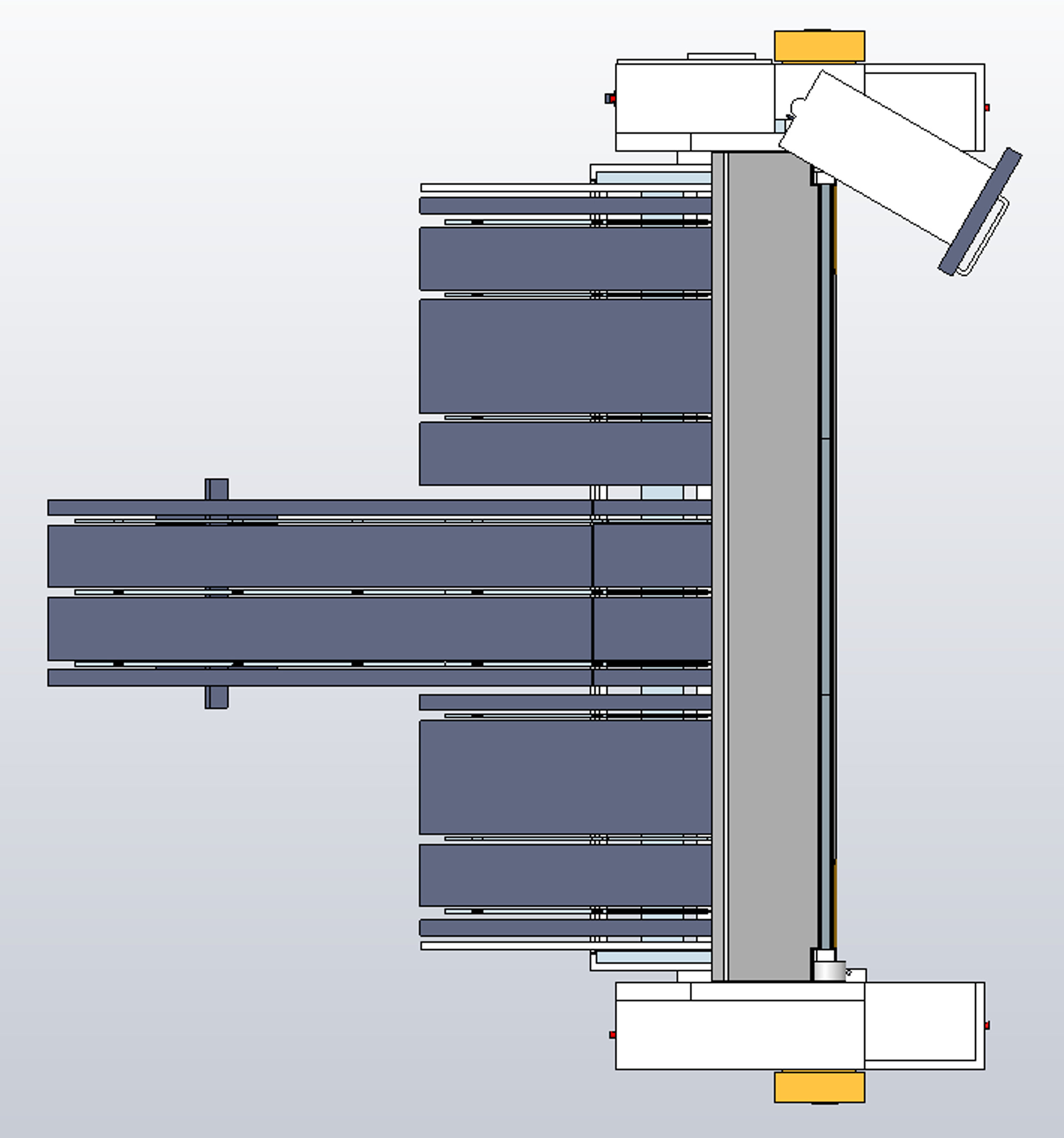

- T-gauging system for big parts (6-3050 mm)

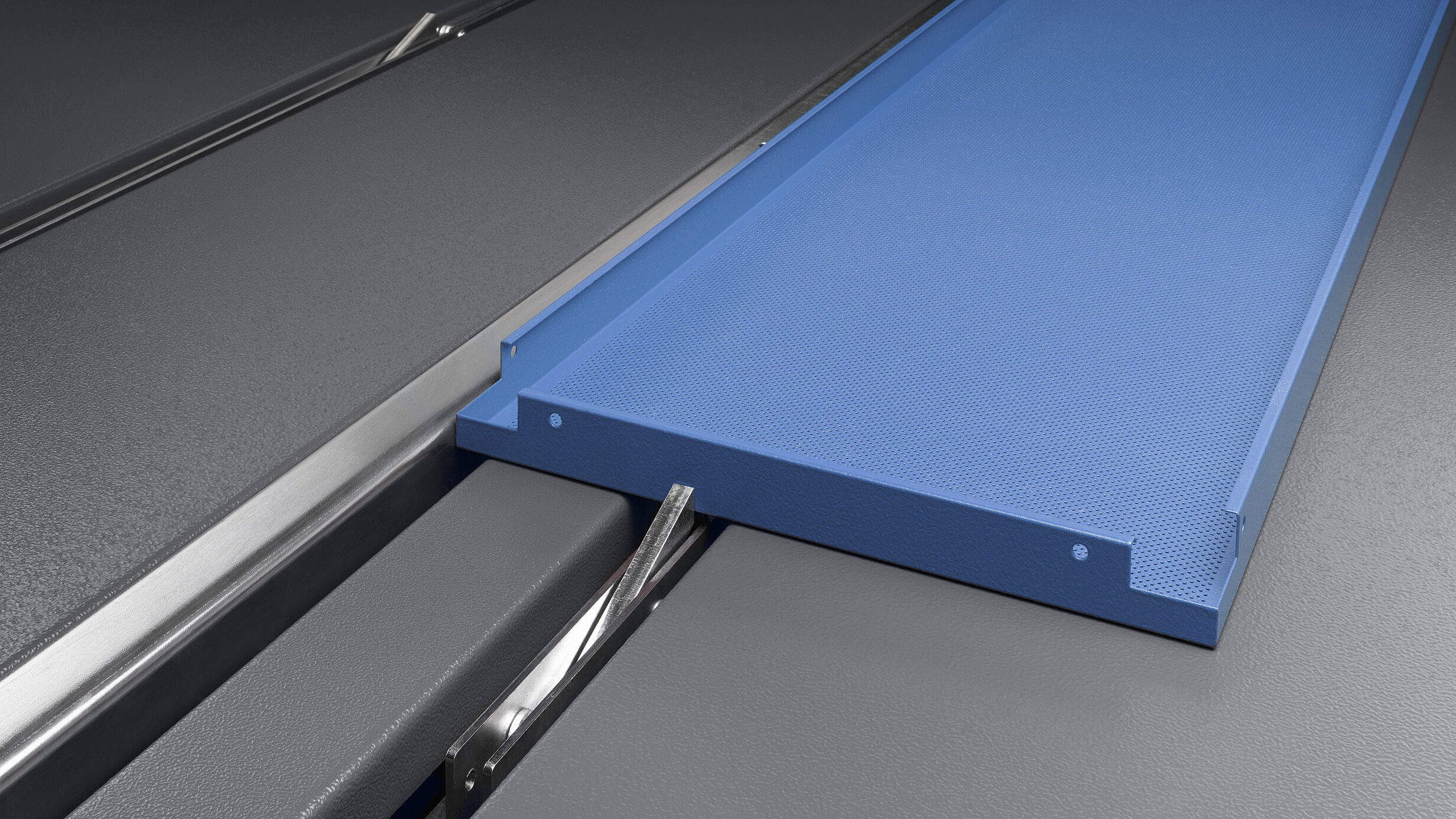

- Active squaring arm for narrow parts (lifting movement)
- Stop system for conical bending

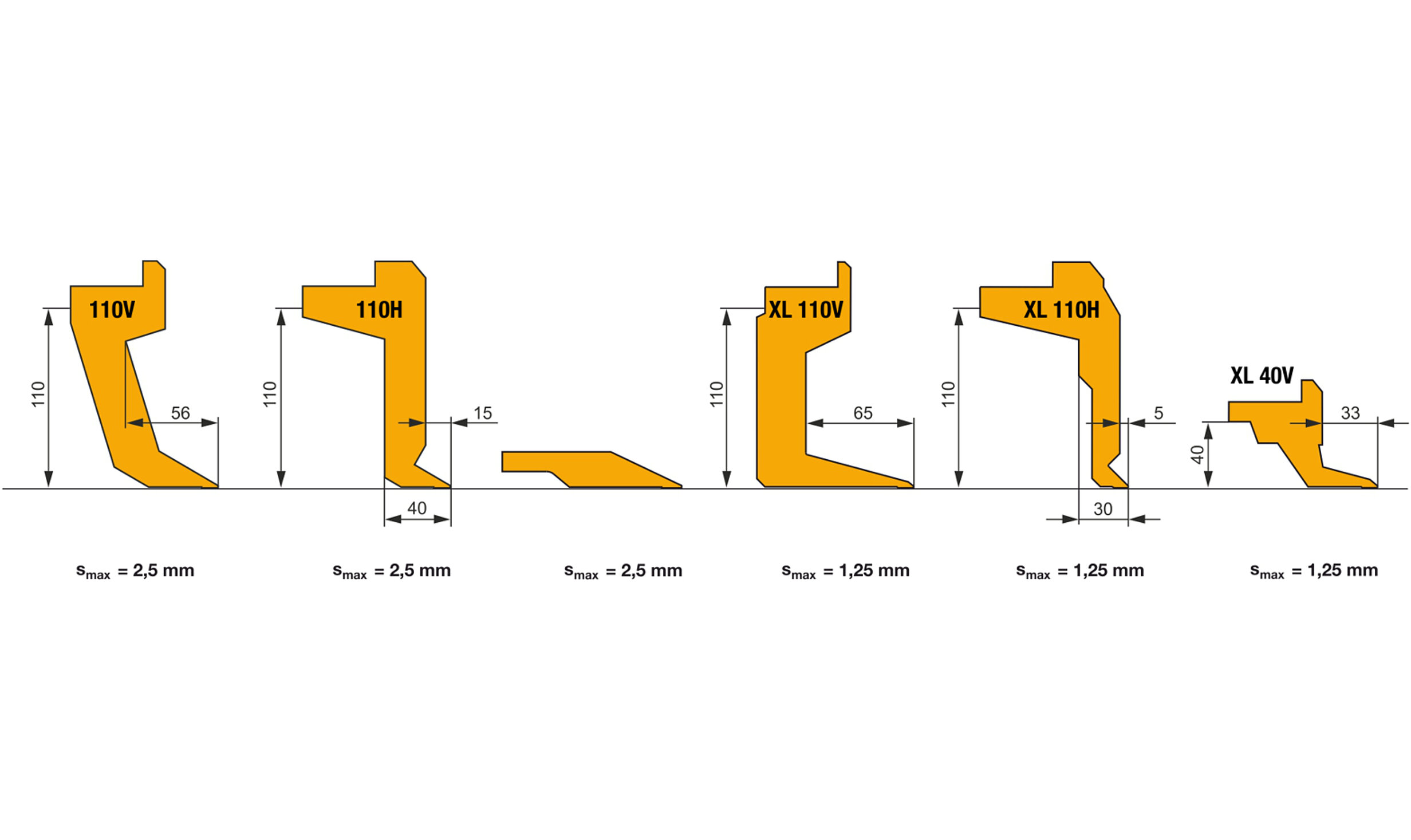

Versatile tooling system

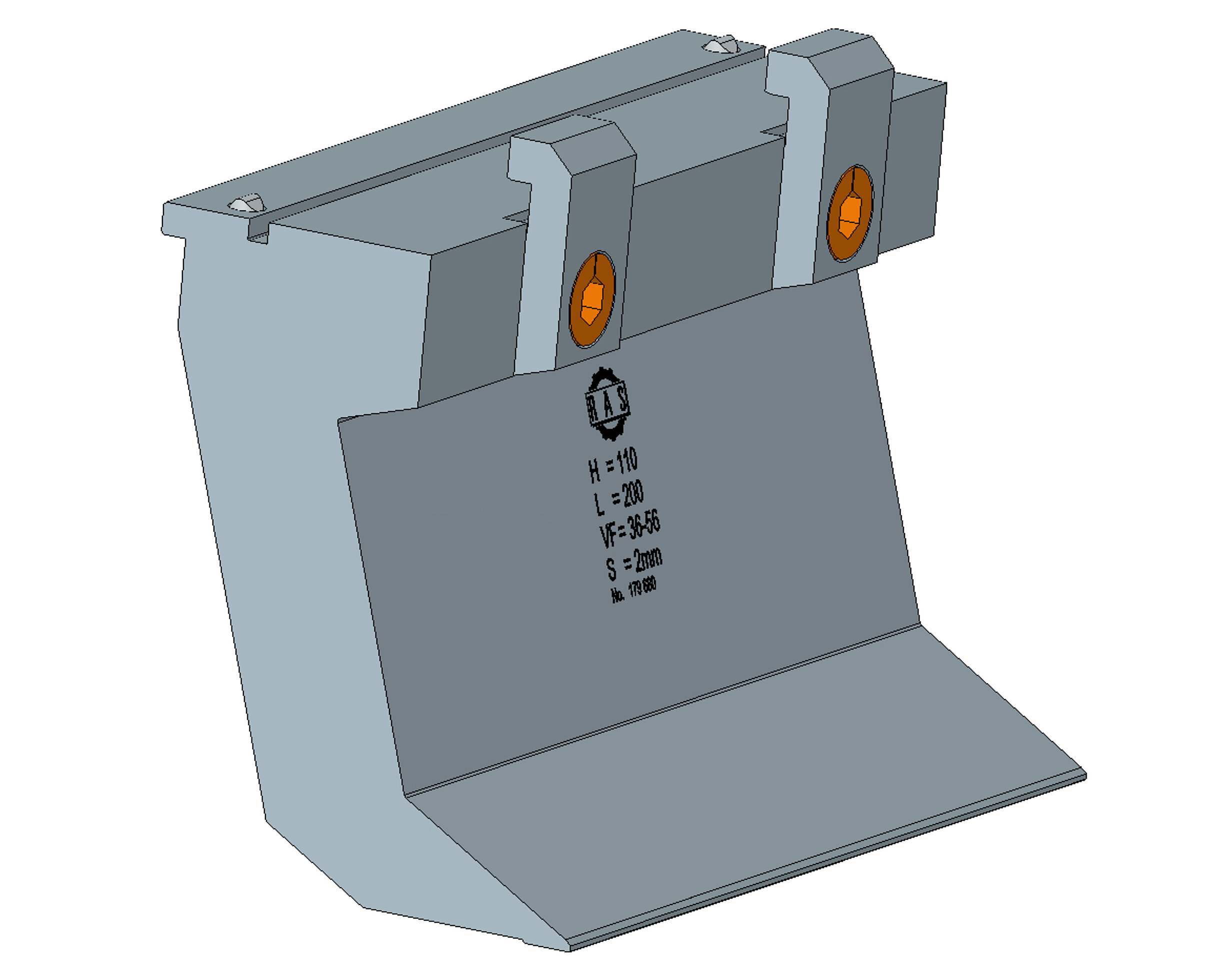

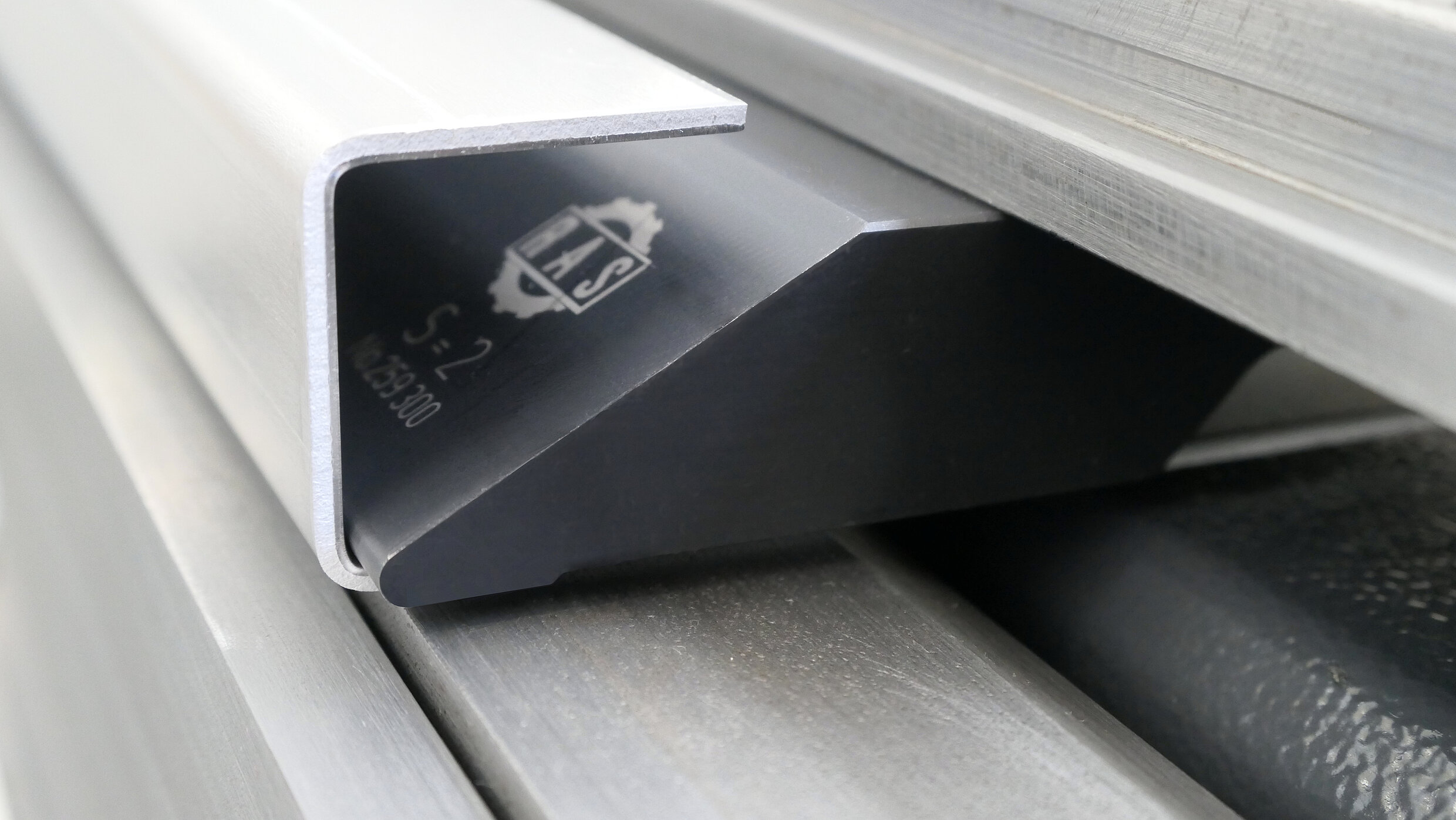

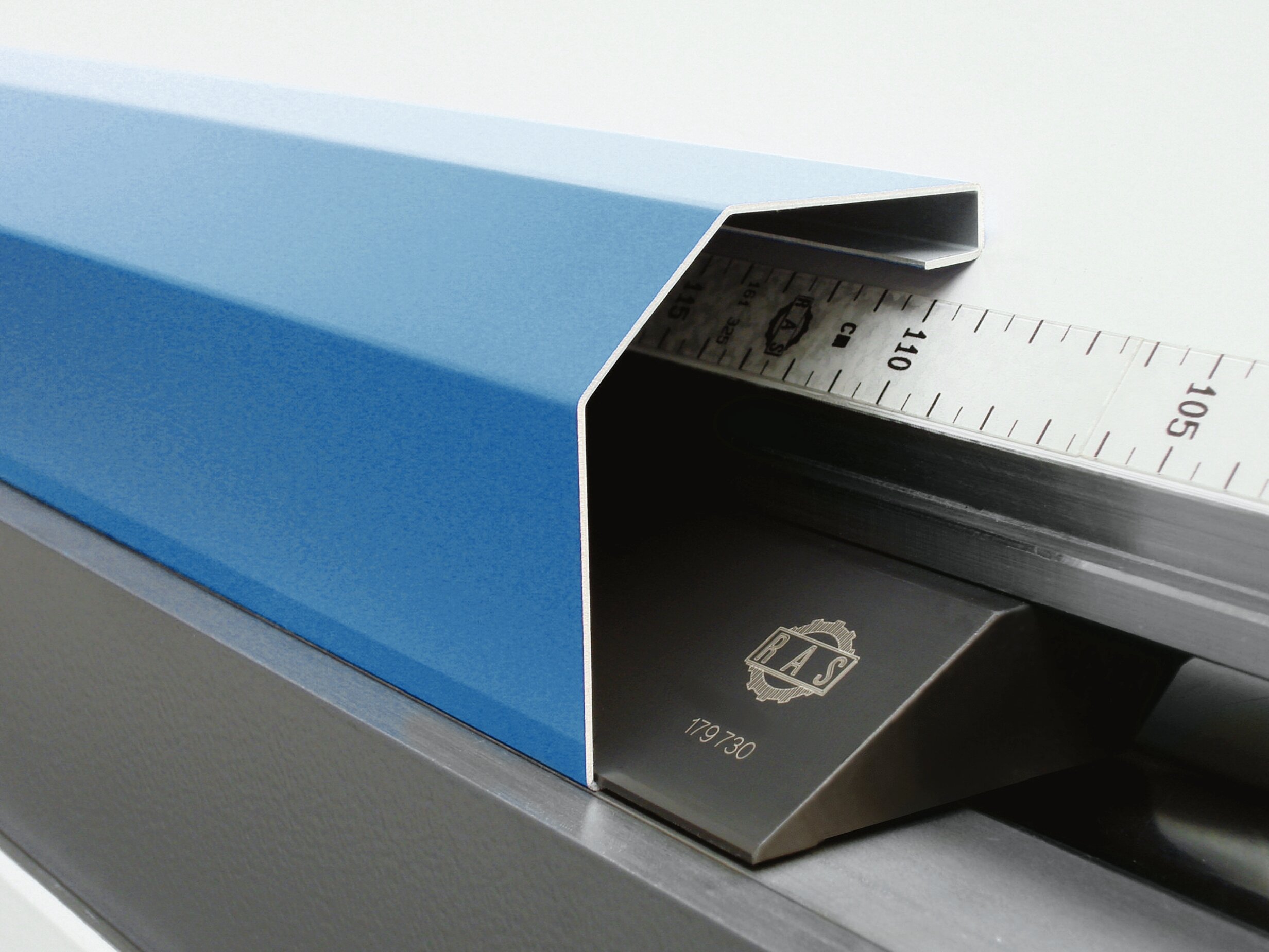

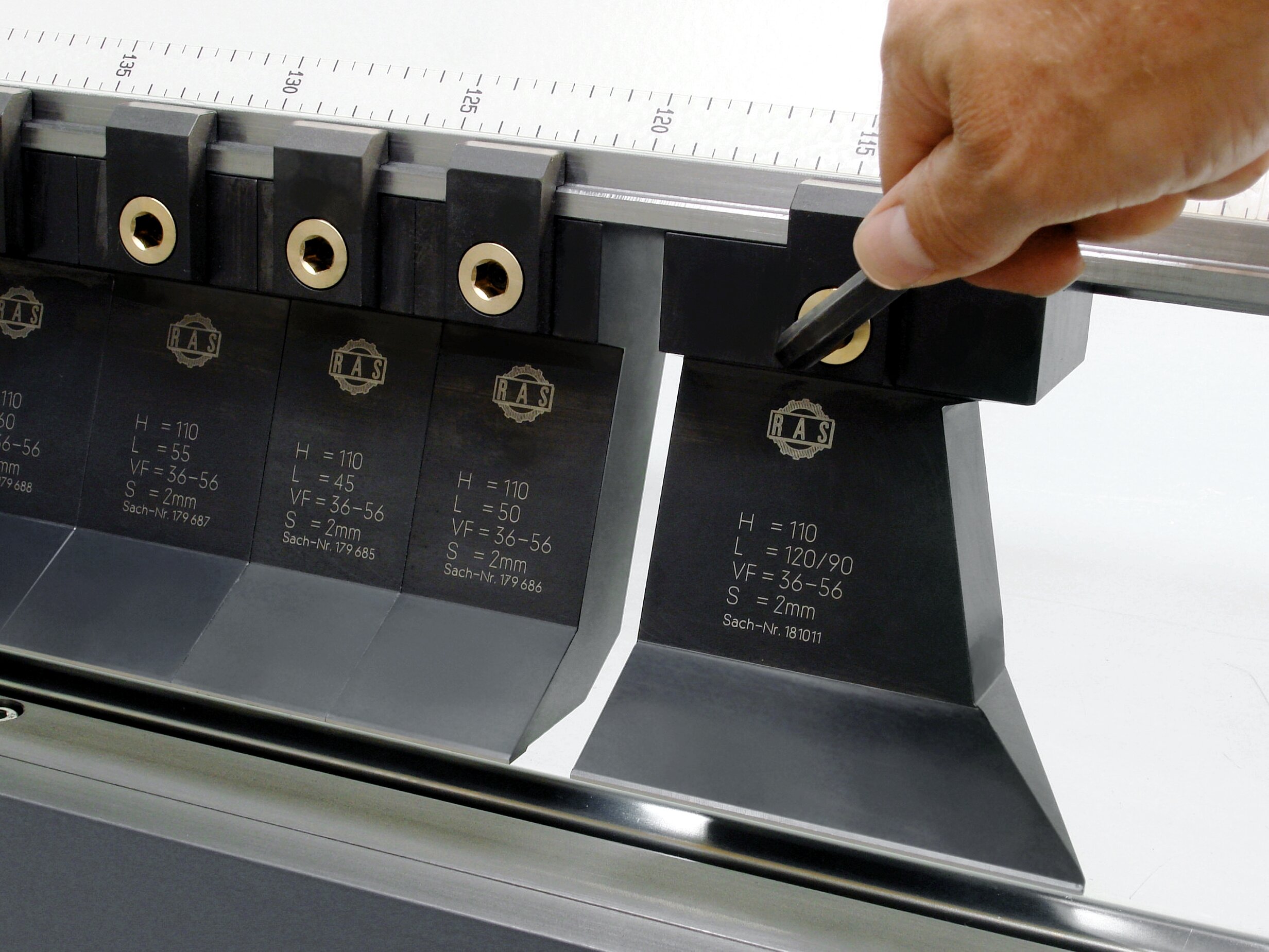

The segmented sharp tool can be taken on and off by a single operator in no time. The segmented goat's foot tooling is precision designed, and literally "quick-clamps" and locks in position so that it is ready to work within seconds.

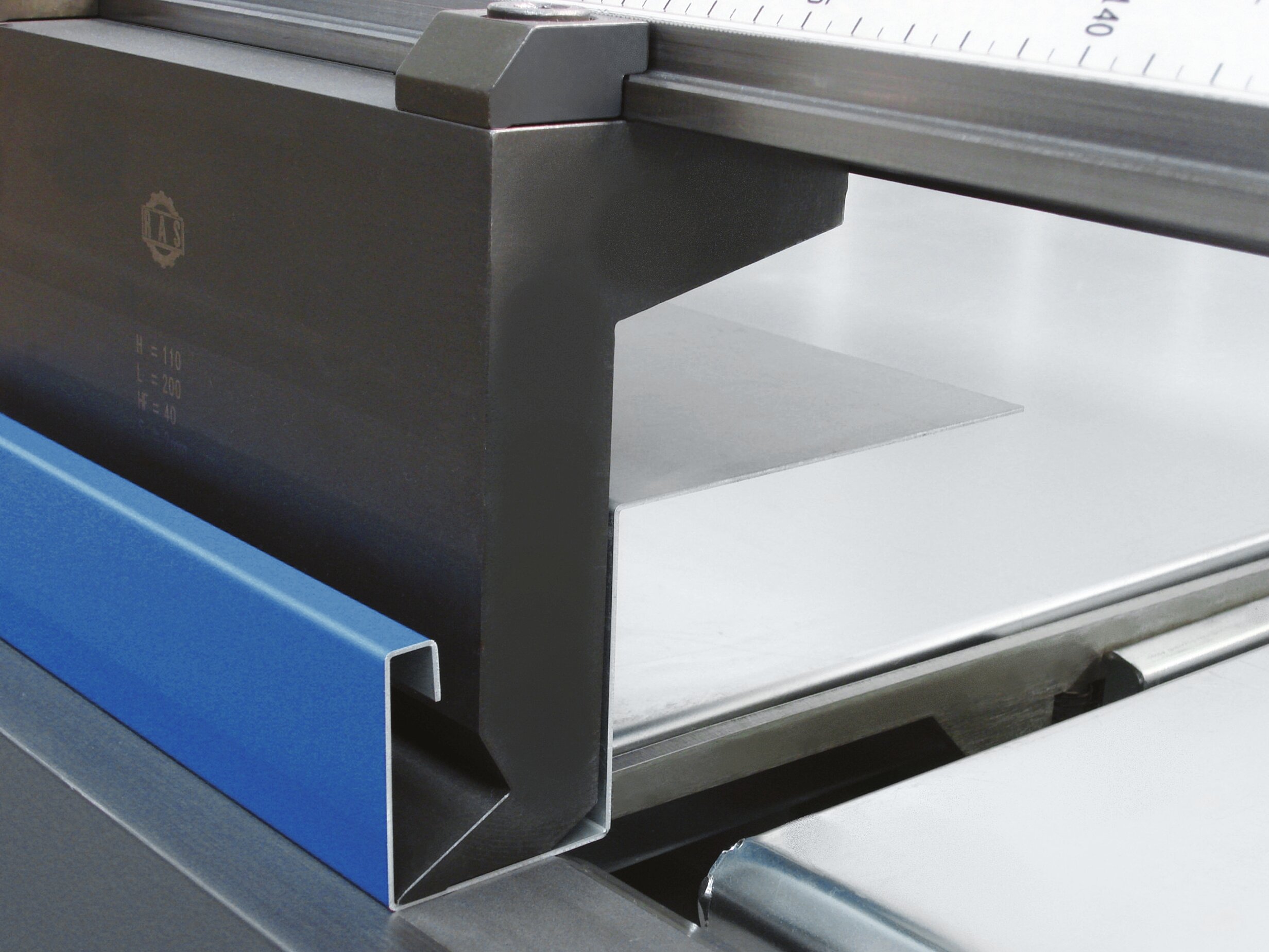

- Large free spaces for part design flexibility

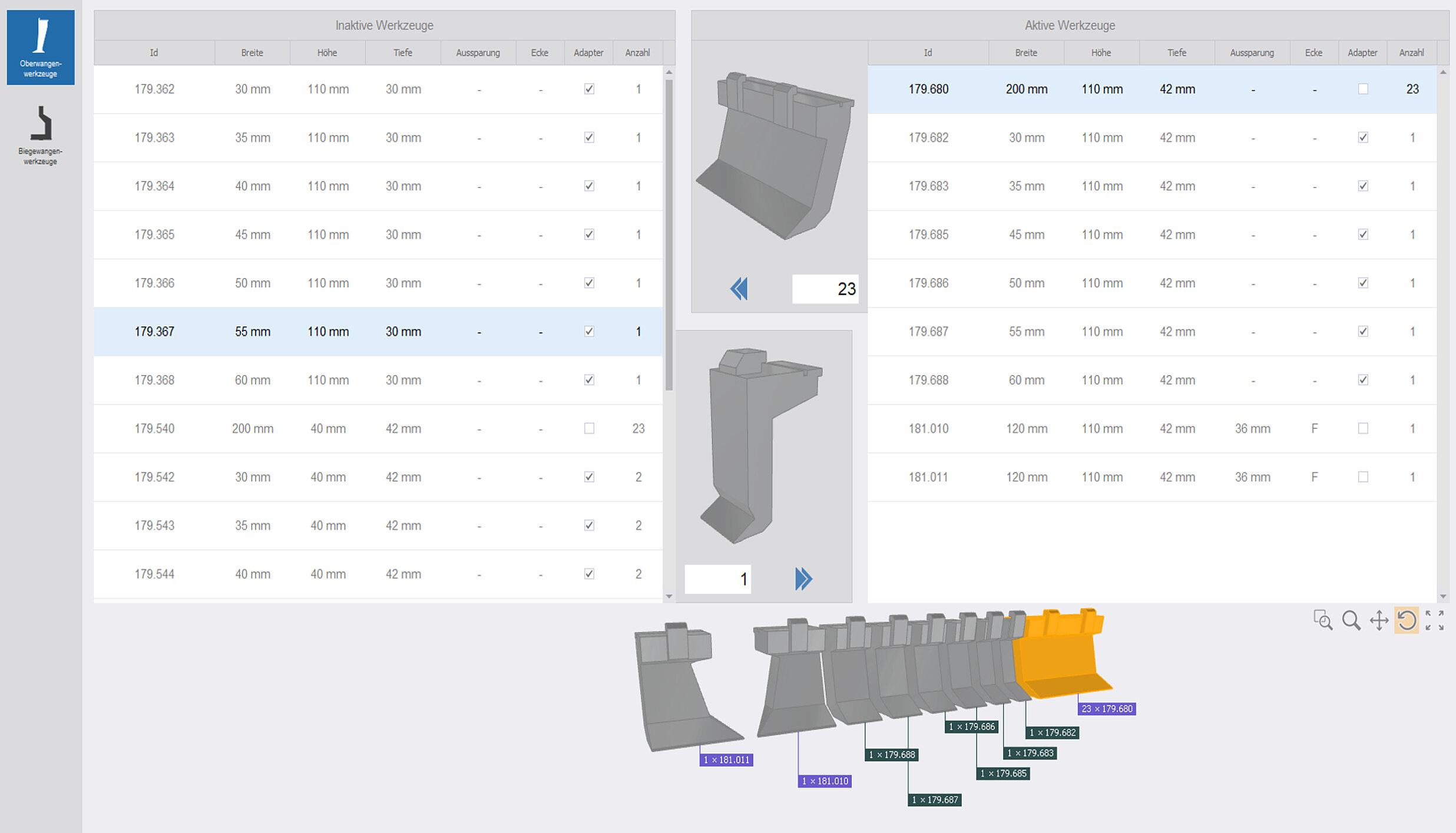

- Segmented tools: Basic segments, adapter set, corner left/right
- Automatic recognition of a tool change
- Automatic recognition of the tool height
- Different tool heights up to 127 mm
- Short setup times due to quick locking mechanism
- Folding beam tools for different thicknesses and Z bends
- Segmented folding beam tools available

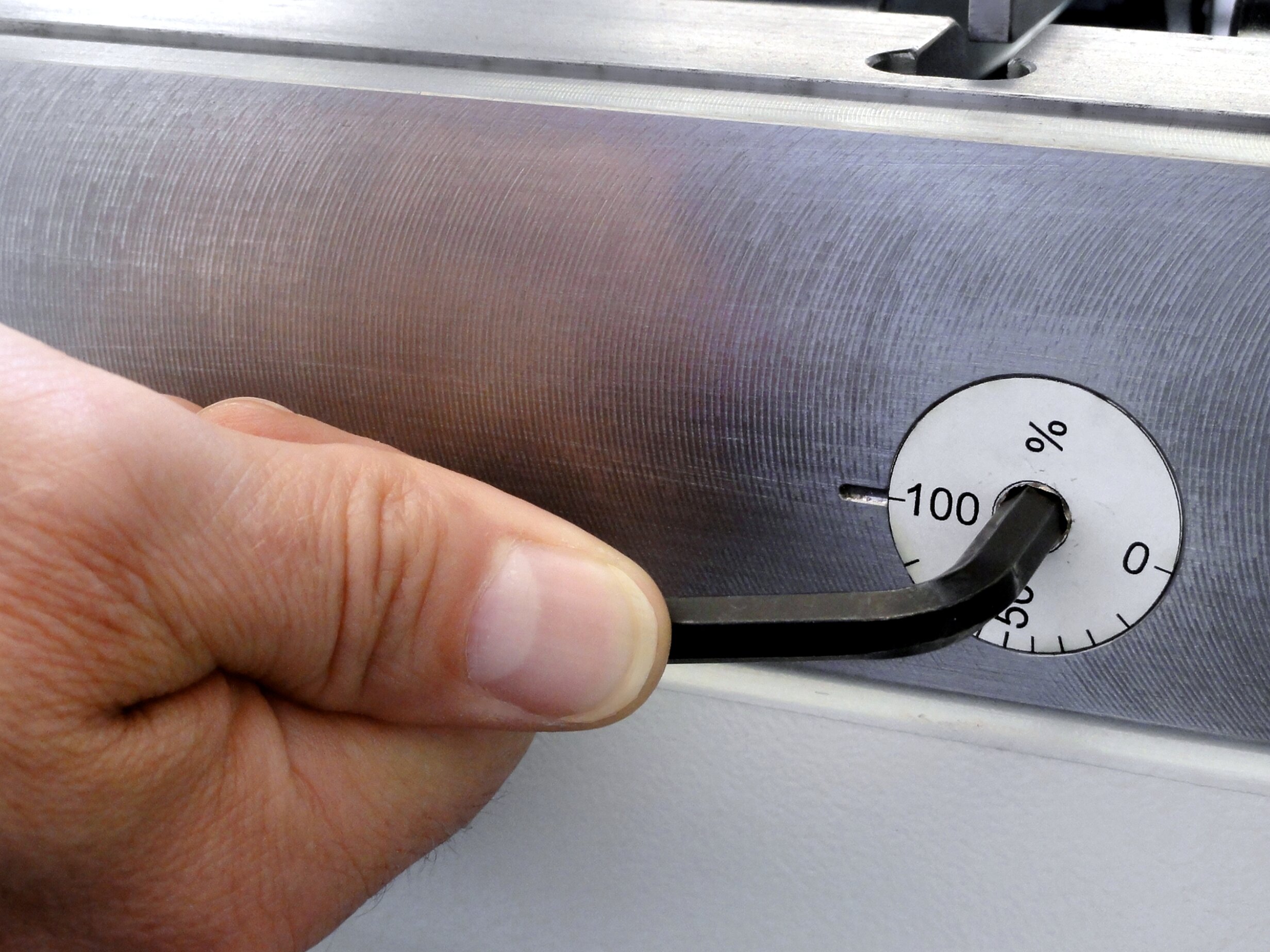

- CrownTool with adjustable crowning
- Lower beam tool with finger pockets

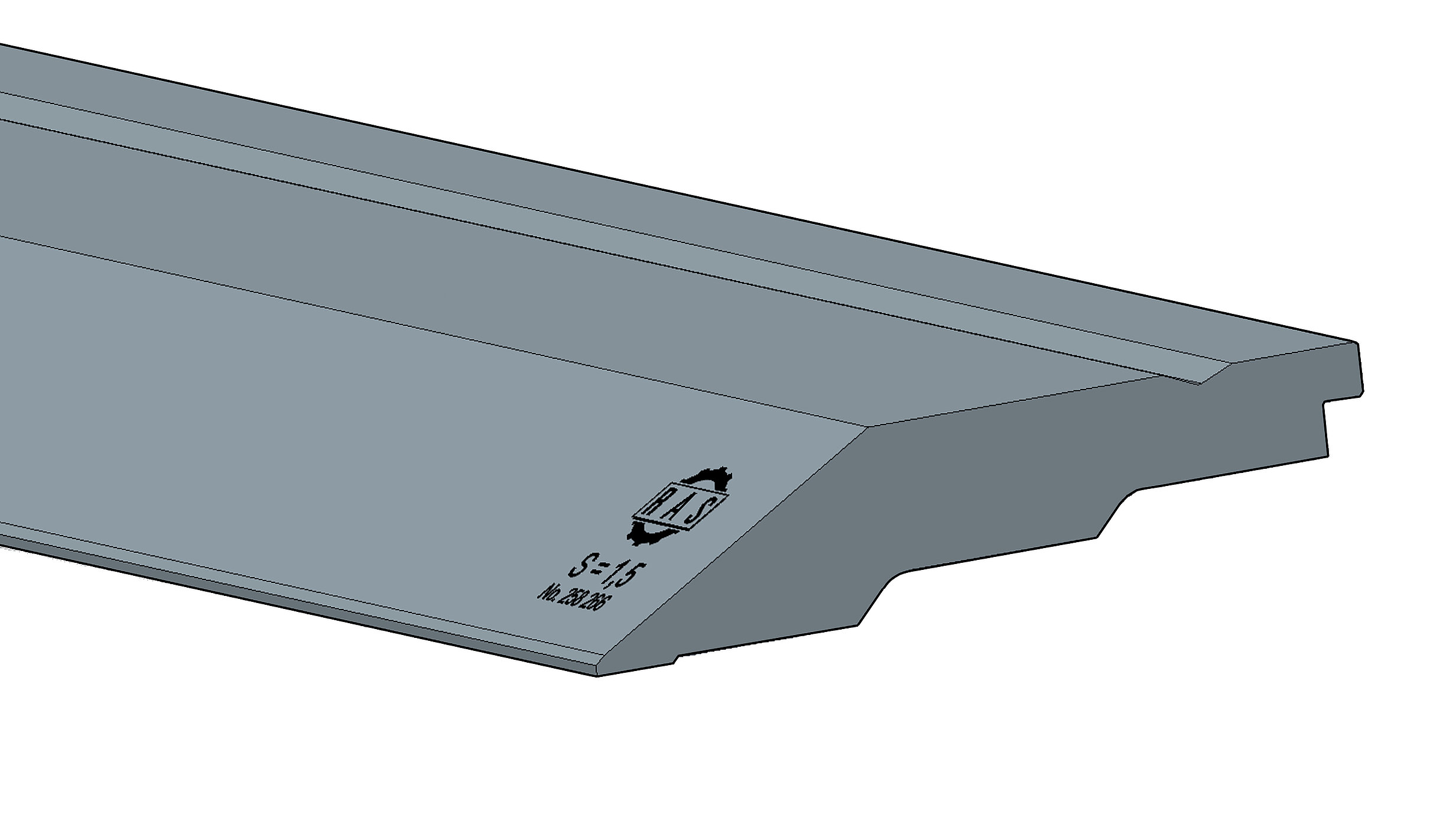

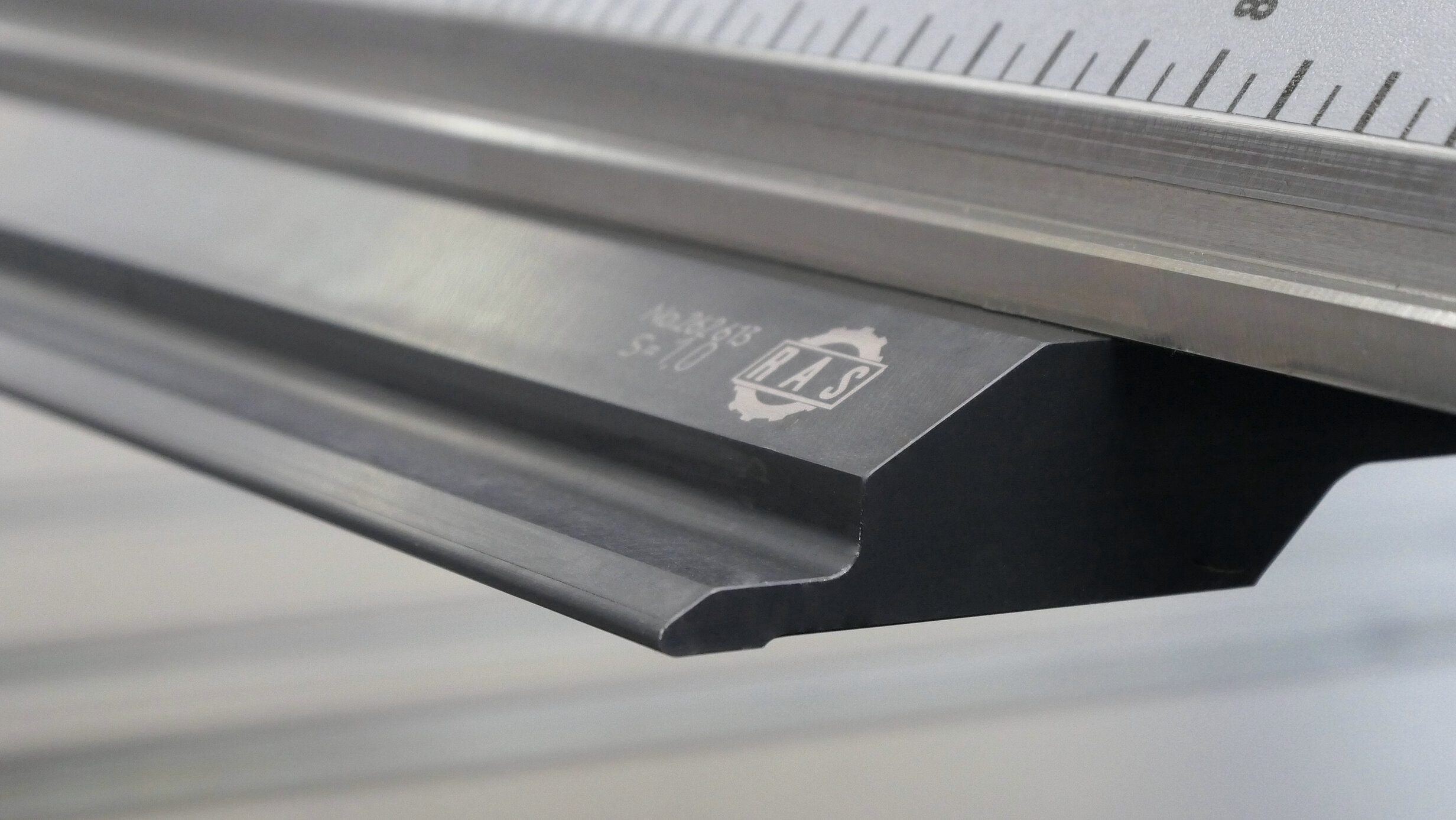

Special Tools

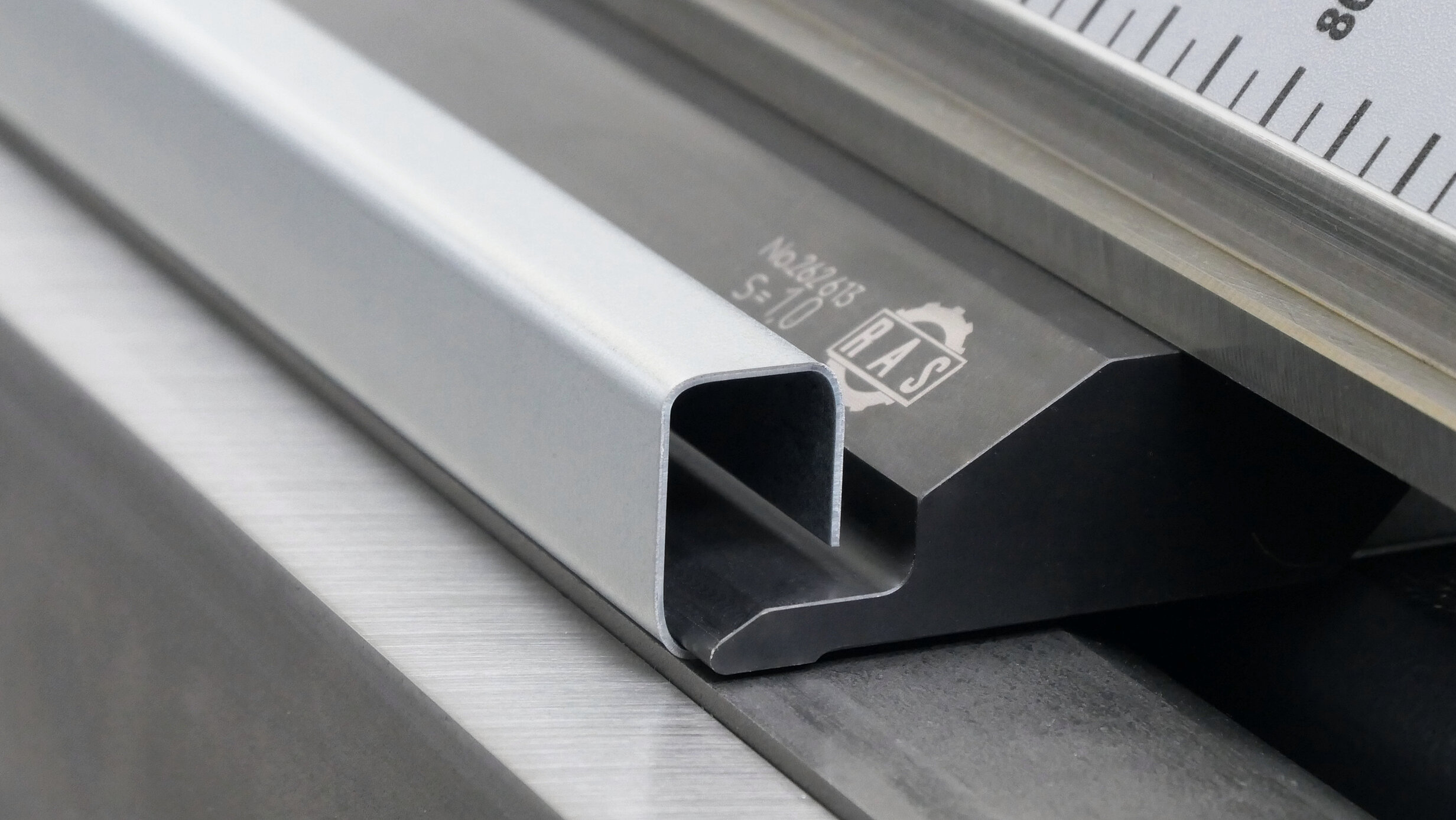

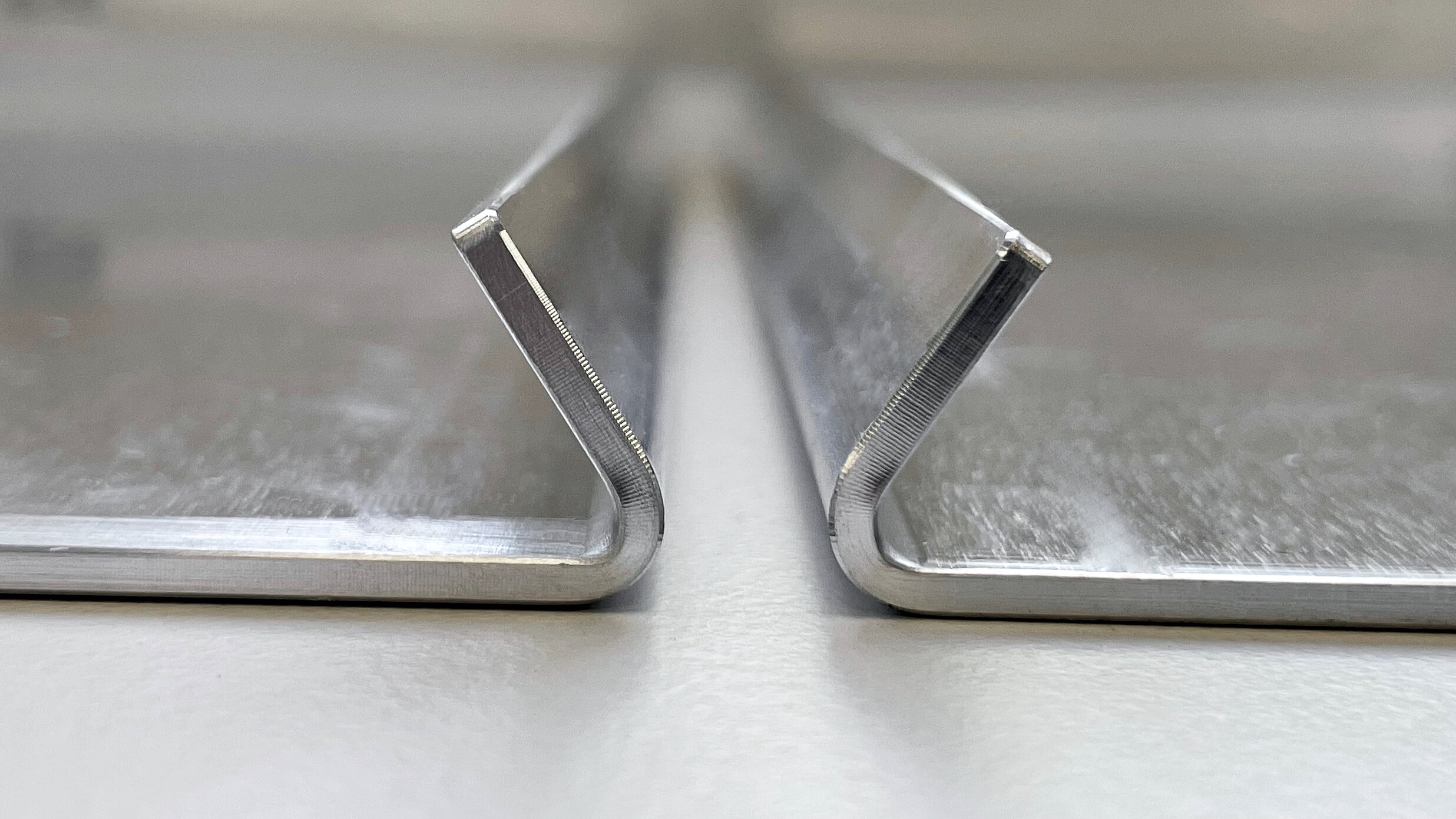

If only profiles are bent, a continuous sharp or radius tool in the upper beam is sufficient to bend almost any geometries. For four-sided panels, segmented tools are needed. If a special tool is required due to the part geometry, RAS manufactures customized tools for the upper beam and folding beam according to job requirements.

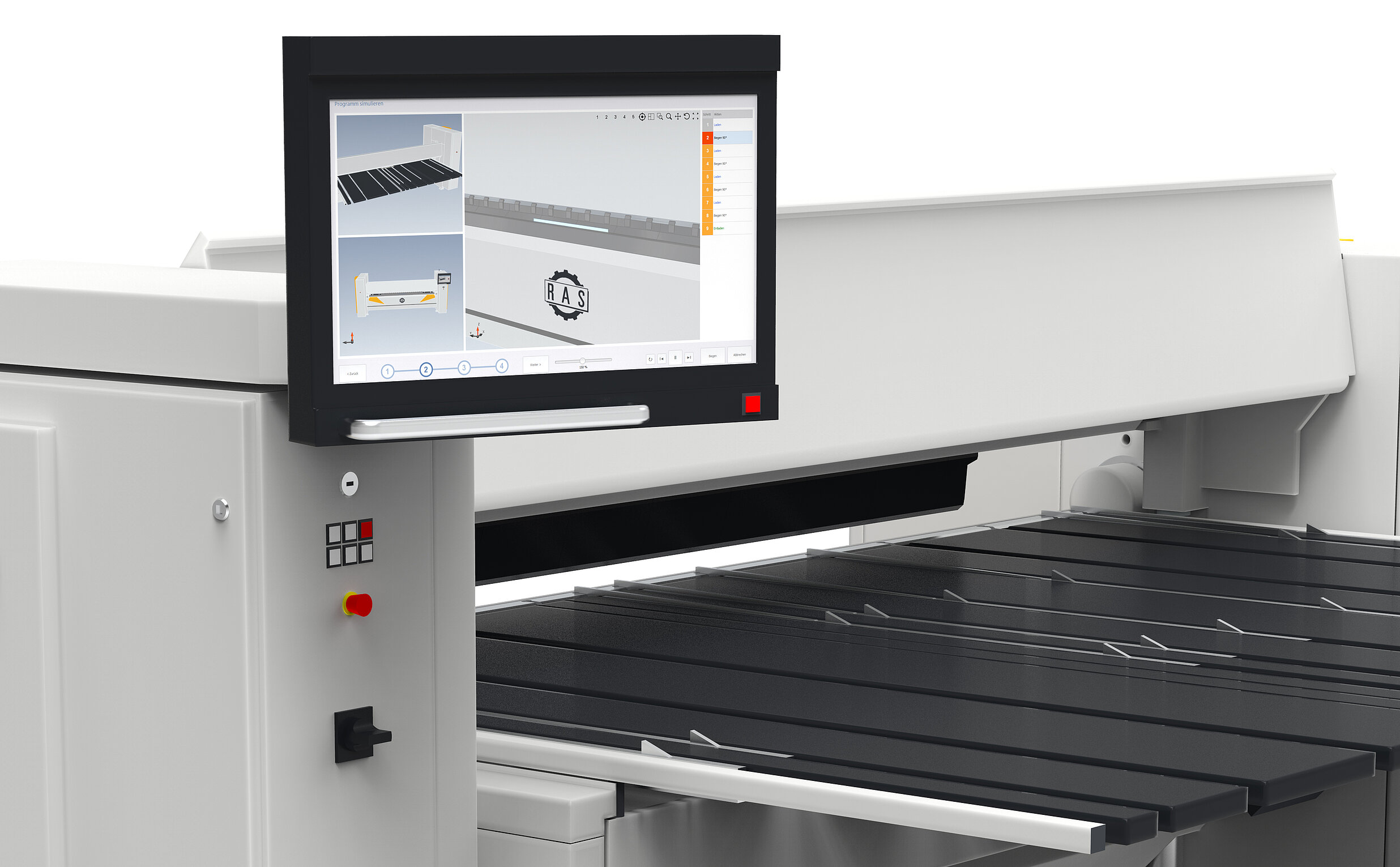

Bendex graphic programs the bending sequence

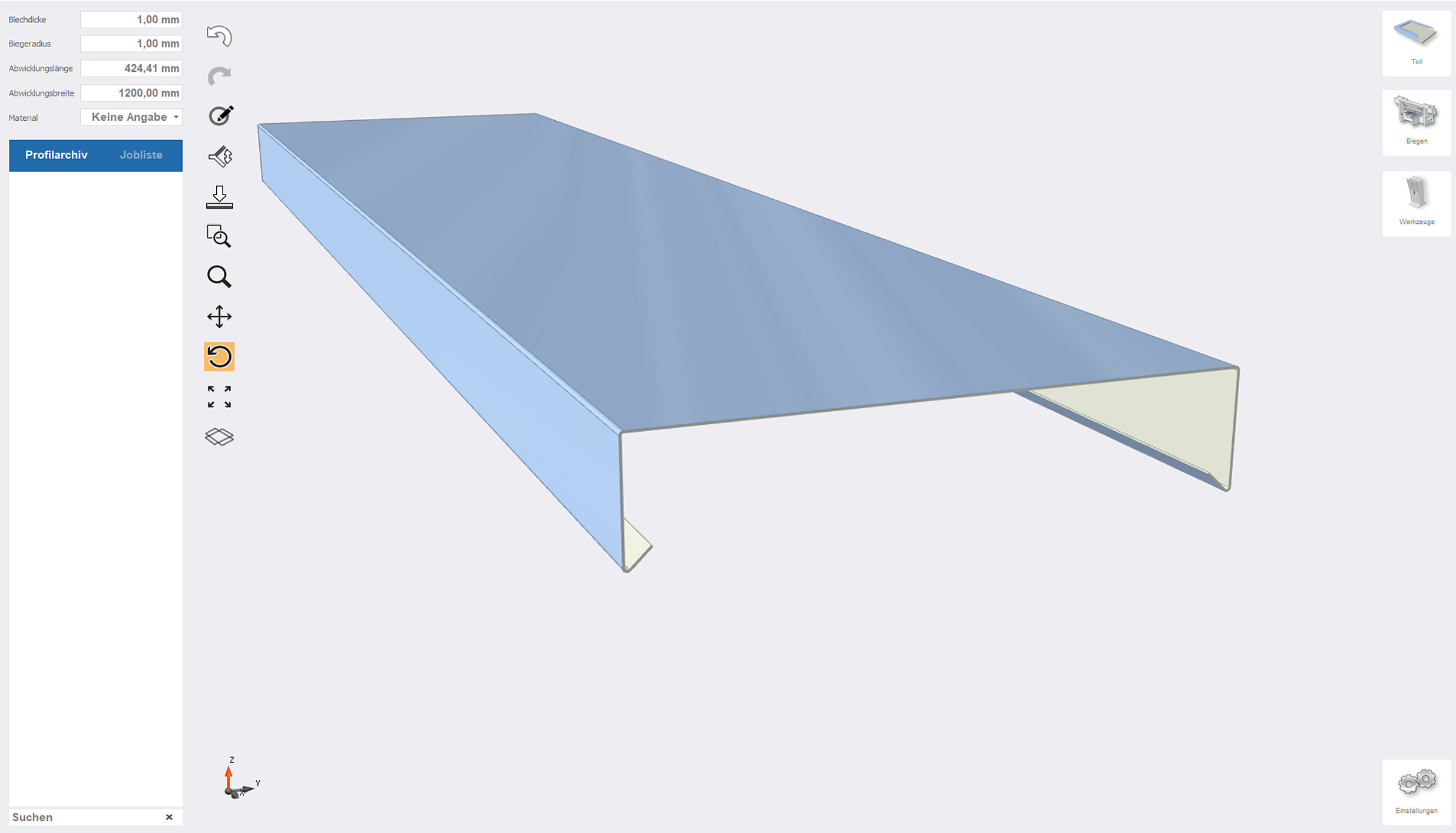

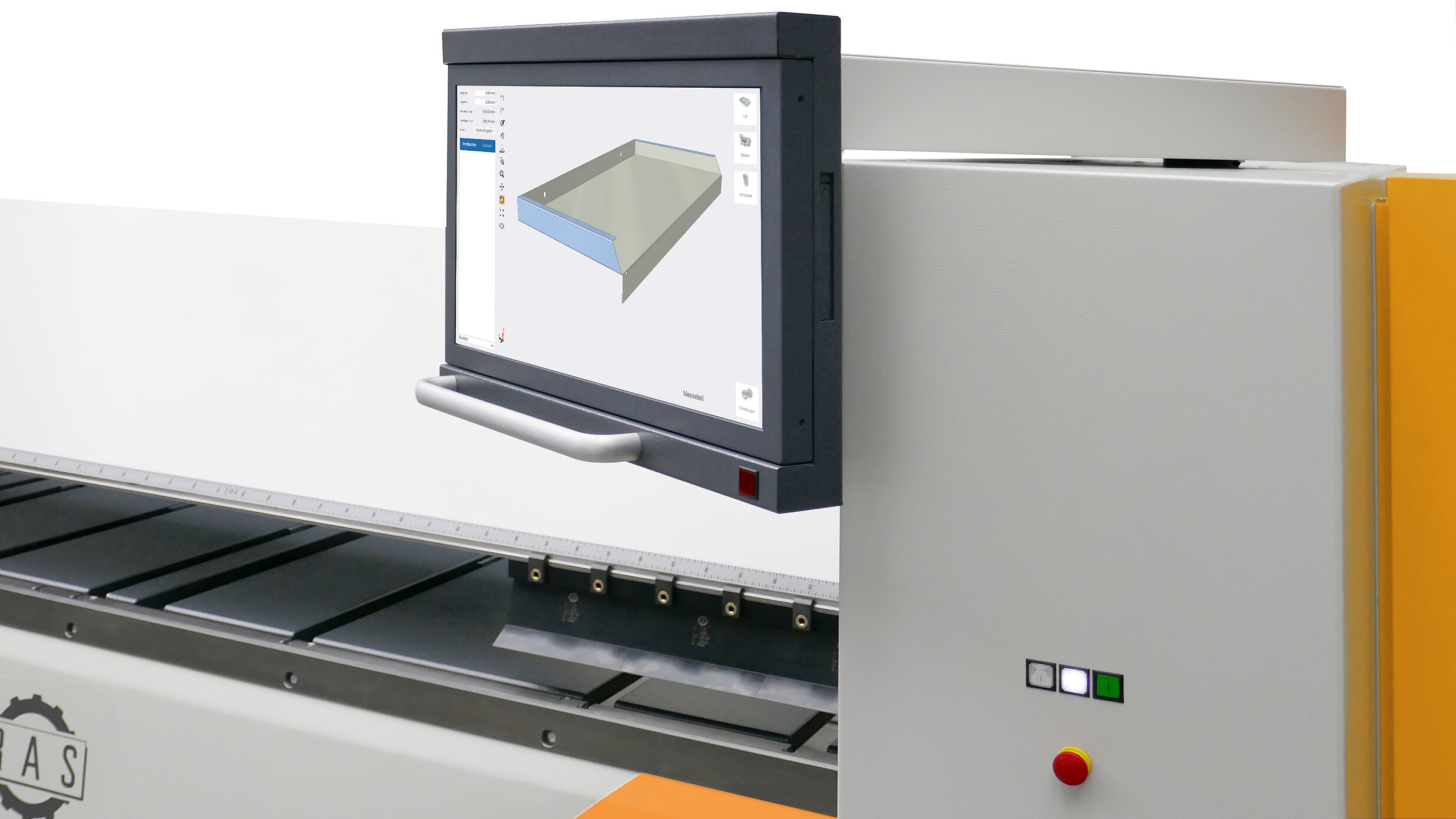

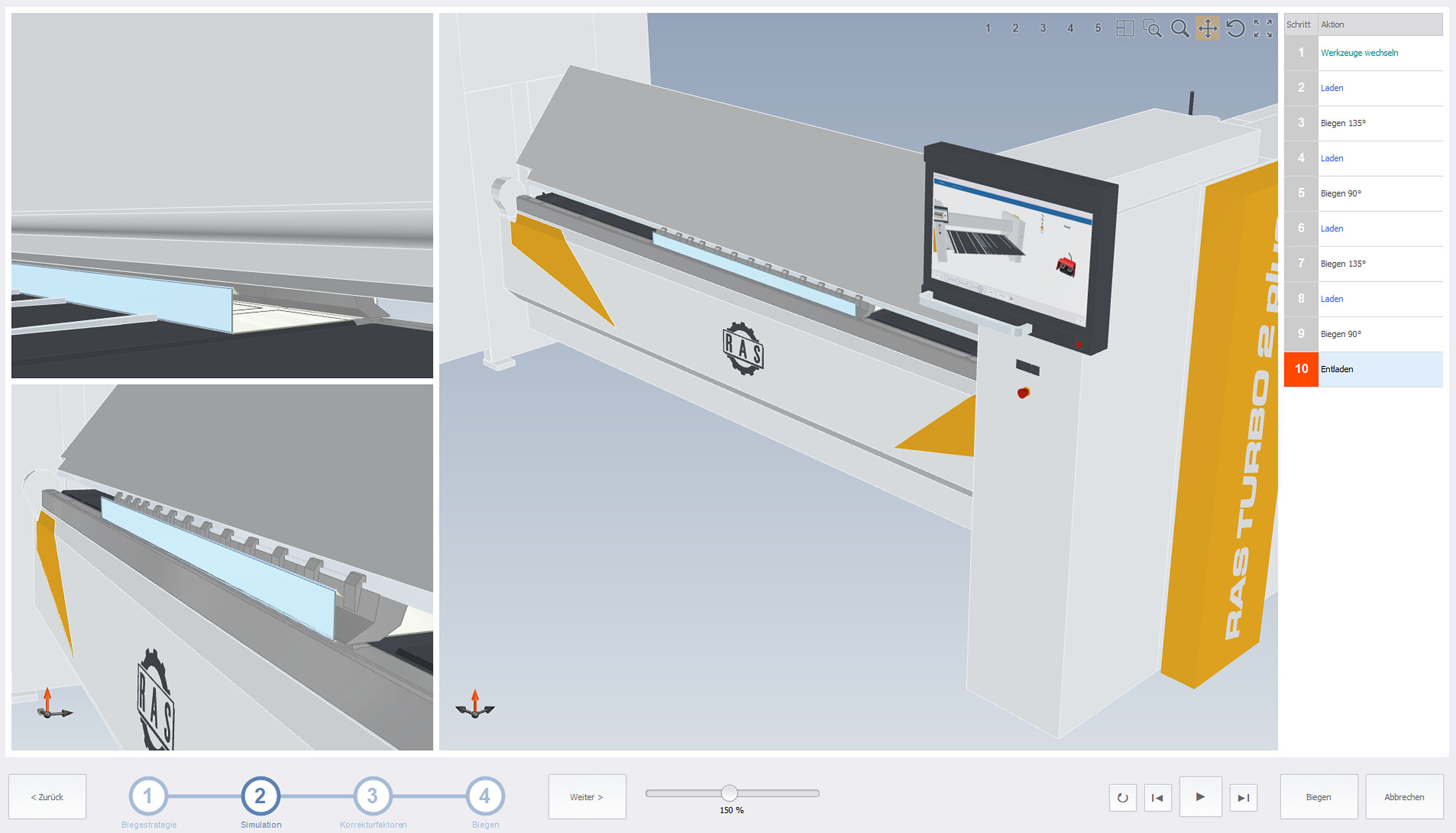

The Bendex software programs the bending sequence automatically. Just use your finger and draw the part on the machine's touch monitor. Alternatively, the part can also be drawn in the office software or imported as CAD data in STEP, dxf or geo format. With one click, the software programs the entire bending sequence automatically
- Clear display on 24" touch monitor
- Simple creation of profiles and panels
- Exact and error-free transfer of CAD data
- Automatic programming of the bending process
- No expert knowledge required

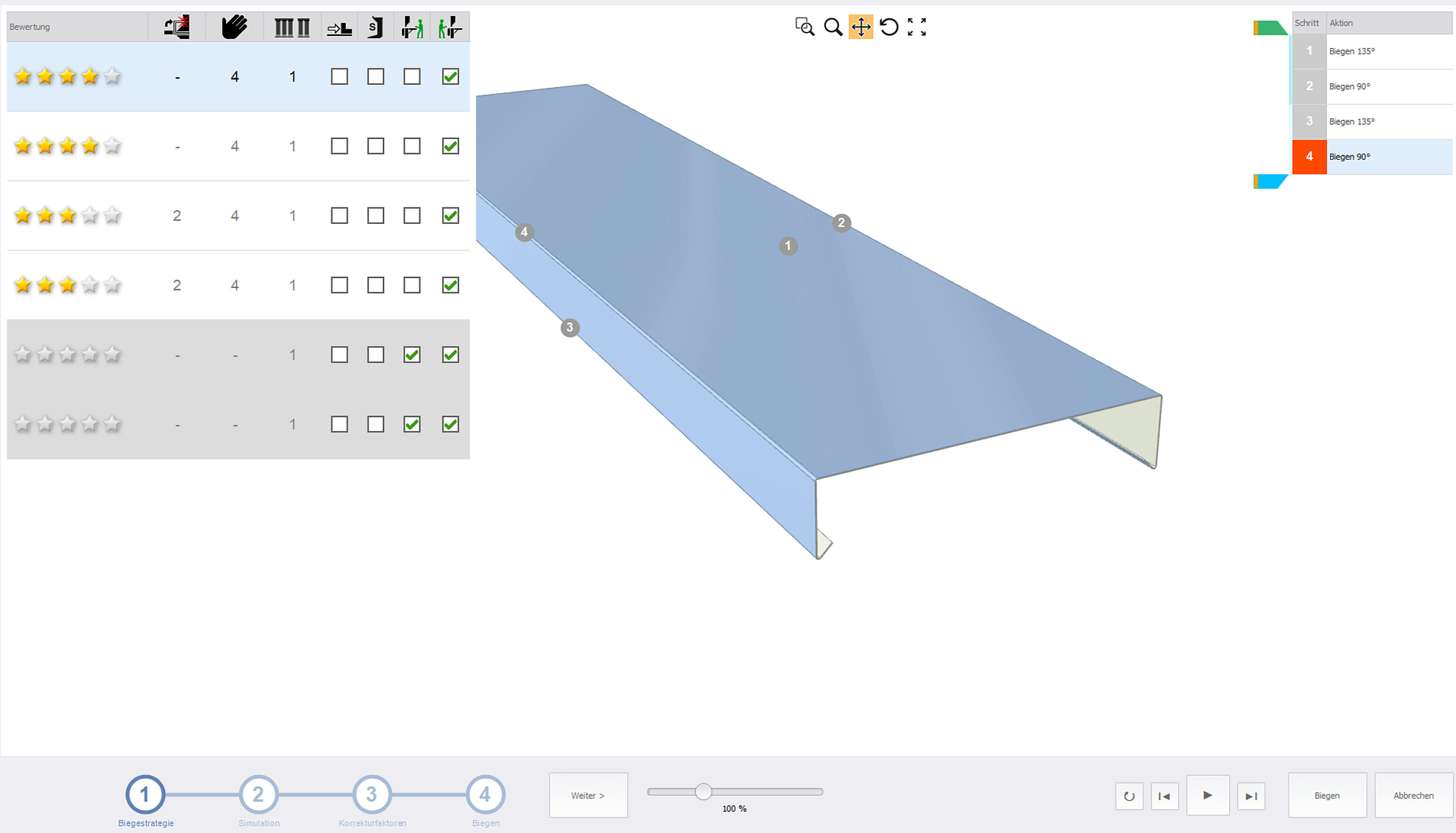

- Software suggestion of the best folding sequence
- 3D simulation of the bending process
- Highest bending accuracy due to material tables
- Loading individual programs or processing job lists
- Online support via TeamViewer

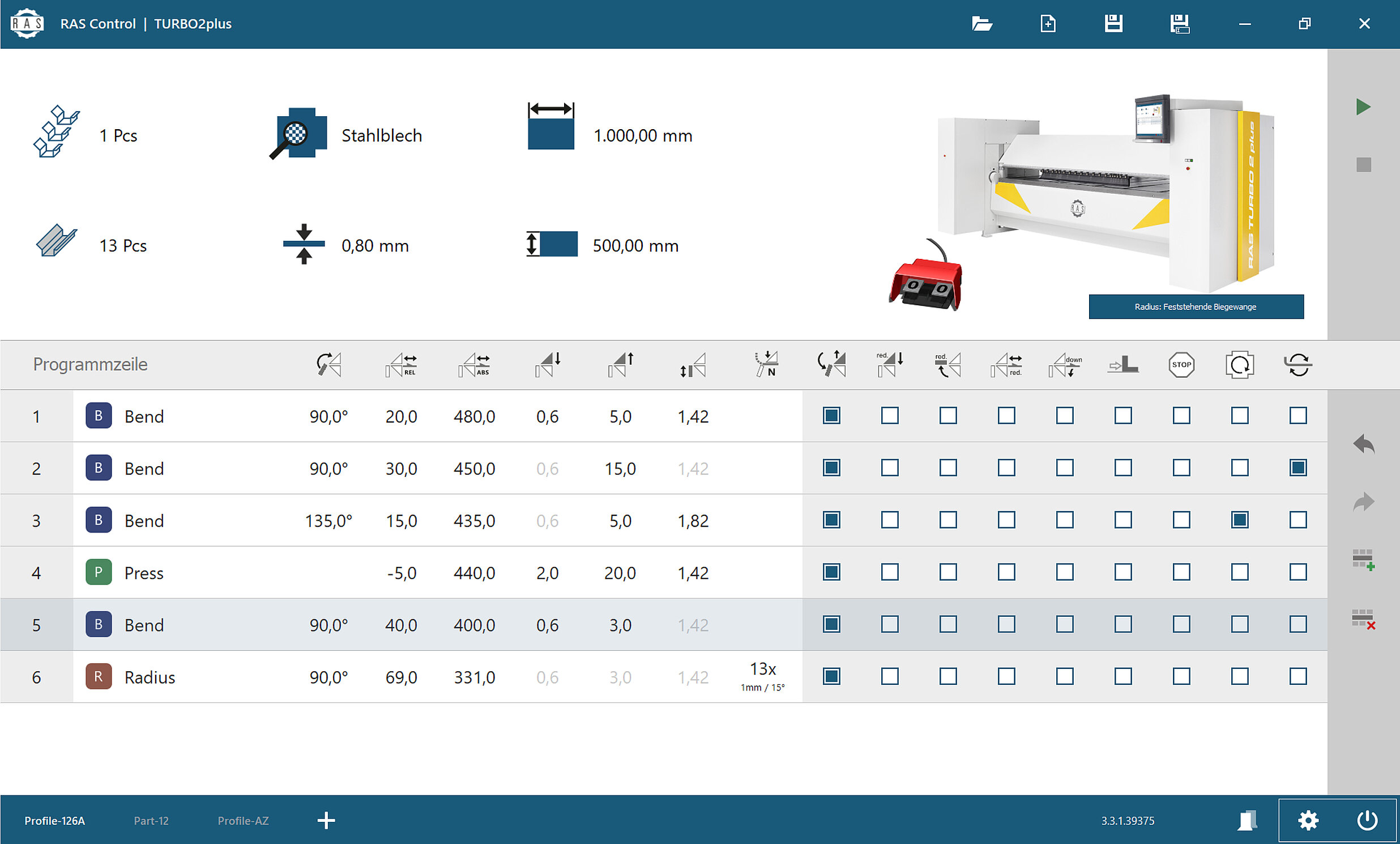

Bendex OpenEditor

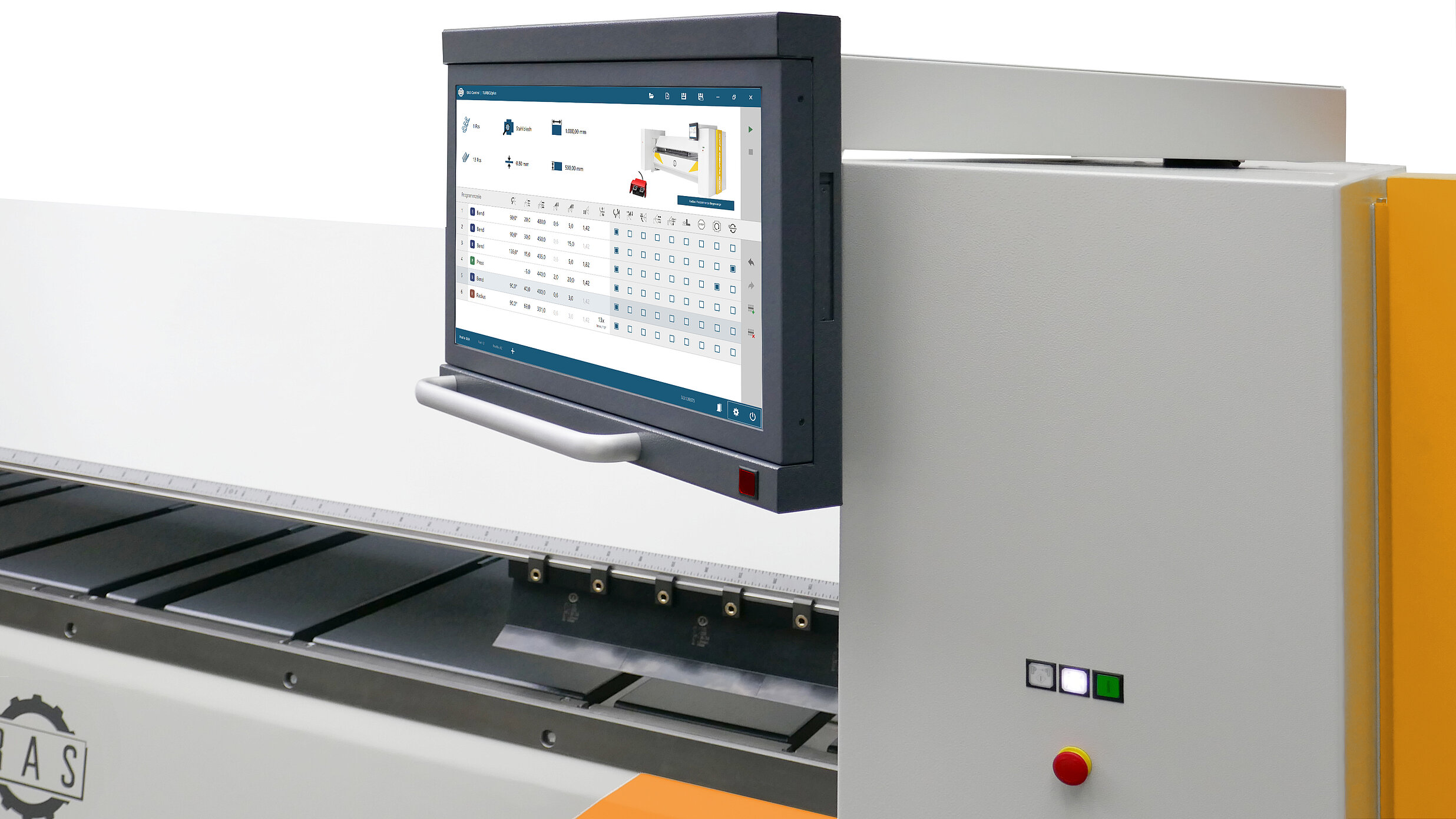

With the additional OpenEditor input, operators at the machine can individually program any machine movement and bending sequences entirely according to their preferences.
- Clear display on 24" touch monitor
- Large input fields
- Line-by-line input of normal bends, hems and radii
- Display functions such as part rotation and flipping available
- Lowering of fingers for part rotating possible
- Reduced speeds selectable
- Automatic folding beam adjustment
- Tools selectable for sensor height detection
- Highest bending quality due to pre-defined material tables
- Programs can be saved
 |
RAS 62.25-2 |
RAS 62.30-2 |
RAS 62.40-2 |
|---|---|---|---|
| Working length | 2540 mm / 100" | 3200 mm / 126" | 4060 mm / 160" |
| Material thickness max (400 N/mm²) | 2.5 mm / 13 ga | 2,0 mm / 14 ga | 1,5 mm |
| Upper beam upstroke max | 280 mm / 11" | 280 mm / 11" | 280 mm |
| Gauging system (rectangular) | 0.236"–61" | 6–1550 mm / 0.236"–61" | 6–1550 mm |
| Gauging system (T-shape) | 0.236"–120" | 6–3050 mm / 0.236"–120" | 6–4050 mm |
| Auto material thickness adjustment | yes | yes | ja |
| Auto tool height recognition | yes | yes | ja |
| Programming | automatic | automatic | automatisch |
| Machine dimensions (rectangular) | 3650 x 2600 mm /144" x 103" | 4320 x 2600 mm / 170" x 103" | 5175 x 2520 mm |
| Machine dimensions (T-shape) | 3650 x 4000 mm / 144" x 158" | 4320 x 4000 mm / 170" x 158" | 5175 x 5100 mm |
Success stories with TURBO2plus
TeksignSigns of changing times
Teksign wanted to update its bending processes. The sign manufacturer out of Brantford, Ontario had to decide what technology made the most sense for its high-mix/low-volume production needs. The company finally decided for a CNC metal folder RAS TURBO2plus and was able to increase throughput and simplify operations.
weiterlesen
