Two speed ranges
for high productivity and
sensitive forming
RAS 11.15 / RAS 11.35 Swaging Machines

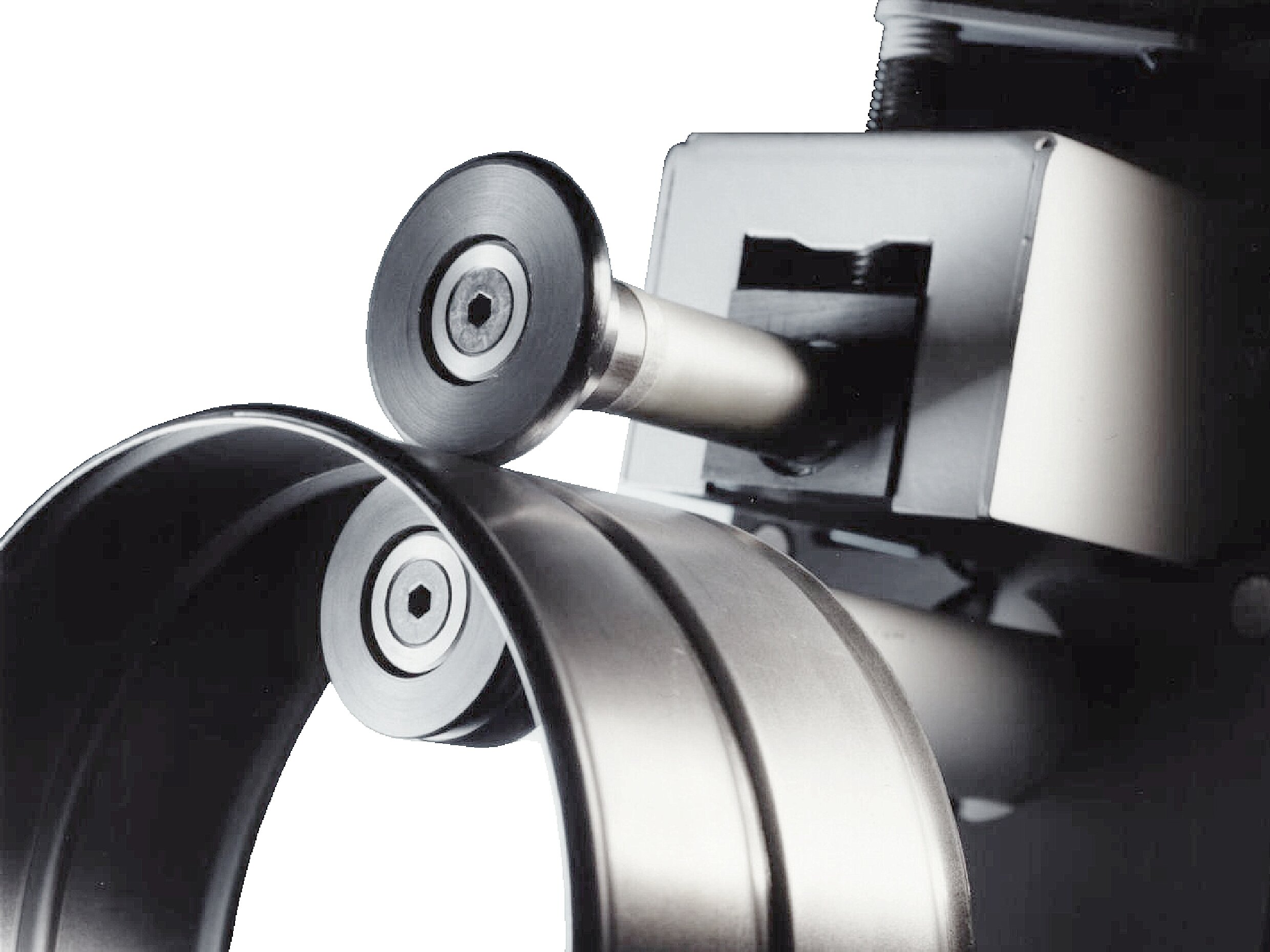

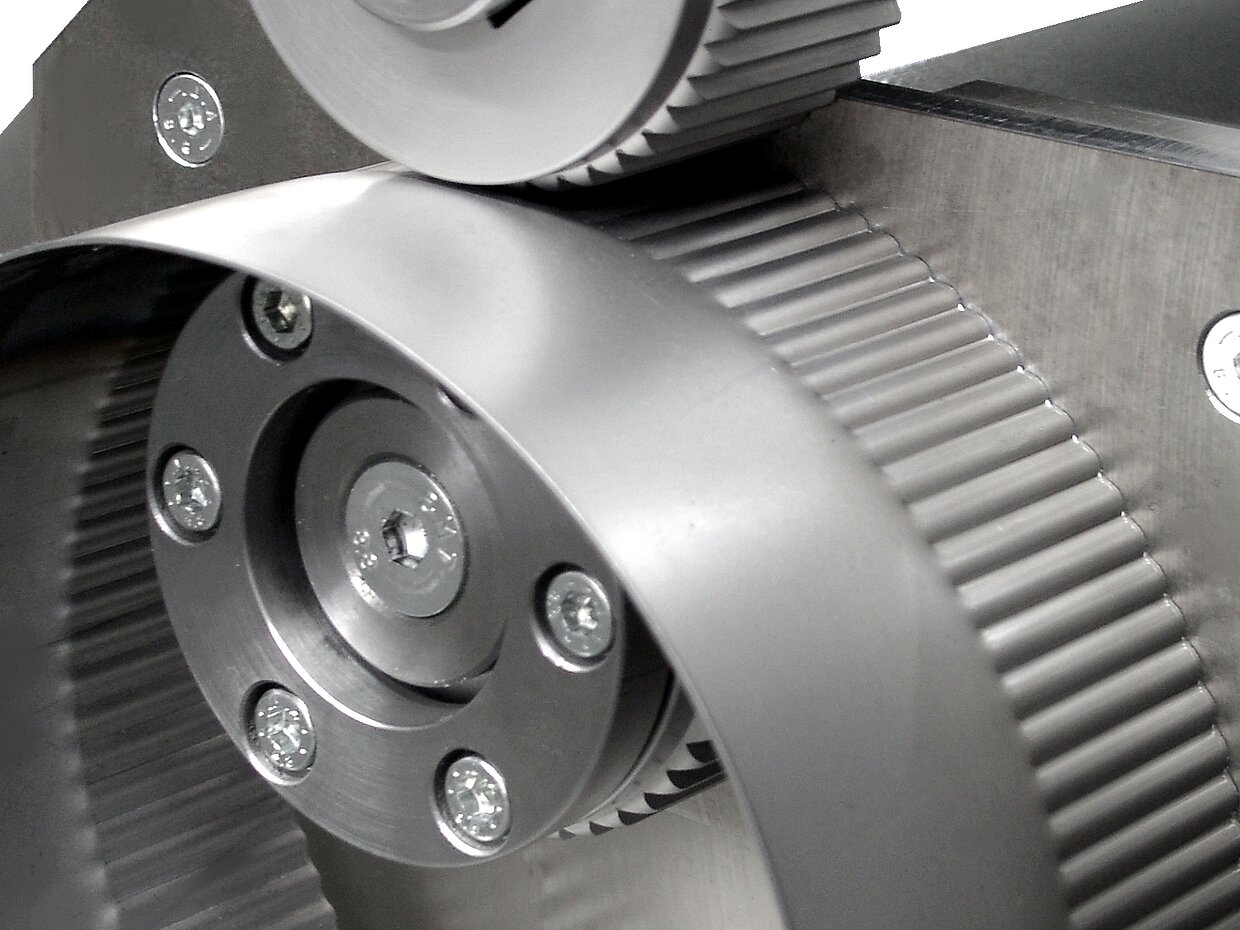

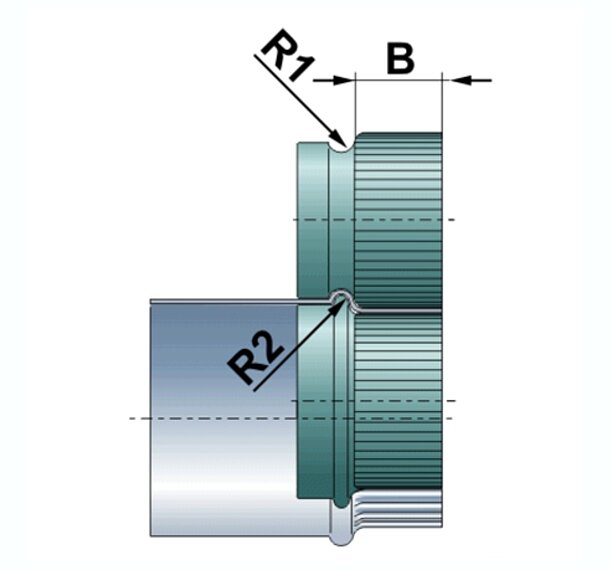

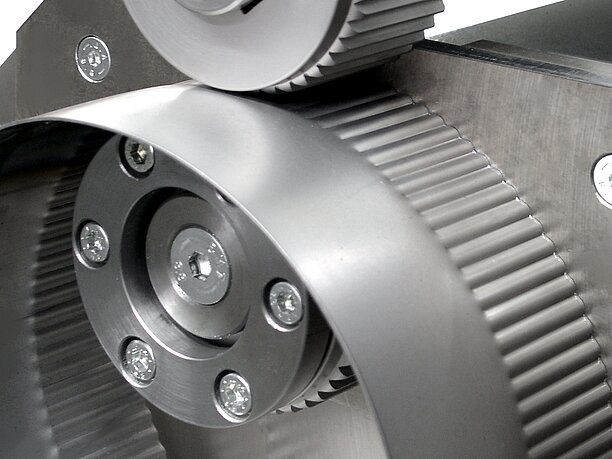

Swaging Machine RAS 11.35: Swaging wheel...

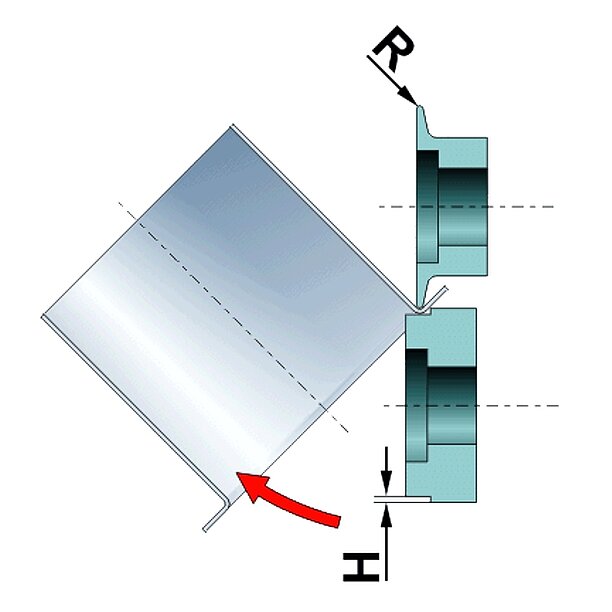

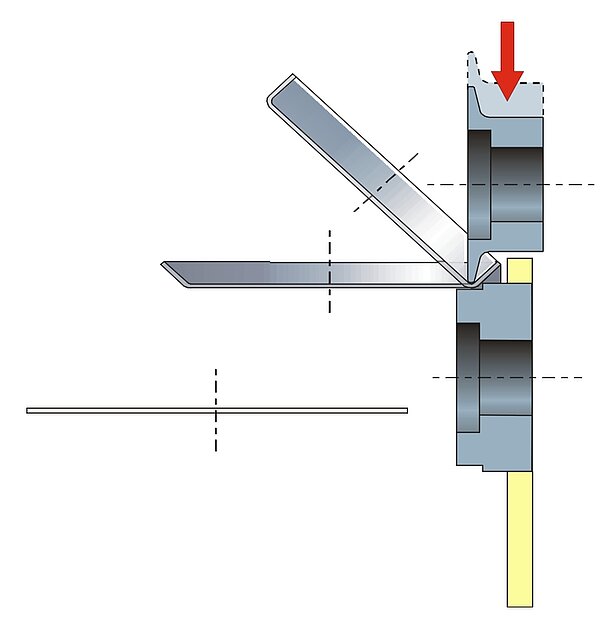

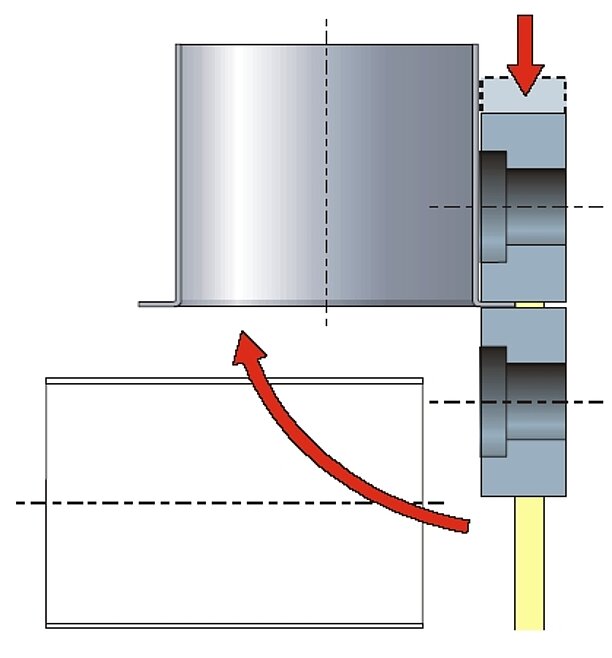

Swaging Machine RAS 11.35: Flanging whee...
Swaging Machine RAS 11.35: Chamfering wh...
Swaging machine RAS 11.35

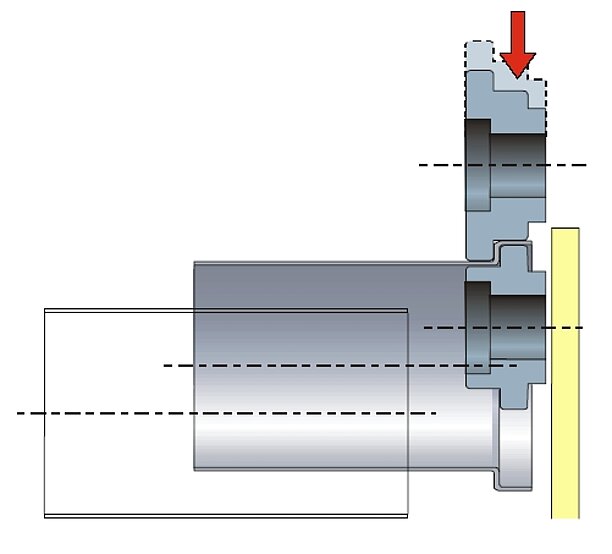

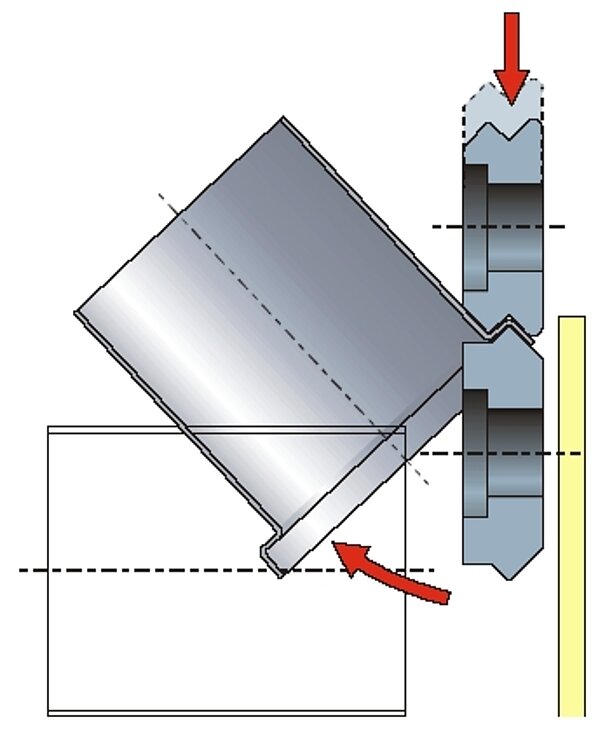

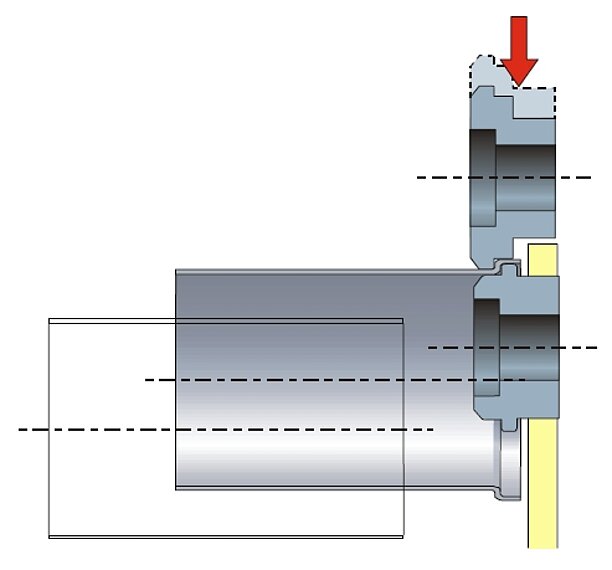

RAS 11.35: 90° flange with double seamin...
Swaging Machine RAS 11.35: Pipe with lid

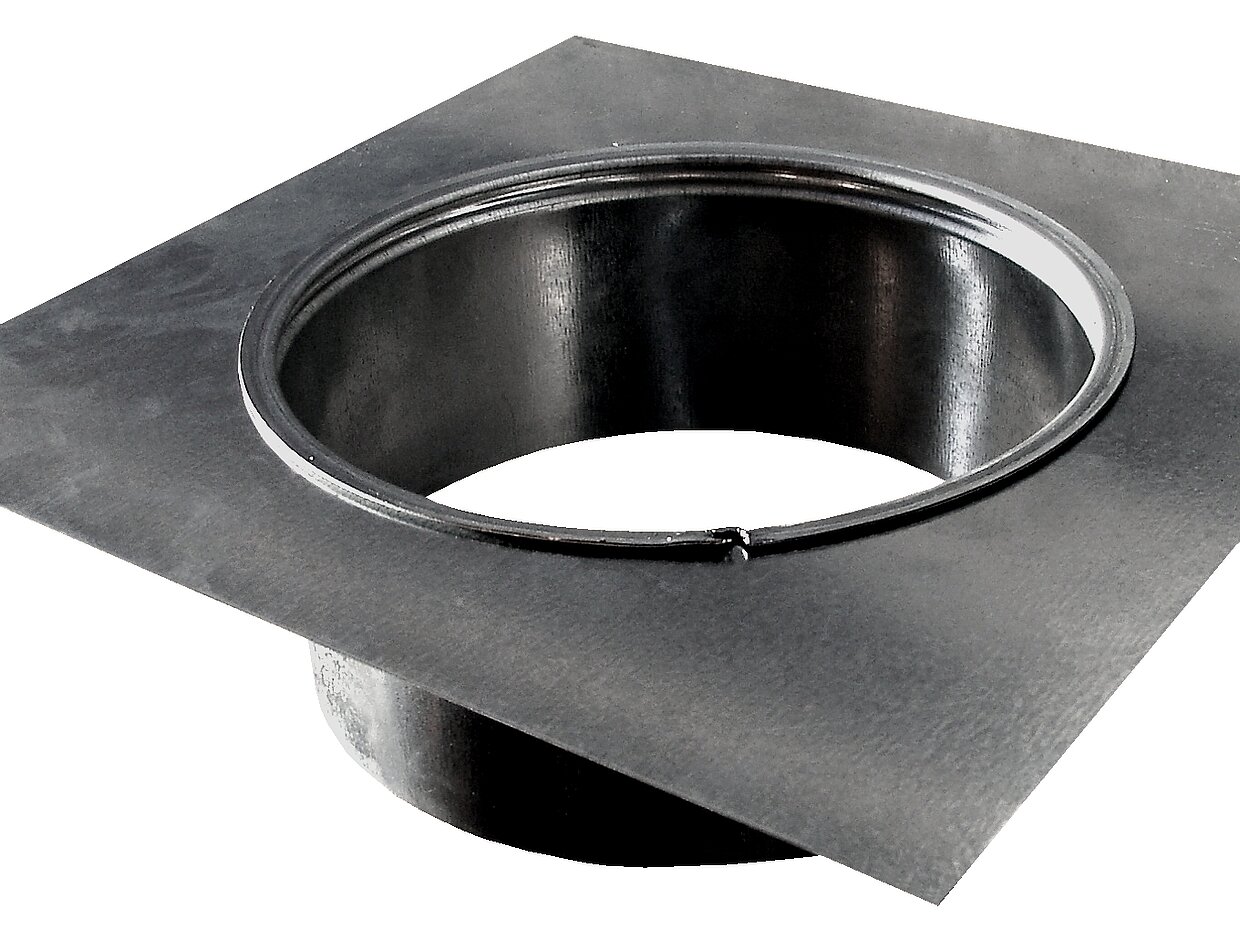

Swaging Machine RAS 11.35: Flange on pip...

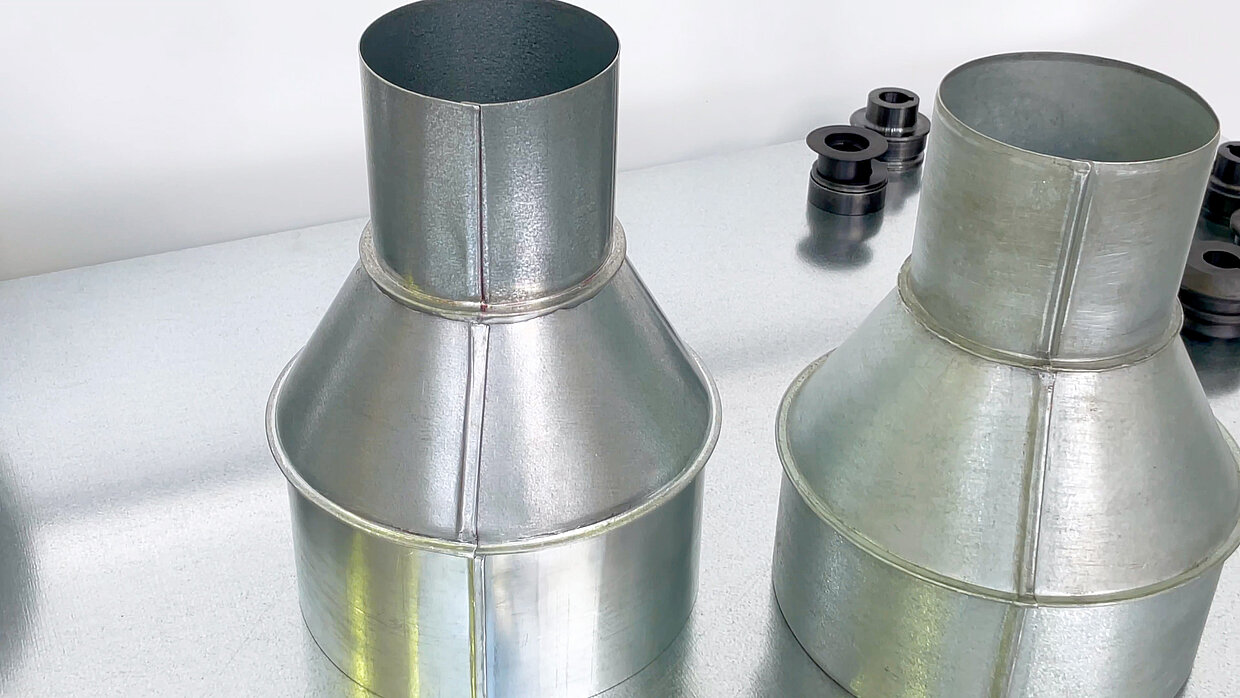

Swaging Machine RAS 11.35 Reducer with f...

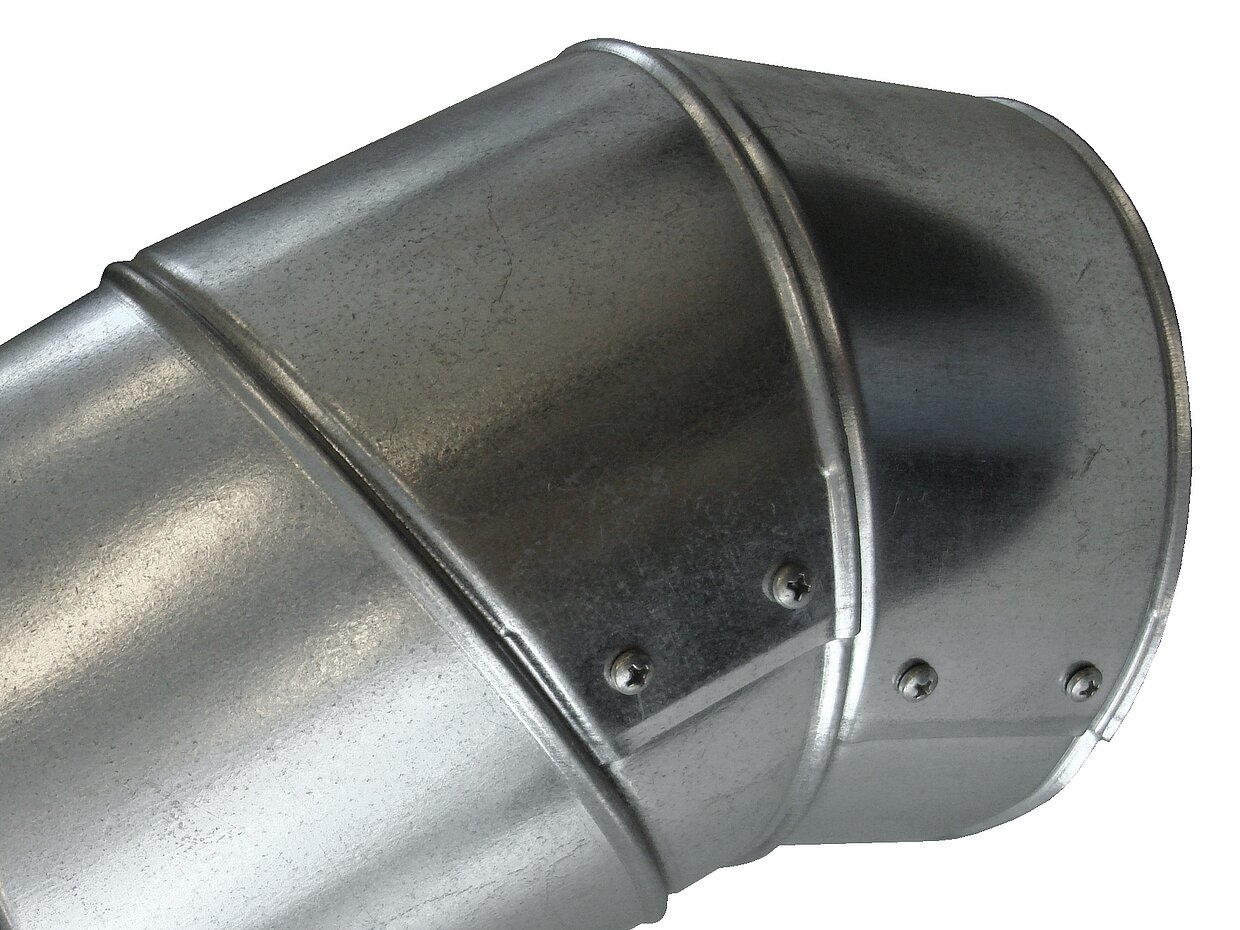

Swaging Machine RAS 11.35: Inclined tube...

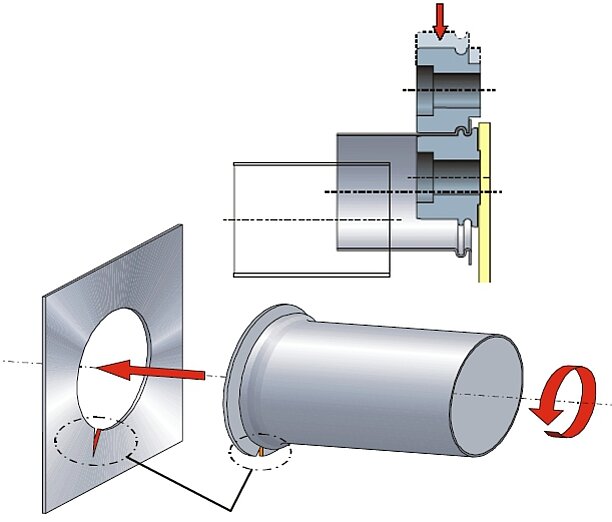

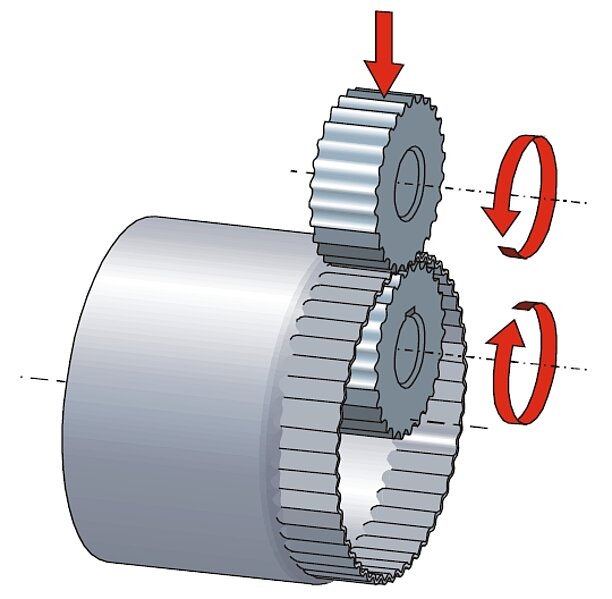

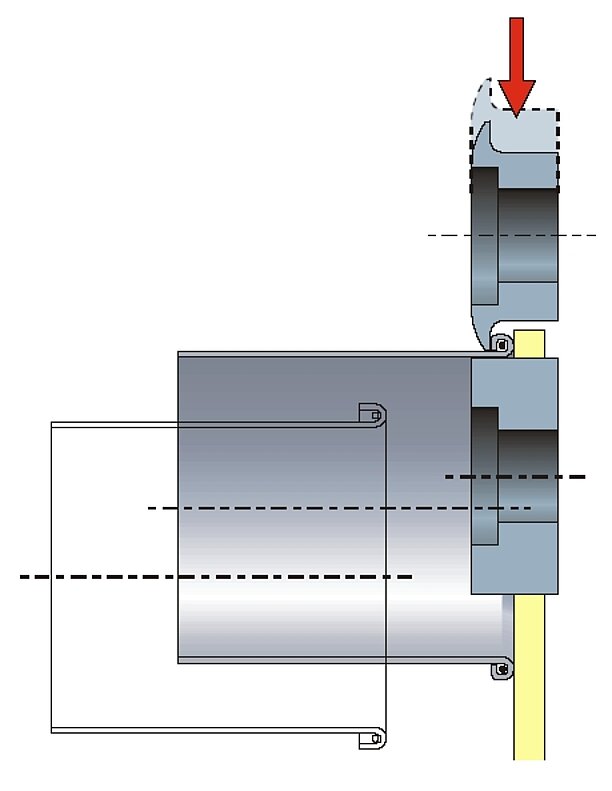

Swaging Machine Connecting pipe to meta...
Swaging Machine RAS 11.35: Joining pipes

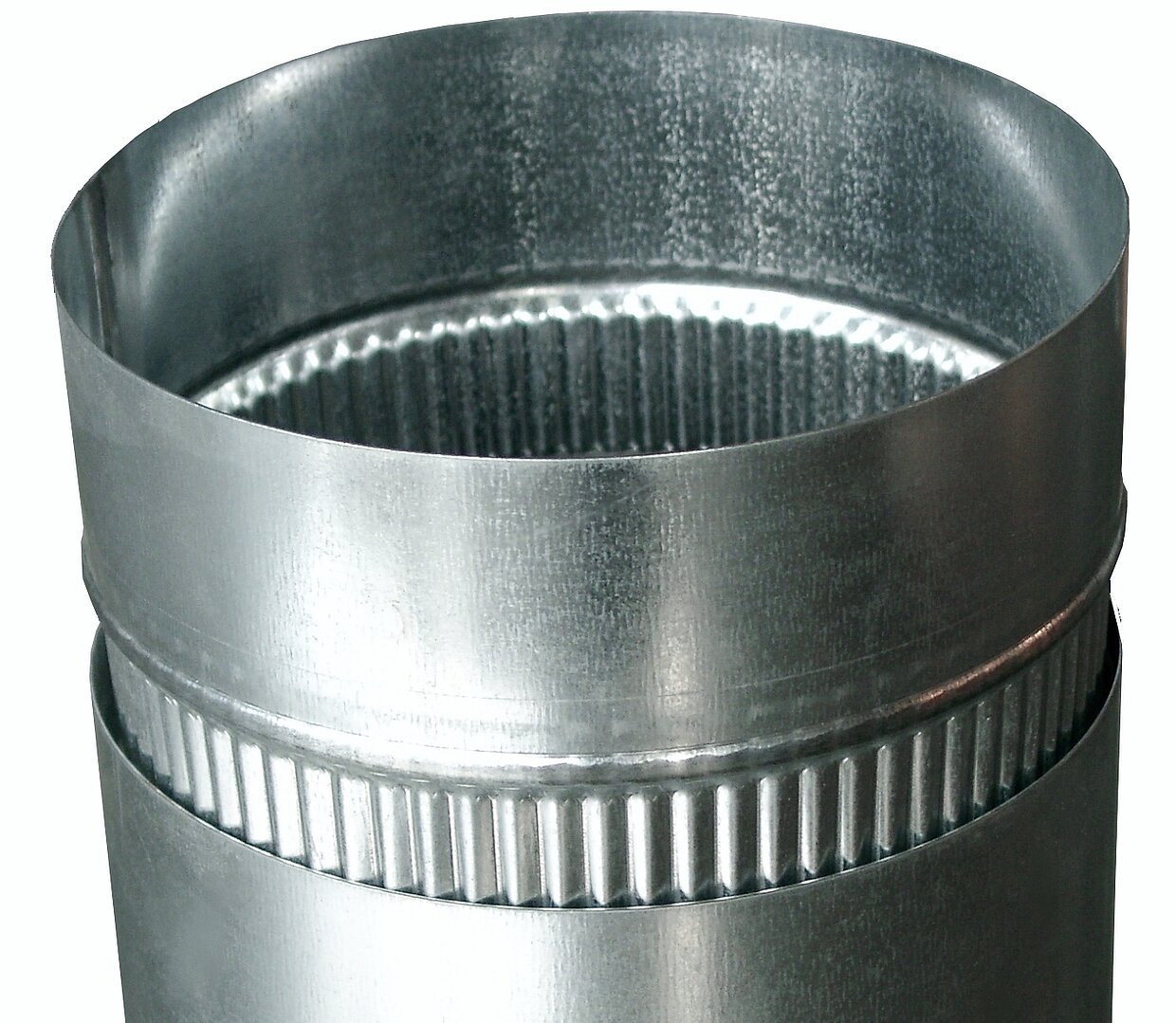

RAS 11.35: Connecting pipes with Crimpin...
Swaging Machine RAS 11.35: Straight sadd...

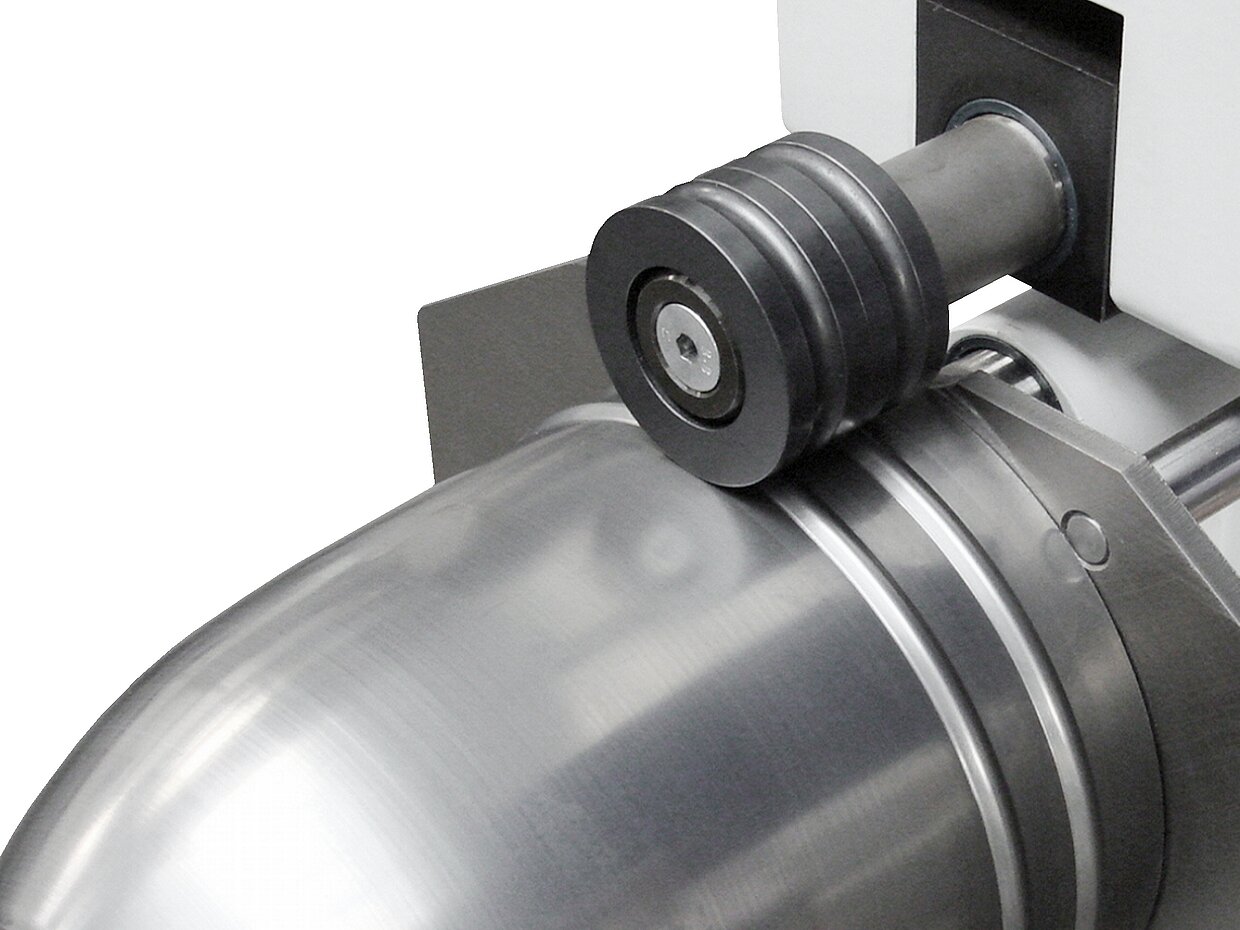

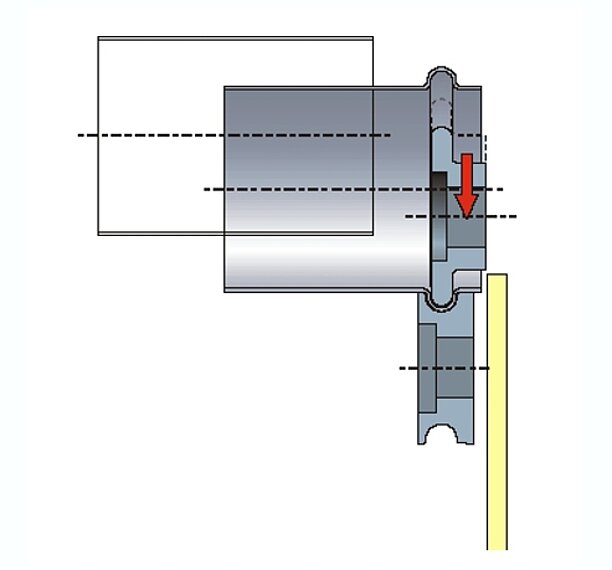

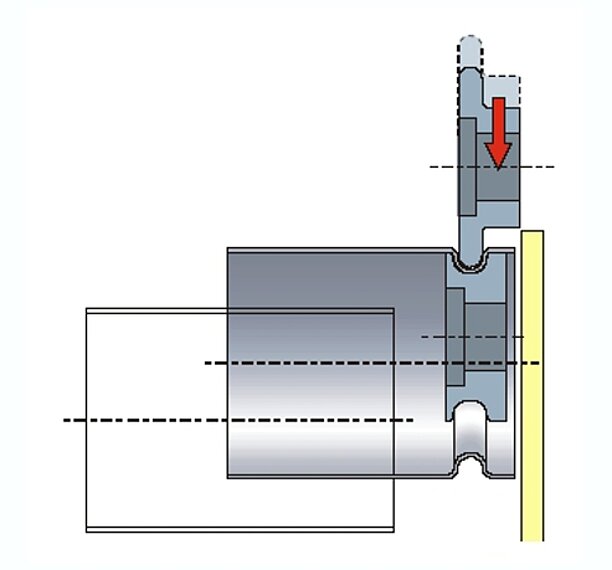

Swaging Machine RAS 11.35 Stiffening on ...
Swaging Machine RAS 11.35: Embossing bla...
Machine highlights

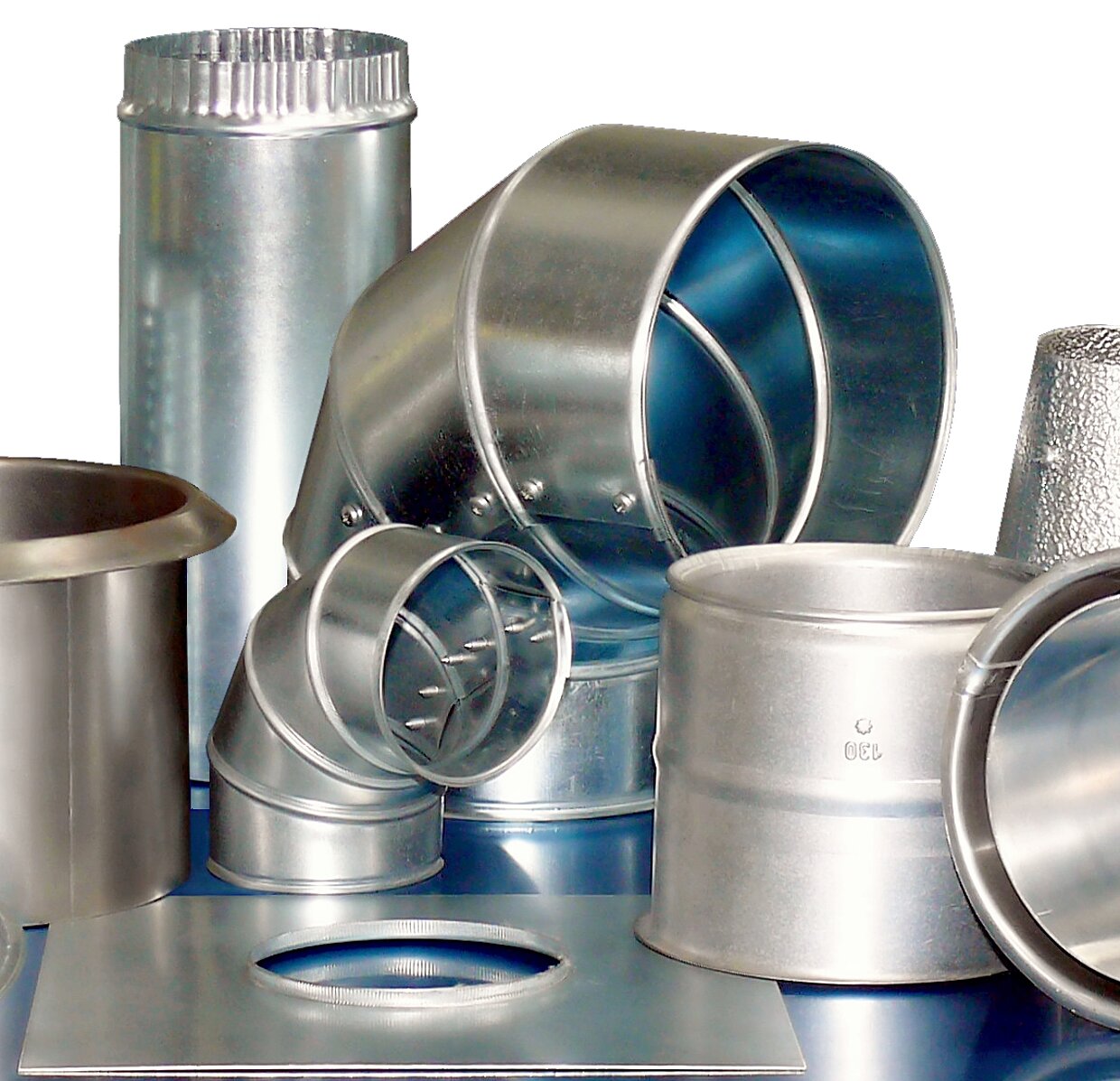

- 9 pairs of wheels for all common swaging applications included
- Suitable for the workshop and the construction site
- Divided stop plate and stops for special applications available

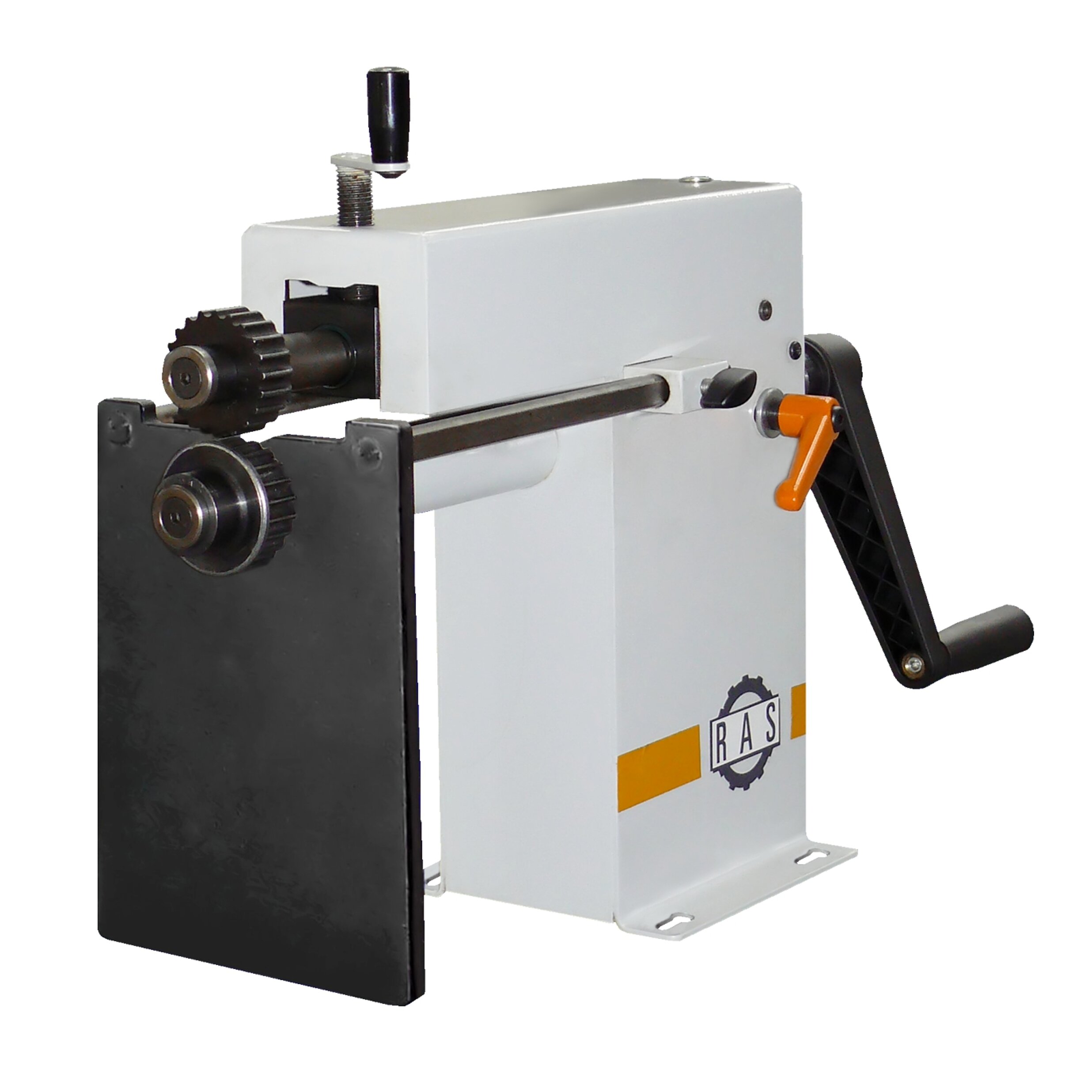

- RAS 11.15 with manual drive
- RAS 11.35 with motor drive and variable speed
- 2 speed ranges for high productivity and sensitive forming
- Left-right-run for non-circulating seams
- Power supply via a normal 220V household socket
- Wheel boxes and wheel key

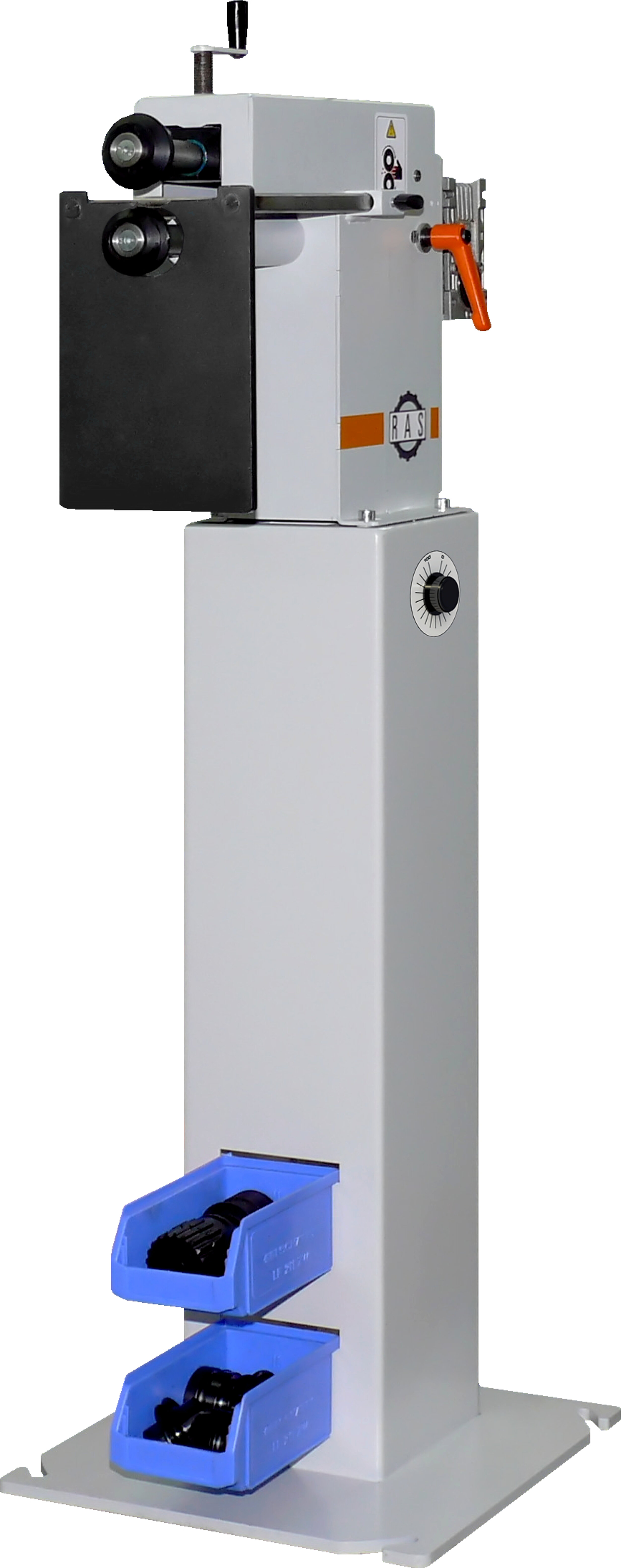

Swaging Machine RAS 11.35
Motor Drive
The RAS 11.35 swaging machine comes on a stand and with 9 sets of wheels for all common applications. On this motor driven machine, the speed can be steplessly adjusted using a poti on the machine stand. Experienced operators choose higher speeds, less trained people prefer the slower speed range. With the foot switch the set speed can be recalled and the rotation of the rolls can be changed for Left-Right-Run.

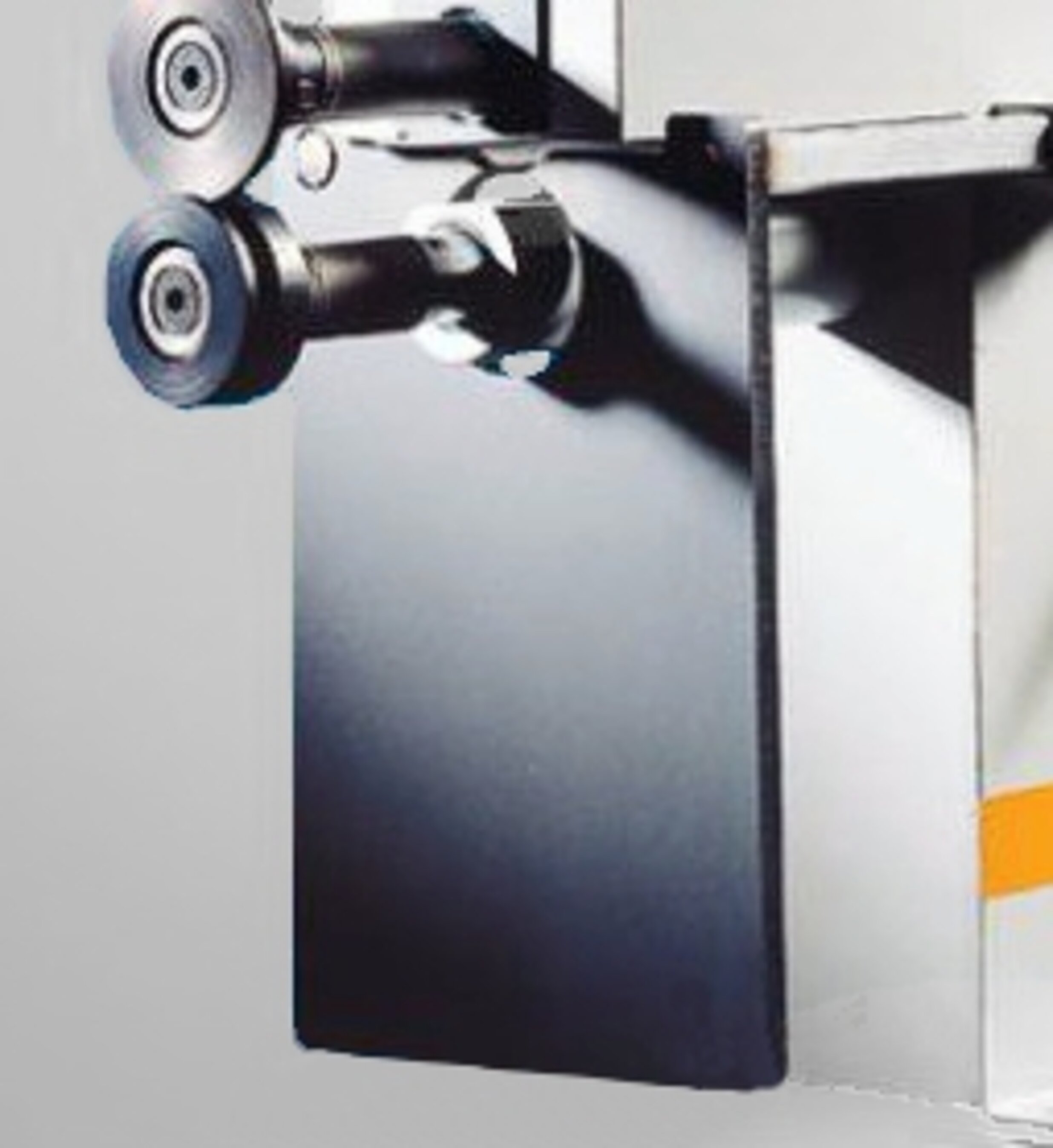

Stop Plate options
The high-strength and extra-large stop plate is designed for the highest demands. In addition, other stop plates are available.
- The divided stop can be used for almost all wheels

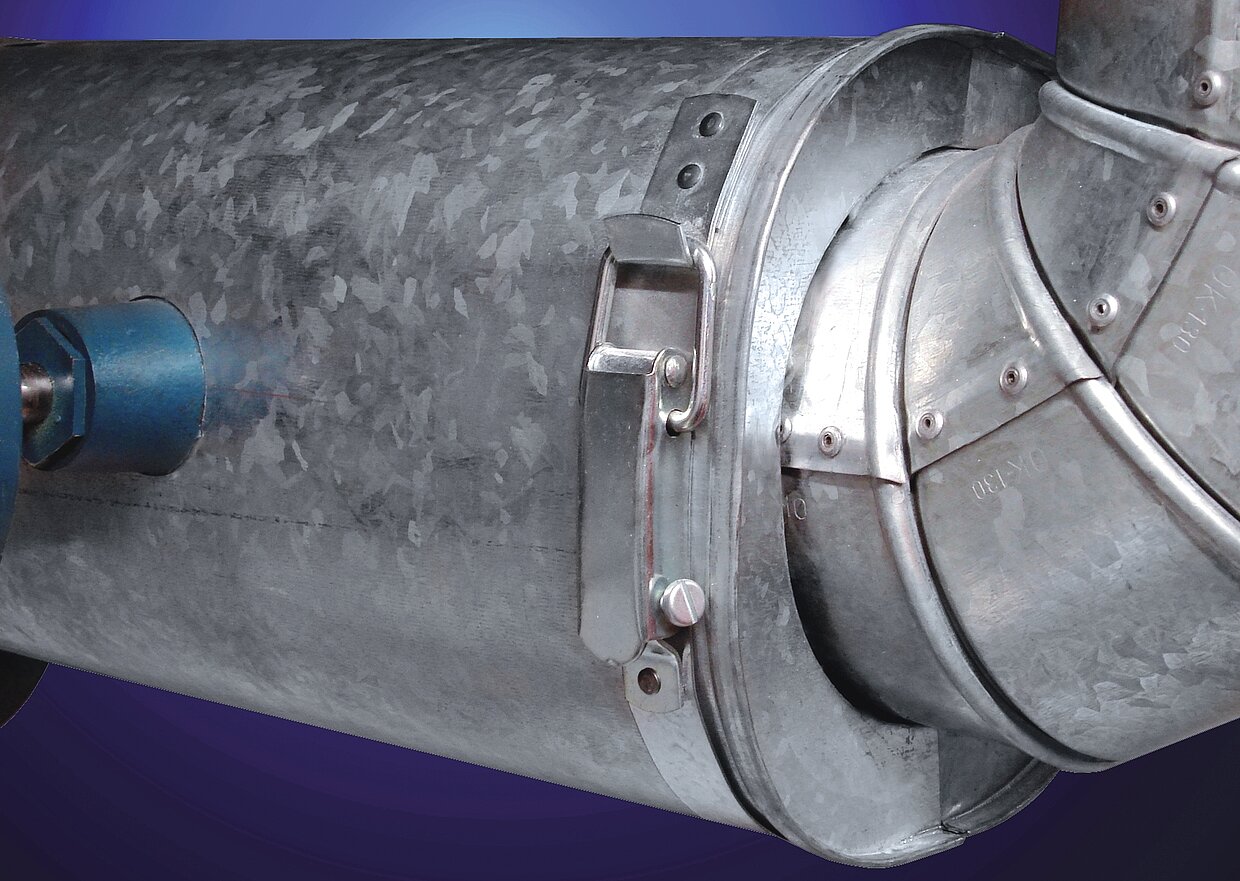

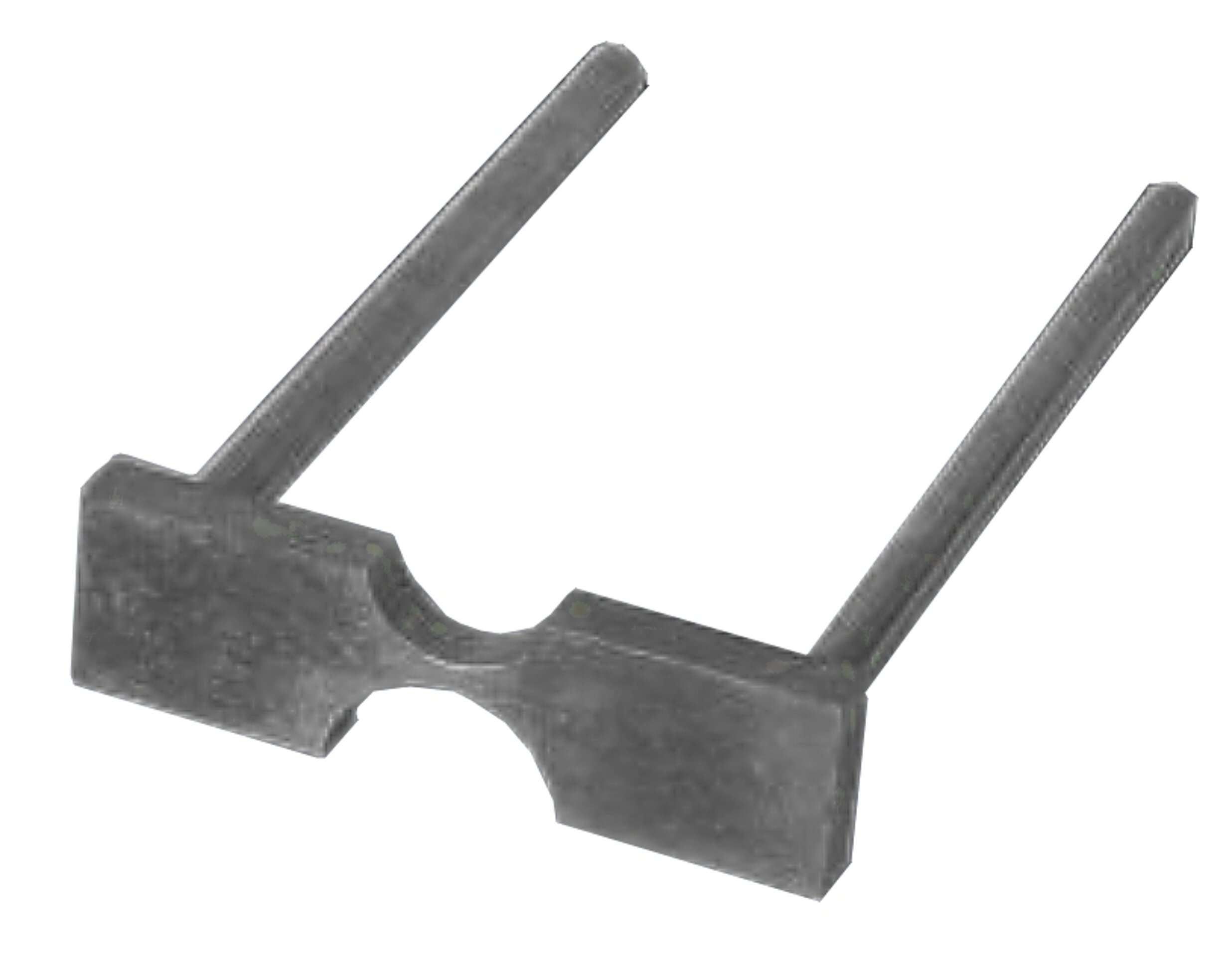

- Stop plate for insulating pipes

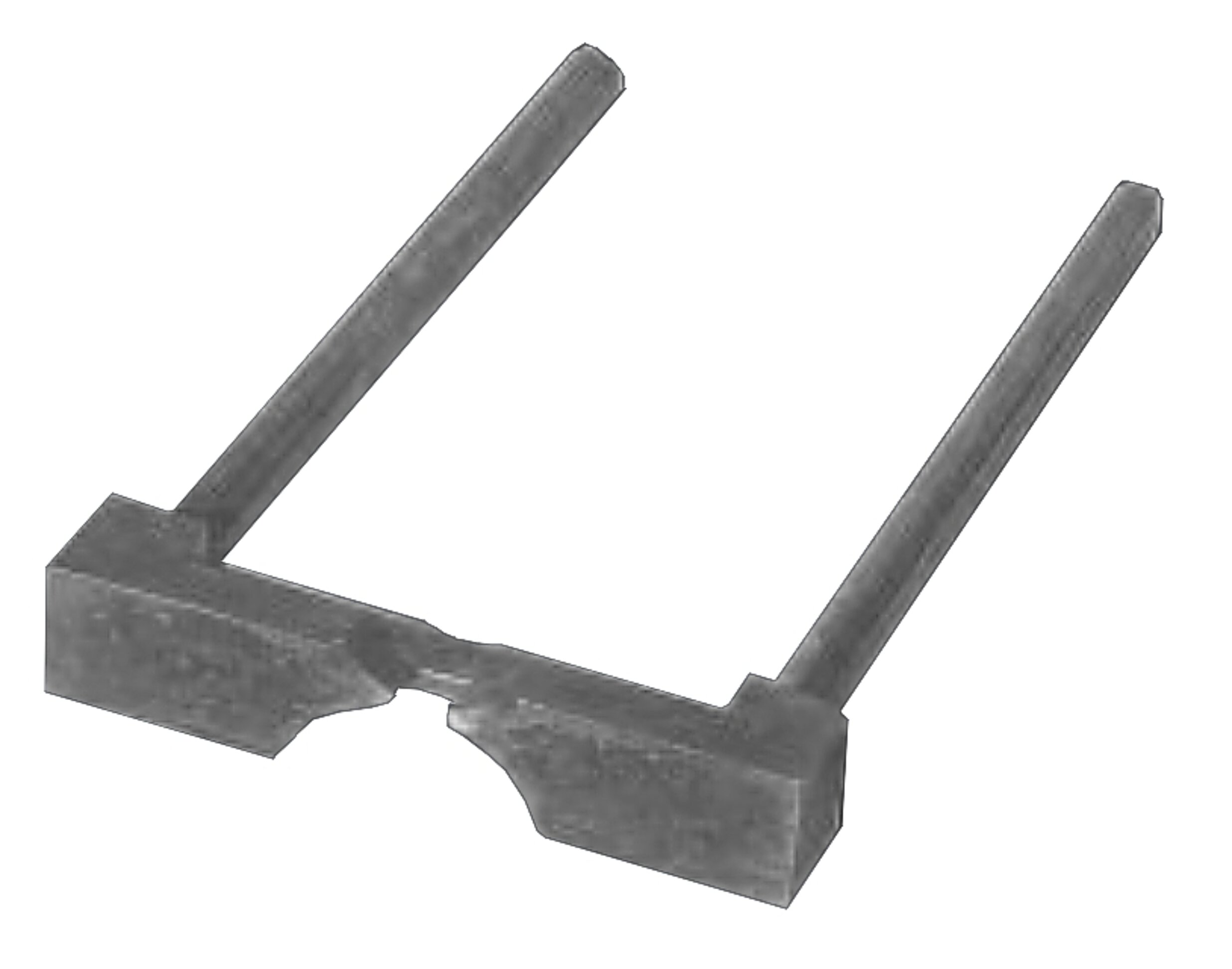

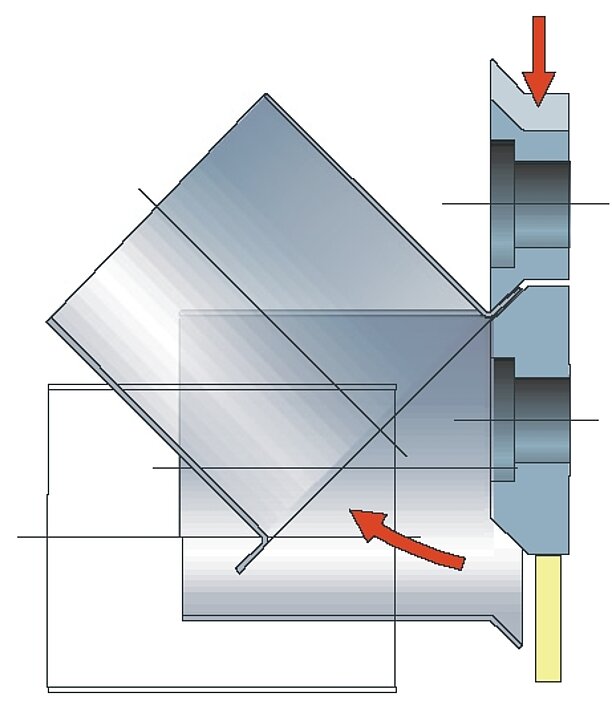

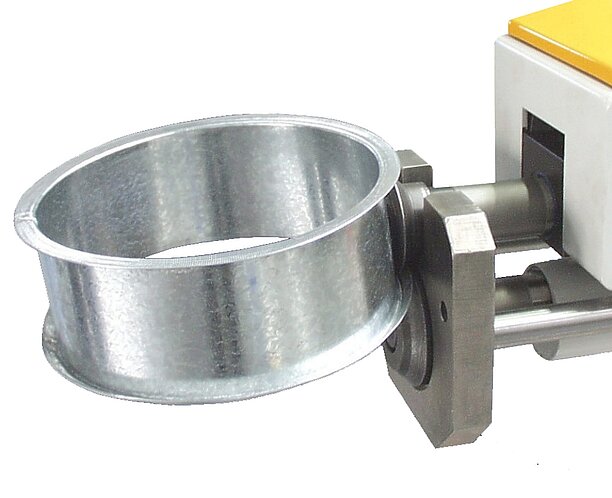

- Special stop plate for bevel flanging wheels BD

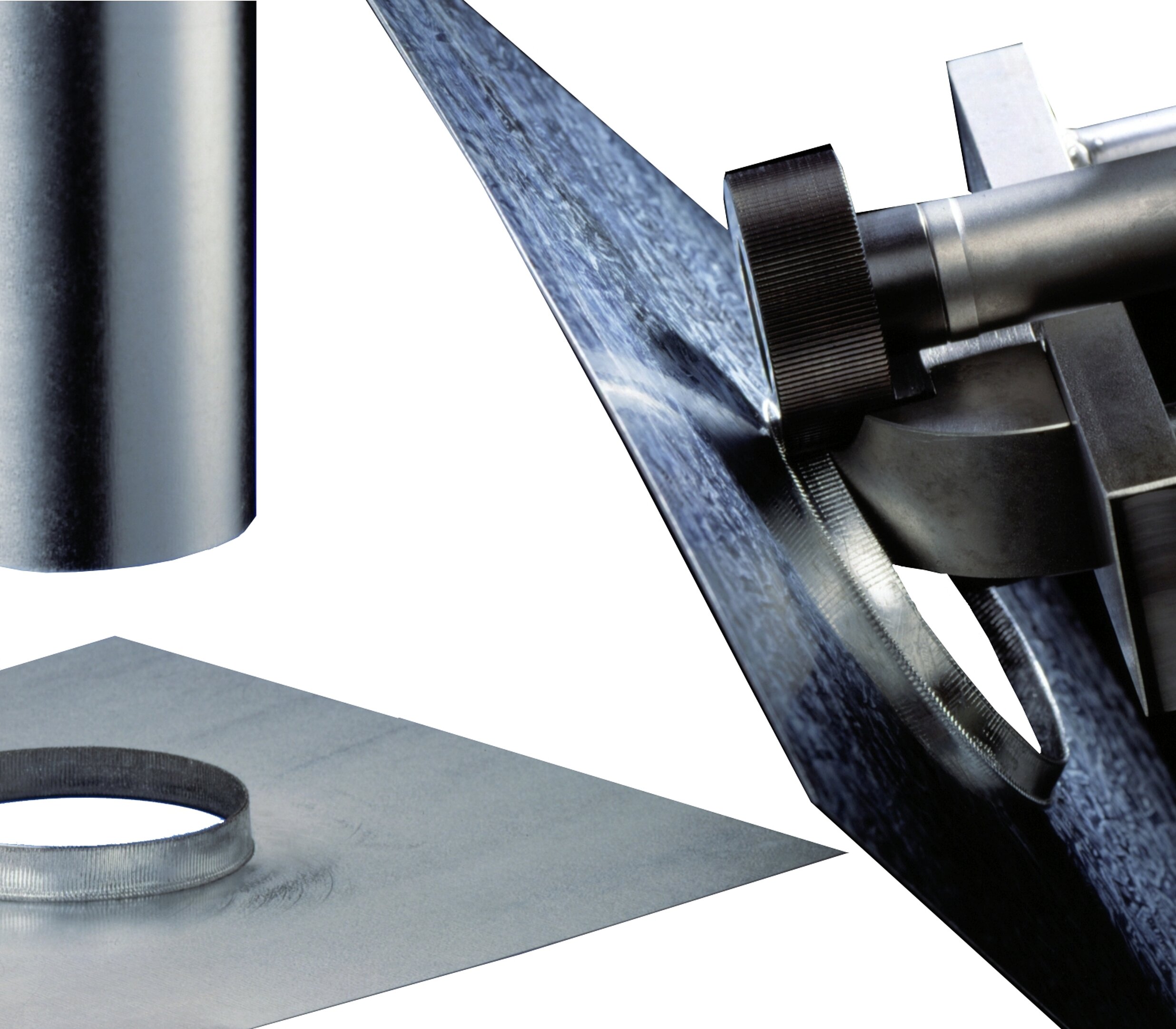

- Round stop for internal flanges on blanks
